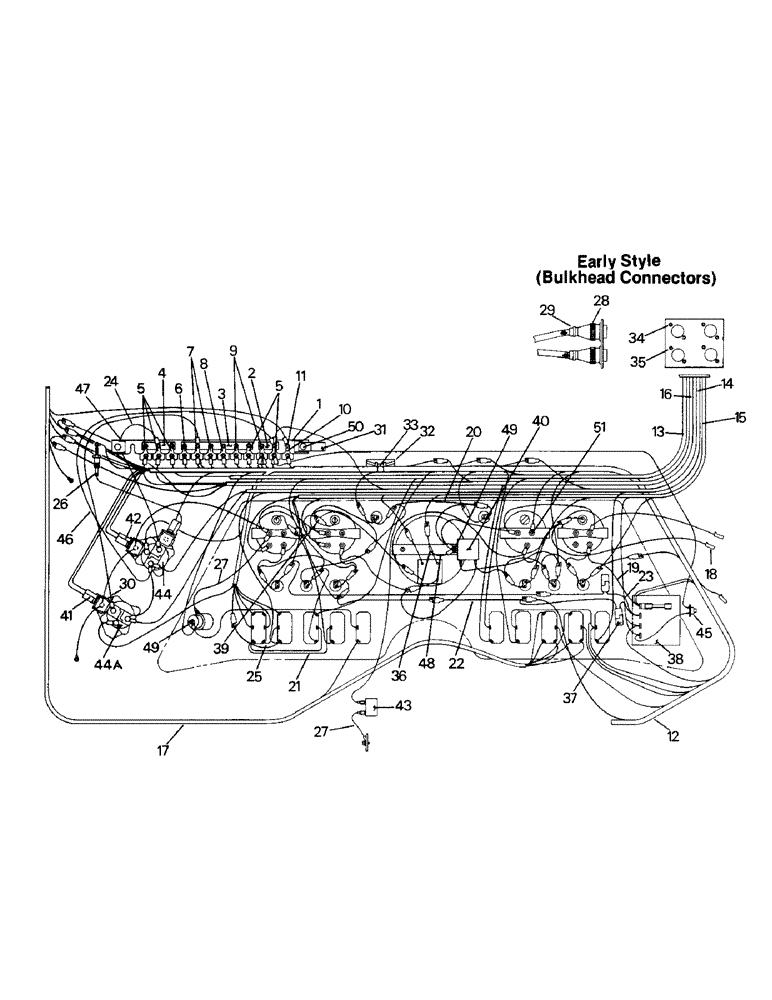

Запчасти Case IH ST325 (02-14) - DASH ELECTRICAL, FIRST BULKHEAD STYLE (06) - ELECTRICAL

22-678

BREAKER

Assembly, consists of Ref. 1-11

1шт.

1

22-674

BRACKET

13 Hole

1шт.

2

22-677

BAR

Buss Bar, 2 Hole

1шт.

3

22-675

BAR

Buss Bar, 6 Hole

1шт.

4

22-676

BREAKER

Buss Bar, 3 Hole

1шт.

5

22-671

BREAKER

15 Amp

5шт.

6

22-670

BREAKER

10 Amp

1шт.

7

22-669

BREAKER

6 Amp

2шт.

8

22-673

BREAKER

30 Amp

1шт.

9

22-672

BREAKER

20 Amp

2шт.

10

22-809

BREAKER

5 Amp

1шт.

11

19-481

SERRATED NUT

#10 NC

1шт.

12

22-763

HARNESS

Wire Harness, Instrument Harness

1шт.

13

22-760

HARNESS

Wire Harness, Front Frame (incl 28 & 29)

1шт.

14

22-758

HARNESS

Wire Harness, Engine Side 1 (incl 28 & 29)

1шт.

15

22-759

HARNESS

Wire Harness, Engine Side 2 (incl 28 & 29)

1шт.

16

22-761

HARNESS

Wire Harness, Rear Frame (incl 28 & 29)

1шт.

17

22-762

HARNESS

Wire Harness, Cab Console

1шт.

18

22-804

ELECTRICAL WIRE

Wire Assy, Dash Lights

1шт.

19

22-806

Wire Assy, Emergency Shut-Off

1шт.

20

22-1004

HARNESS

Wire Assy, Dash Gnd

1шт.

21

22-799

HARNESS

Wire Assy, Dimmer Switch

1шт.

22

22-829

DIODE

Wire Assy, Ignition to Murphy Relay (incl 37)

1шт.

23

22-828

Wire Assy, Oil Pressure Light (incl 37)

1шт.

24

22-797

HARNESS

Wire Assy, Circuit, Serial Range: Breaker-Solenoid

1шт.

25

22-795

HARNESS

Wire Assy, Serial Range: Master-F/R

1шт.

26

22-769

RECTIFIER

Assy

1шт.

27

22-802

CABLE

Wire Assy, Gnd

2шт.

28

22-780

COUNTER

Plug

4шт.

1-1632

ELEC. TERMINAL PIN,Male, 14 - 16

Male Terminal (14-16 ga.)

1шт.

1-4137

ELEC. TERMINAL PIN,8 - 10

Male Terminal (8-10 ga.)

1шт.

29

22-781

CLAMP

Plug Connector

4шт.

30

22-820

ELECTRICAL WIRE

Wire Assy, Circuit, Serial Range: Breaker-Solenoid

1шт.

31

22-646

CLAMP

1шт.

32

22-823

MOUNT

Mount, Cable Tie

8шт.

33

22-824

CABLE TIE,3/16" x 7 1/4"

STRAP, CABLE, 3/16" x 7 1/4"

8шт.

34

19-273

Machine Screw, #5 NC x 1/2 Slotted Flat Hd, #5-40 x 1/2", G5

8шт.

35

19-150

NUT,#5 - 40

#5 NC

8шт.

36

22-217

TUBE

Quick Splice

1шт.

37

22-738

DIODE

2шт.

38

29-27

SWITCH

Safety

1шт.

39

22-1001

LIGHT

Wire Assy, Gauge Lights

1шт.

40

22-690

BUZZER

1шт.

41

22-108

FLASHER UNIT

Flasher

3шт.

42

22-112

BRACKET

Flasher

3шт.

43

22-800

SWITCH

Park Brake (mounting hardware listed below)

1шт.

19-708

WASHER,#6

5/32

8шт.

19-1012

SCREW,Sl Pan Hd, #6 - 32 x 1 3/4", Gr 5

Machine Screw, #6 NC x 1-3/4

2шт.

19-1013

NUT

#6 NC

6шт.

44

22-792

SWITCH

Solenoid

1шт.

44a

20-1411T1

CONNECTION,ELECTRIC

Solenoid

1шт.

45

1-2386

SWITCH

Shut off (3406 Cat only)

1шт.

46

1-2665

Wire Assy, Circuit, Serial Range: Breaker-Solenoid

1шт.

47

22-816

BRACKET

Rectifier

1шт.

48

1-3841

Wire Assy, Tach Grd

1шт.

49

19-282

LOCK NUT

#8 NC

2шт.

50

19-417

BOLT,Hex, 1/4" - 20 x 0.50", Gr 5, Full Thd

Capscrew, 1/4 NC x 1/2

6шт.

51

19-308

NUT,#10 - 32

#10 NF

3шт.
