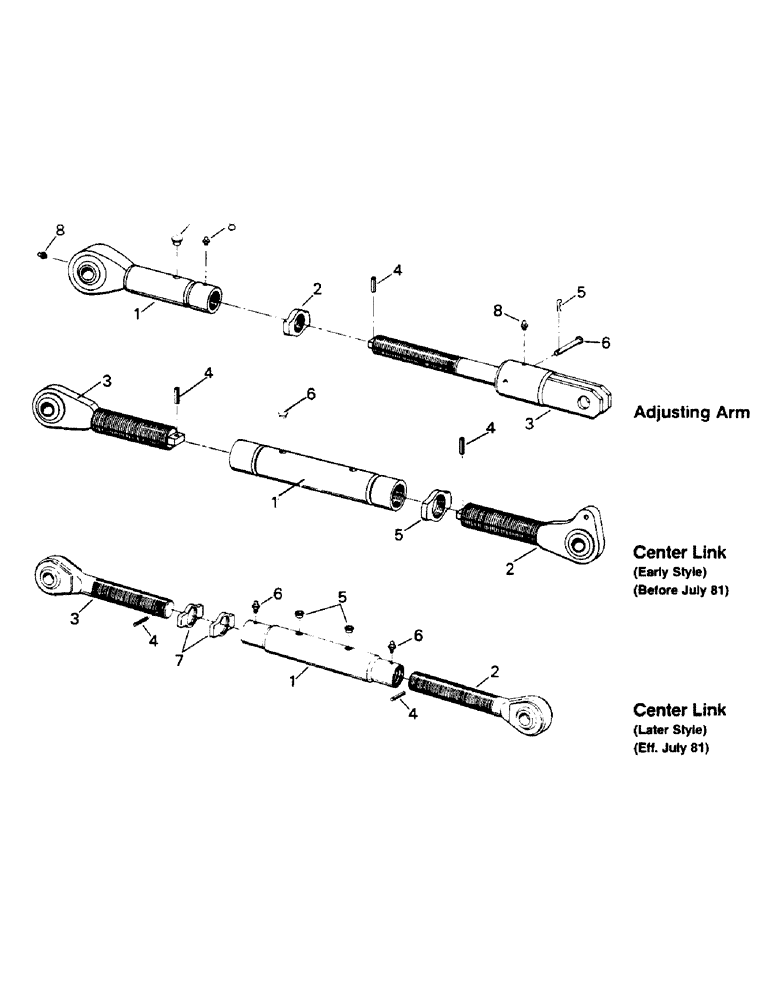

Запчасти Case IH ST325 (10-02) - 3-PT HITCH COMPONENTS (18) - MISCELLANEOUS

40-373T91

ARM ASSY.

Adjusting Arm Assy, consists of Ref. 1-8

2шт.

1

40-372

ARM

Adjusting Arm (Top Assy)

1шт.

2

40-109

LOCK NUT

1шт.

3

40-375T1

ARM ASSY.

Adjusting Arm (Bottom Assy)

1шт.

4

19-786

PIN

Coil Spring Pin

1шт.

5

19-358

PIN

Hair Pin

1шт.

6

40-322

PIN

Float Pin

1шт.

7

18-1292

PLUG

Plastic Tube

2шт.

8

80710

LUBE NIPPLE,1/8” – 27 Dryseal PTF

NIPPLE, LUBE, 1/8"-27 x .66 lg

3шт.

40-513

LINK

Center Link Assy (Early Style) (service w/later style), consists of Ref. 1-5

1шт.

1

40-219

LINK

Turnbuckle

1шт.

2

40-514

LINK

LH Thread

1шт.

3

40-113

LINK

RH Thread

1шт.

4

19-786

PIN

Coil Spring Pin

2шт.

5

40-109

LOCK NUT

RH

1шт.

6

18-1292

PLUG

Plastic

2шт.

70-1829T91

UPPER LINK

Center Link Assy (Later Style), consists of Ref. 1-7

1шт.

1

70-1832T2

PIPE

Tube

1шт.

2

70-1831T1

SOCKET

& Rod (RH)

1шт.

3

70-1830T1

SOCKET

& Rod (LH)

1шт.

4

19-175

LOCK PIN,1/4" x 2", Slotted

Pin, 1/4" x 2", Slotted

2шт.

5

1-9116

CAP,Cap, .366" OD

Closure, Plastic

4шт.

6

31-95

FITTING

Zerk

2шт.

7

2-3651T1

LOCK NUT

2шт.
