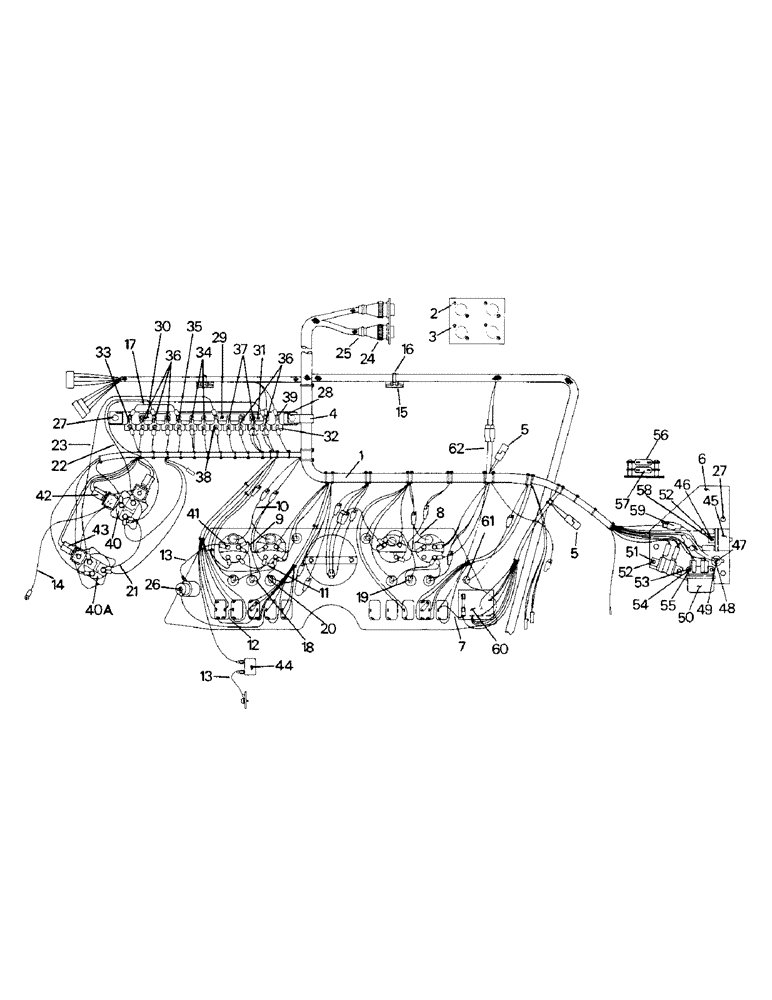

Запчасти Case IH ST325 (02-16) - DASH ELECTRICAL, SECOND BULKHEAD STYLE (06) - ELECTRICAL

1

1-3920

HARNESS

Cab & Instrument

1шт.

Superseded, Old P/N CAN be used on all models prior to S/N break. New P/N will fit models after the S/N break only.

1шт.

2

19-273

Screw, #5 NC x 1/2 Slotted Flat Hd, #5-40 x 1/2", G5

8шт.

3

19-150

NUT,#5 - 40

#5 NC

8шт.

4

22-646

CLAMP

1шт.

5

22-738

DIODE

2шт.

6

1-3864

LARGE PLATE

Bracket, Component mtg

1шт.

7

1-3936

Wire Assy, Murphy Relay to Starter Switch (ST 250 & ST 270 only)

1шт.

8

1-3926

SOCKET

Wire & Socket Assy Voltmeter & Hourmeter

1шт.

9

1-3934

HARNESS

Wire Assy, Gauge Gnd to Gauge Gnd

2шт.

10

1-3925

SOCKET

Wire & Socket Assy, Water Temp & Oil Press.

1шт.

11

1-3933

HARNESS

Wire Assy, Gauge to Gauge Ign

1шт.

12

22-795

HARNESS

Wire Assy, Serial Range: Master-F/R

1шт.

13

22-802

CABLE

Wire Assy, Gnd

2шт.

14

1-3927

HARNESS

Wire Assy, Solenoid Gnd

1шт.

15

22-823

MOUNT

Mount, Cable Tie

2шт.

16

22-824

CABLE TIE,3/16" x 7 1/4"

STRAP, CABLE, 3/16" x 7 1/4"

2шт.

17

1-3932

HARNESS

Wire Assy, Circuit Breaker

1шт.

18

1-3928

SOCKET

Wire & Socket Assy, Hi Beam

1шт.

19

1-3929

SOCKET

Wire & Socket Assy, Trans Temp & Park Brake

1шт.

20

1-3930

SOCKET

Wire & Socket Assy, Water Temp & Oil Press

1шт.

21

1-2665

Wire Assy, Circuit, Serial Range: Breaker-Solenoid

1шт.

22

22-797

HARNESS

Wire Assy, Circuit, Serial Range: Breaker-Solenoid

1шт.

23

22-820

ELECTRICAL WIRE

Wire Assy, Circuit, Serial Range: Breaker-Solenoid

1шт.

24

22-780

COUNTER

Plug

4шт.

1-1632

ELEC. TERMINAL PIN,Male, 14 - 16

Male Terminal (14-16 ga)

1шт.

1-4137

ELEC. TERMINAL PIN,8 - 10

Male Terminal (8-10 ga)

1шт.

25

22-781

CLAMP

Plug Connector

4шт.

26

19-282

LOCK NUT

#8 NC

1шт.

27

19-417

BOLT,Hex, 1/4" - 20 x 0.50", Gr 5, Full Thd

Capscrew, 1/4 x 1/2 UNC

9шт.

22-678

BREAKER

Assy, consists of Ref. 28-39

1шт.

28

22-674

BRACKET

13 Hole

1шт.

29

22-675

BAR

Buss Bar, 6 Hole

1шт.

30

22-676

BREAKER

Buss Bar, 3 Hole

1шт.

31

22-677

BAR

Buss Bar, 2 Hole

1шт.

32

22-809

BREAKER

5 Amp

1шт.

33

1-3856

BREAKER

5 Amp (not in assy)

1шт.

34

22-669

BREAKER

6 Amp

2шт.

35

22-670

BREAKER

10 Amp

1шт.

36

22-671

BREAKER

15 Amp

5шт.

37

22-672

BREAKER

20 Amp

2шт.

38

22-673

BREAKER

30 Amp

1шт.

39

19-481

SERRATED NUT

#10 NC

1шт.

40

22-792

SWITCH

Solenoid

1шт.

40a

20-1411T1

CONNECTION,ELECTRIC

Solenoid

1шт.

41

19-308

NUT,#10 - 32

#10 NF

6шт.

42

22-108

FLASHER UNIT

Flasher

3шт.

43

22-112

BRACKET

Flasher

3шт.

44

22-800

SWITCH

Park brake (mt hdwr listed below)

1шт.

19-708

WASHER,#6

5/32

8шт.

19-1012

SCREW,Sl Pan Hd, #6 - 32 x 1 3/4", Gr 5

Machine Screw, #6 NC x 1-3/4

2шт.

19-1013

NUT

#6 UNC

6шт.

1-3865

PLATE

Component Assy, consists of Ref. 45-59

1шт.

45

22-690

BUZZER

1шт.

46

19-5390

Machine Screw, #8 NC x 1/2

1шт.

47

1-3862

RECTIFIER

Assy

1шт.

48

1-3859

INSULATOR

Rectifier

1шт.

49

19-5379

NUT

1шт.

50

1-3861

RELAY

1шт.

51

19-3041

SCREW,Hex Flg, #8 - 32 x 1 1/2", Gr 2

#8 NC x 1-1/2

2шт.

52

193-1002

NUT,Keps, #8 - 32, w/ Ext Tooth LW

#8 NC

3шт.

53

19-5391

SCREW,Hex Flg, 1/4" - 20 x 1/2"

1/4 NC x 1/2

2шт.

54

19-115

LOCK WASHER,1/4"

1/4"

2шт.

55

19-76

NUT,1/4"-20, G5

1/4

2шт.

56

1-3858

RESISTOR

5 Ohm

1шт.

57

1-3857

RESISTOR

2 Ohm

1шт.

58

19-5378

WASHER

#8

1шт.

59

1-3860

ELECTRICAL WIRE

Wire Assy, Rectifier

1шт.

60

29-27

SWITCH

Safety

1шт.

61

1-3863

SWITCH

Shut Off (3406 Cat Engine)

1шт.

62

1-3935

Wire Assy, Harness to Start Switch (ST 220, ST 251, ST 310, ST 320 & ST 325)

1шт.
