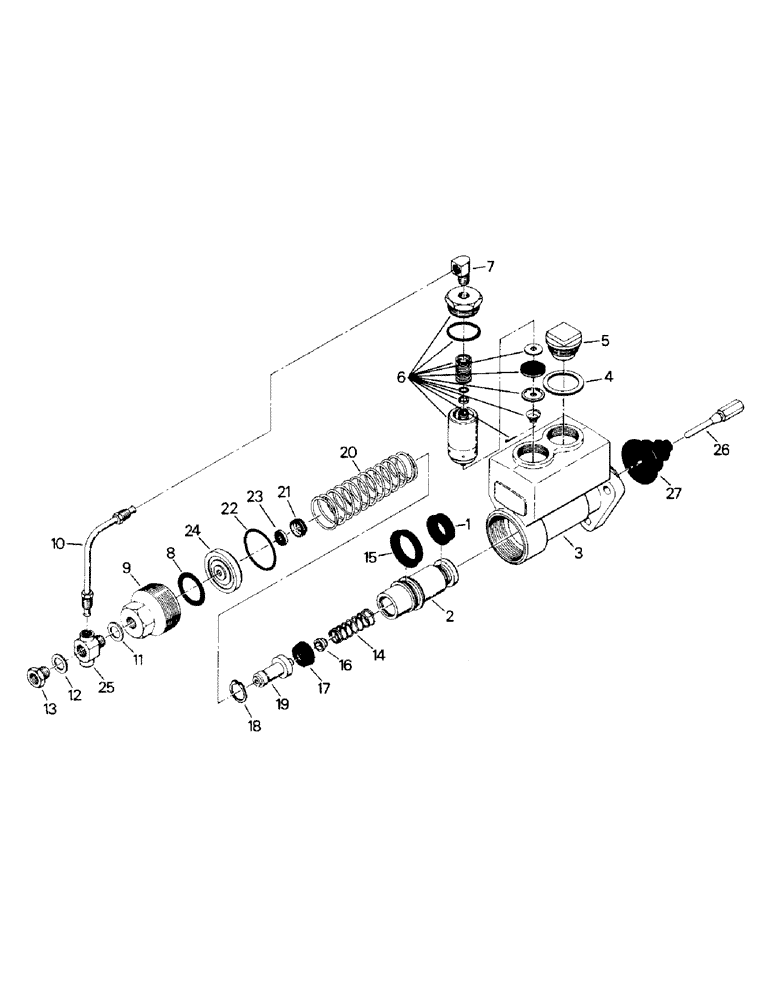

Запчасти Case IH ST320 (05-09) - BRAKE MASTER CYLINDER ASSEMBLY, WITH STATIONARY TRANSFER CASE, ASN 2000 (5.1) - BRAKES

60-2821T91

MASTER CYLINDER

Brake Master Cylinder Assy, Incl 1 - 27

1шт.

2-6646T1

PACKAGE, REPAIR

Repair Kit, Incl 1, 4, 6, 8, 11, 12, 15, 17, 18, 21, 22, 23, 27

1шт.

1

NSS

NOT SOLD SEPARAT

Cup

1шт.

2

NSS

NOT SOLD SEPARAT

Piston

1шт.

3

NSS

NOT SOLD SEPARAT

Housing

1шт.

4

2-1206

GASKET

1шт.

5

2-1210T1

FILLER CAP

Filler Plug

1шт.

6

NSS

NOT SOLD SEPARAT

Relief Valve Assy

1шт.

7

2-6647T1

ELBOW

1шт.

8

NSS

NOT SOLD SEPARAT

Seal

1шт.

9

2-6648T91

CAP

End Plug

1шт.

10

2-6649T1

TUBE

Tubing

1шт.

11

NSS

NOT SOLD SEPARAT

Gasket

1шт.

12

NSS

NOT SOLD SEPARAT

Gasket

1шт.

13

2-6650T1

FITTING

Adapter

1шт.

14

NSS

NOT SOLD SEPARAT

Spring

1шт.

15

NSS

NOT SOLD SEPARAT

Cup

1шт.

16

NSS

NOT SOLD SEPARAT

Retainer

1шт.

17

NSS

NOT SOLD SEPARAT

Cup

1шт.

18

NSS

NOT SOLD SEPARAT

Retaining Plug

1шт.

19

NSS

NOT SOLD SEPARAT

Piston

1шт.

20

NSS

NOT SOLD SEPARAT

Spring

1шт.

21

NSS

NOT SOLD SEPARAT

Retainer

1шт.

22

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

23

NSS

NOT SOLD SEPARAT

Seat

1шт.

24

NSS

NOT SOLD SEPARAT

Retainer

1шт.

25

2-6651T1

FITTING

Block

1шт.

26

2-6652T1

THREADED ROD

Push Rod

1шт.

27

NSS

NOT SOLD SEPARAT

Boot

1шт.
