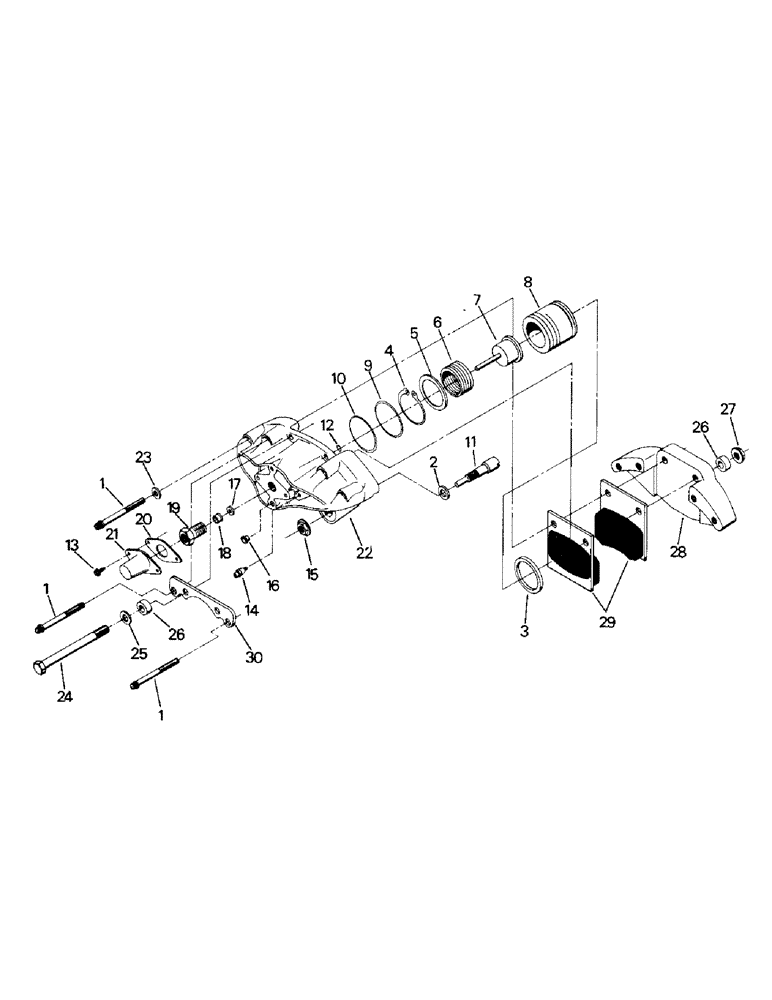

Запчасти Case IH ST320 (05-02) - HYDRAULIC BRAKE ASSEMBLY, WITH SINGLE SPEED TRANSFER CASE) (5.1) - BRAKES

1-6046

BRAKE

Assembly, consists of Refs. 1-30

1шт.

1

19-919

SCREW,12 Pt Flg, 3/8" - 16 x 3 1/2", Gr 8

Brake Assy (Fig. 5-2)

4шт.

33-140

HOUSING ASSY.

Piston Side Assy, consists of Refs. 2-22

1шт.

2

19-917

WASHER

2шт.

3

33-72

BOOT

1шт.

33-87

PISTON ASSY.

Piston Assy, consists of Refs. 4-8

1шт.

4

33-127

RING, SNAP

Snap Ring

1шт.

5

33-128

WASHER

1шт.

6

33-129

SPRING

1шт.

7

33-130

PIN

Retractor Pin

1шт.

8

33-131

PISTON

1шт.

9

33-133

OIL SEAL

Ring

1шт.

10

33-74

O-RING

1шт.

11

1-5553

STUD

2шт.

12

33-88

O-RING

1шт.

13

281-1458

SELF-TAP SCREW,Hex Wash Hd, #10 x 1/2"

Screw, Tapping

2шт.

14

33-136

FITTING

3шт.

15

19-920

NUT

2шт.

16

33-137

PLUG

1шт.

17

33-134

WASHER

1шт.

18

33-77

COLLAR

Collet

1шт.

19

33-79

NUT

1шт.

20

33-76

GASKET

1шт.

21

33-78

COVER

1шт.

22

NSS

NOT SOLD SEPARAT

Housing

1шт.

23

33-85

SPECIAL WASHER

2шт.

24

1-2882

BOLT

Pin

2шт.

25

1-2883

WASHER

2шт.

26

1-2884

BUSHING

4шт.

27

473371R1

FLANGE NUT

Nut

2шт.

28

1-2880

CARRIER

Side (33-139)

1шт.

Superseded - Old P/N is not used any longer, the new P/N is to be used in ALL cases. Old P/N should be removed from existing inventory. It is recommended that the old part not be used under any circumstances.

1шт.

29

1-6047

HOLDER

Pad & Holder (01-1074)

2шт.

Superseded - Old P/N is not used any longer, the new P/N is to be used in ALL cases. Old P/N should be removed from existing inventory. It is recommended that the old part not be used under any circumstances.

1шт.

30

1-2885

PLATE

Bridge

1шт.
