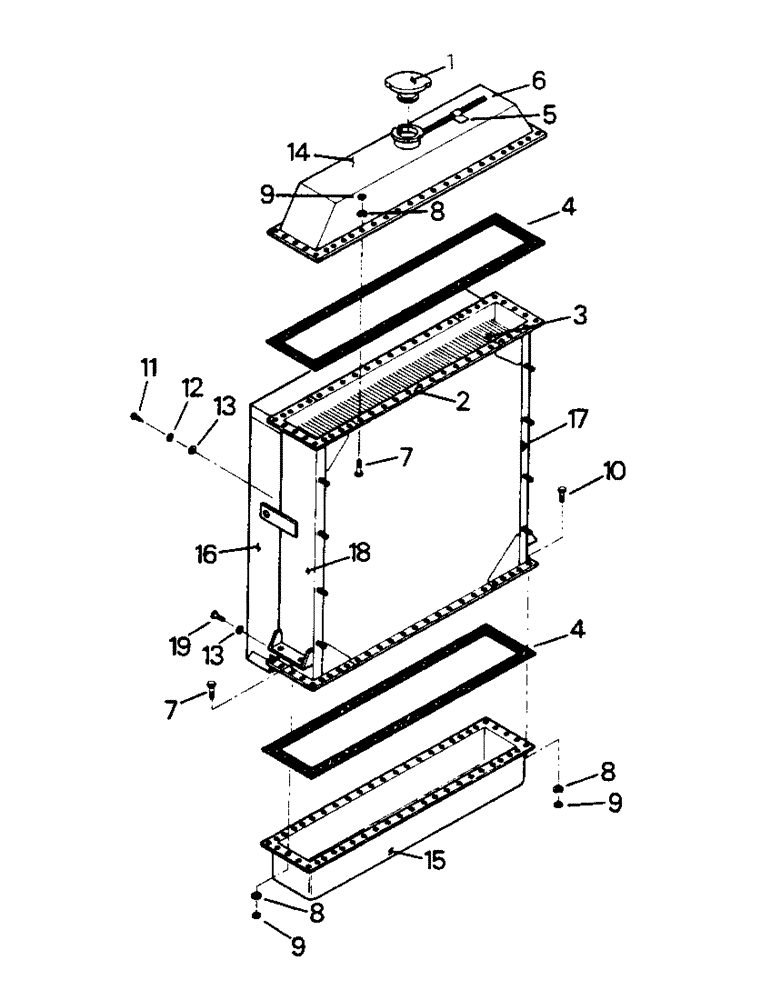

Запчасти Case IH ST280 (04-19) - RADIATOR AND PARTS, ALL EXCEPT ST 220, ST 251, AND EARLY ST 250 AND ST 270 (04) - Drive Train

1-7039T91

RADIATOR

(3306 w/26" Fan), consists of Ref. 1-19

1шт.

For 01-7039T91, Use 90-4292T91, Order Primes

1шт.

90-2343T91

Radiator (3306 w/30" Fan), consists of Ref. 1-19

1шт.

1-7036T91

RADIATOR

(855), consists of Ref. 1-19

1шт.

1-7037T91

Radiator (903), consists of Ref. 1-19

1шт.

1-7038T91

RADIATOR

(3406), consists of Ref. 1-19

1шт.

1

10-21

CAP

1шт.

2

90-1530T1

BAR

Header Bar (01-2600)

4шт.

Superseded - Old P/N can be used for all models, but order new P/N when stock is depleted.

1шт.

3

1-2589

RADIATOR

Core

1шт.

4

1-2599

GASKET

2шт.

5

31-2173

CLIP

3шт.

6

31-1260

HOSE,0.25" ID x 57.00"

Overflow 0.25" ID x 57.00"

1шт.

7

19-7

BOLT,Hex, 5/16" - 18 x 1", Gr 5

Capscrew, 5/16 NC x 1

92шт.

8

19-116

LOCK WASHER,5/16"

5/16"

100шт.

9

19-7

BOLT,Hex, 5/16" - 18 x 1", Gr 5

Nut, 5/16 NC

100шт.

10

19-234

BOLT,Hex, 5/16" - 18 x 1 1/4", Gr 5

Capscrew, 5/16 NC x 1-1/4

8шт.

11

281-13712

SELF-TAP SCREW,Hex Wash Hd, 1/4" x 3/4"

Tap Screw, 1/4 NC x 3/4

10шт.

12

19-115

LOCK WASHER,1/4"

1/4"

10шт.

13

19-223

WASHER,1/4"

1/4

12шт.

14

1-6979

Top Tank (3306 w/26" Fan)

1шт.

90-2342T1

Top Tank (3306 w/30" Fan)

1шт.

1-2586

Top Tank (855)

1шт.

1-2587

Top Tank (903)

1шт.

1-2588

TANK

Top Tank (3406)

1шт.

15

1-6973

TANK

Bottom Tank (3306)

1шт.

1-2590

Bottom Tank (855)

1шт.

1-2591

Bottom Tank (903)

1шт.

1-2592

TANK

Bottom Tank (3406)

1шт.

16

1-7005

SHROUD

(3306 w/26" Fan)

1шт.

90-2340T2

Shroud (3306 w/30" Fan)

1шт.

1-2597

Shroud (855 & 903)

1шт.

1-2598

Shoud (3406)

1шт.

17

1-2595T1

FUNNEL

Side Member, LH (3306 & 903)

1шт.

1-2596T1

FUNNEL

Side Member, LH (855 & 3406)

1шт.

18

1-2593T1

FUNNEL

Side Member, RH (3306 & 903)

1шт.

1-2594T1

FUNNEL

Side Member, RH (855 & 3406)

1шт.

19

19-717

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

Capscrew, 1/4 NC x 5/8

2шт.
