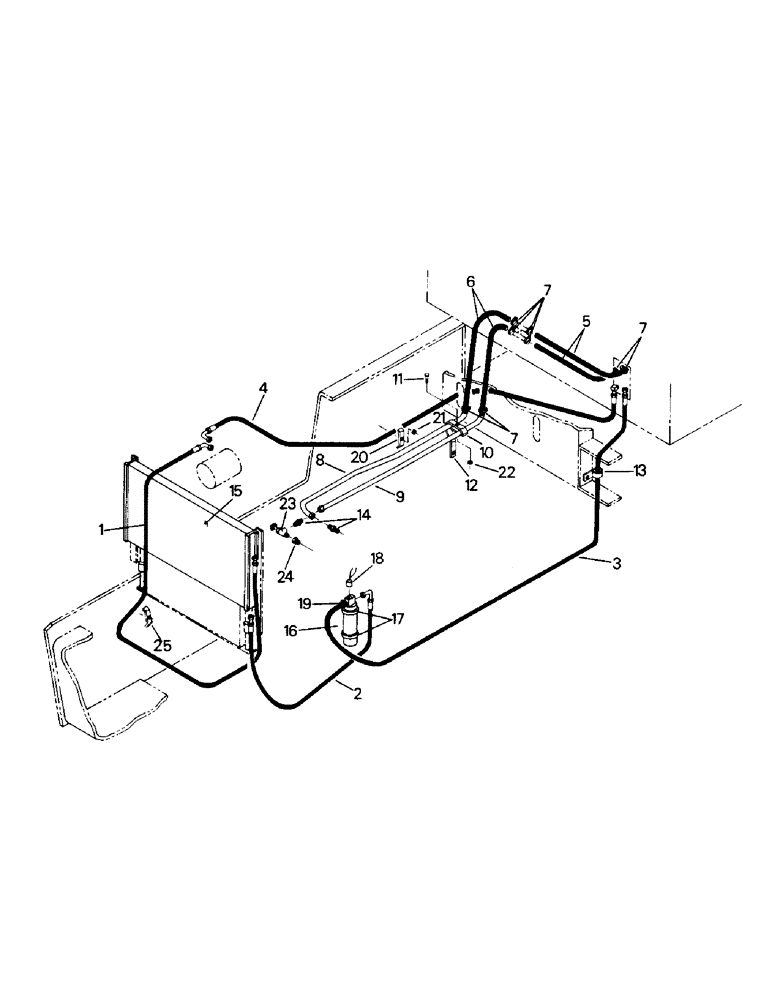

Запчасти Case IH ST280 (03-10) - A/C AND HEATER PLUMBING, 3406 CAT, EARLY STYLE (03) - Climate Control

1

25-380

HOSE

1шт.

2

25-381

A/C HOSE

Hose

1шт.

3

25-382

A/C HOSE

Hose

1шт.

4

25-1028

A/C HOSE

Hose

1шт.

5

25-332

HEATER HOSE

2шт.

6

32-333

HOSE

2шт.

7

25-285

SQUARE NUT,Sq, 5/16"-18

Clamp

8шт.

8

25-1026

Tube

1шт.

9

25-1025

Tube 0.625" OD, 39, 4" Length

1шт.

1-6867

Tube (used only with Truck Valve (Ref. 23) 0.625" OD

1шт.

10

32-1000

CLAMP

1шт.

11

19-550

BOLT,Hex, M16 x 35mm, Cl 10.9

Capscrew, 1/4 NC x 1-1/2

1шт.

12

25-1027

Bracket

1шт.

13

22-632

CLIP

Clamp

1шт.

14

31-411

HYD CONNECTOR,7/8"-14, 37 Degree x 3/4"-14, NPTF

Adapter

2шт.

15

25-196

Condenser 3/8"-24, G5, Thk

1шт.

2-3370T1

CONDENSER

(interchangeable w/25-196)

1шт.

16

1-7778

AIR CONDITIONER

Receiver Drier

1шт.

On early models with the Receiver Drier mounted on the frame, Drier P/N 25-195 was used. When ordering a replacement, order the new style (Ref. 16) and two brackets (Ref. 17 P/N 01-8563) to assure proper mounting.

1шт.

17

25-46

CLAMP

(used only with Drier P/N 25-195)

2шт.

1-8563

CLAMP BRACKET

Bracket

1шт.

On early models with the Receiver Drier mounted on the frame, Drier P/N 25-195 was used. When ordering a replacement, order the new style (Ref. 16) and two brackets (Ref. 17 P/N 01-8563) to assure proper mounting.

1шт.

18

25-1002

SWITCH

(Low Pressure)

1шт.

19

32-29

HOSE CLAMP

Clamp

1шт.

20

51-243

HOLDER

Clamp

2шт.

21

19-78

SPECIAL NUT,3/8"-16, G5

3/8 NC

2шт.

22

19-76

NUT,1/4"-20, G5

1/4 NC

1шт.

23

31-1275

SHUT-OFF VALVE

Valve, Truck

1шт.

24

31-13

BUSHING

(used only with Truck Valve (Ref. 23)

1шт.

25

51-243

HOLDER

Clamp

1шт.
