Запчасти Case IH ST280 (03-08) - A/C AND HEATER PLUMBING, 903 CUMMINS, EARLY STYLE (03) - Climate Control

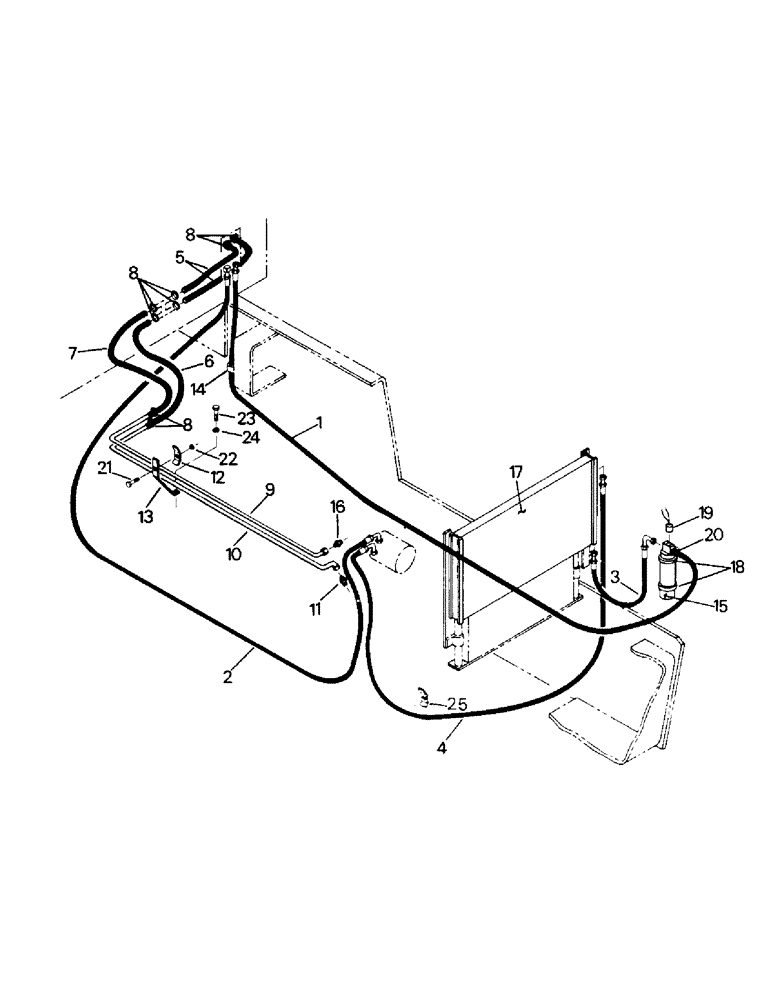

Схема запчастей Case IH ST280 - (03-08) - A/C AND HEATER PLUMBING, 903 CUMMINS, EARLY STYLE (03) - Climate Control
25
14
7
17
9
3
8
23
1
18
13
11
19
2
24
4
10
8
15
6
21
12
20
16
5
22
8

Артикул

Название

Примечание

Количество

25-402

KIT

Hose Kit, consists of Ref. 1-4

1шт.

1

25-382

A/C HOSE

Hose

1шт.

2

25-1028

A/C HOSE

Hose

1шт.

3

25-397

HOSE

1шт.

4

25-398

HOSE ASSY.

Hose

1шт.

5

25-332

HEATER HOSE

2шт.

6

32-331

Hose

1шт.

7

32-332

HOSE

1шт.

8

25-285

SQUARE NUT,Sq, 5/16"-18

Clamp

8шт.

9

25-390

Tube

1шт.

10

25-391

Tube

1шт.

11

31-449

HYD CONNECTOR,7/8"-14, 37 Degree x 1/2"-14, NPTF

Fitting

1шт.

12

32-1000

CLAMP

2шт.

13

25-394

Bracket

2шт.

14

32-632

COTTER PIN,3/32" x 2"

Clamp

1шт.

15

1-7778

AIR CONDITIONER

Receiver Drier

1шт.

On early models with the Receiver Drier mounted on the frame, Drier P/N 25-195 was used. When ordering a replacement, order the new style (Ref. 15) and two brackets (Ref. 17 P/N 01-8563) to assure proper mounting.

1шт.

16

31-441

Fitting

1шт.

17

25-196

Condenser 3/8"-24, G5, Thk

1шт.

2-3370T1

CONDENSER

(interchangeable w/25-196)

1шт.

18

25-46

CLAMP

(used only with Drier P/N 25-195)

2шт.

1-8563

CLAMP BRACKET

Bracket (see Note)

1шт.

19

25-1002

SWITCH

(Low Pressure)

1шт.

20

32-29

HOSE CLAMP

Clamp

1шт.

21

19-550

BOLT,Hex, M16 x 35mm, Cl 10.9

Capscrew, 1/4 NC x 1-1/2

2шт.

22

280129

NUT,1/4"-20

1/4 NC

2шт.

23

19-821

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 8, Full Thd

Capscrew, 1/2 NC x 1-1/4

2шт.

24

19-119

LOCK WASHER,1/2"

1/2"

2шт.

25

51-243

HOLDER

Clamp

1шт.
