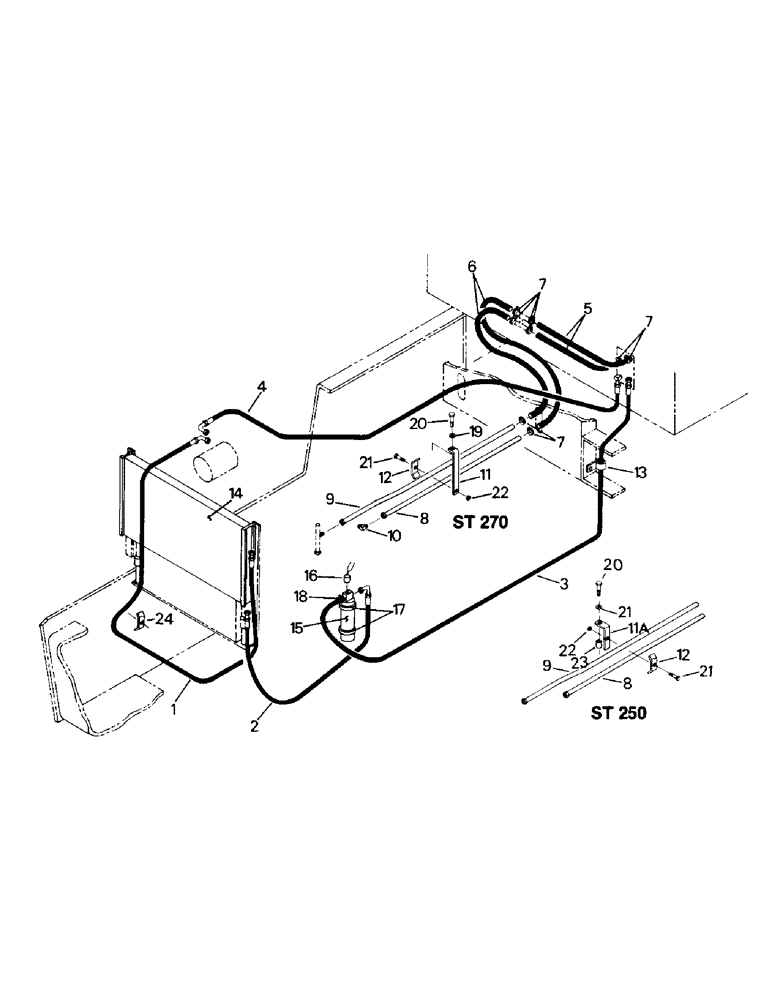

Запчасти Case IH ST280 (03-06) - A/C AND HEATER PLUMBING, 3306 ENGINE, EARLY STYLE (03) - Climate Control

25-400

HOSE

Kit, consists of Ref. 1-4

1шт.

1

25-380

HOSE

1шт.

2

25-397

HOSE

1шт.

3

25-382

A/C HOSE

Hose

1шт.

4

25-383

A/C HOSE

Hose

1шт.

5

25-332

HEATER HOSE

2шт.

6

32-333

HOSE

2шт.

7

25-285

SQUARE NUT,Sq, 5/16"-18

Clamp

8шт.

8

25-378

HEATER TUBE,0.625" OD, 32" Length

Tube

1шт.

9

25-379

HEATER TUBE,0.625" OD, 42, 0.81" Length

Tube

1шт.

10

31-1000

TEE

Elbow

1шт.

11

25-393

Bracket

1шт.

11a

25-1001

Bracket

1шт.

12

32-1000

CLAMP

1шт.

13

22-632

CLIP

Clamp

1шт.

14

25-196

Condenser 3/8"-24, G5, Thk

1шт.

2-3370T1

CONDENSER

(interchangeable w/25-196)

1шт.

15

1-7778

AIR CONDITIONER

Receiver Drier

1шт.

On early models with the Receiver Drier mounted on the frame, Drier P/N 25-195 was used. When ordering a replacement, order the new style (Ref. 15) and two brackets (Ref. 17 P/N 01-8563) to assure proper mounting.

1шт.

16

25-1002

SWITCH

(Low Pressure)

1шт.

17

25-46

CLAMP

(used only with Drier P/N 25-195)

2шт.

1-8563

CLAMP BRACKET

Bracket

1шт.

On early models with the Receiver Drier mounted on the frame, Drier P/N 25-195 was used. When ordering a replacement, order the new style (Ref. 15) and two brackets (Ref. 17 P/N 01-8563) to assure proper mounting.

1шт.

18

32-29

HOSE CLAMP

Clamp

1шт.

19

19-117

LOCK WASHER,3/8"

3/8"

1шт.

20

19-14

BOLT,Hex, 3/8" - 24 x 2", Gr 5

Capscrew, 3/8 NF x 2

1шт.

21

19-550

BOLT,Hex, M16 x 35mm, Cl 10.9

Capscrew, 1/4 NC x 1-1/2

1шт.

22

280129

NUT,1/4"-20

1/4 NC

1шт.

23

1-483

Tube (ST 250 only) 0.75" ID, 0.438" OD, 1.12" Length

1шт.

24

51-243

HOLDER

Clamp

1шт.
