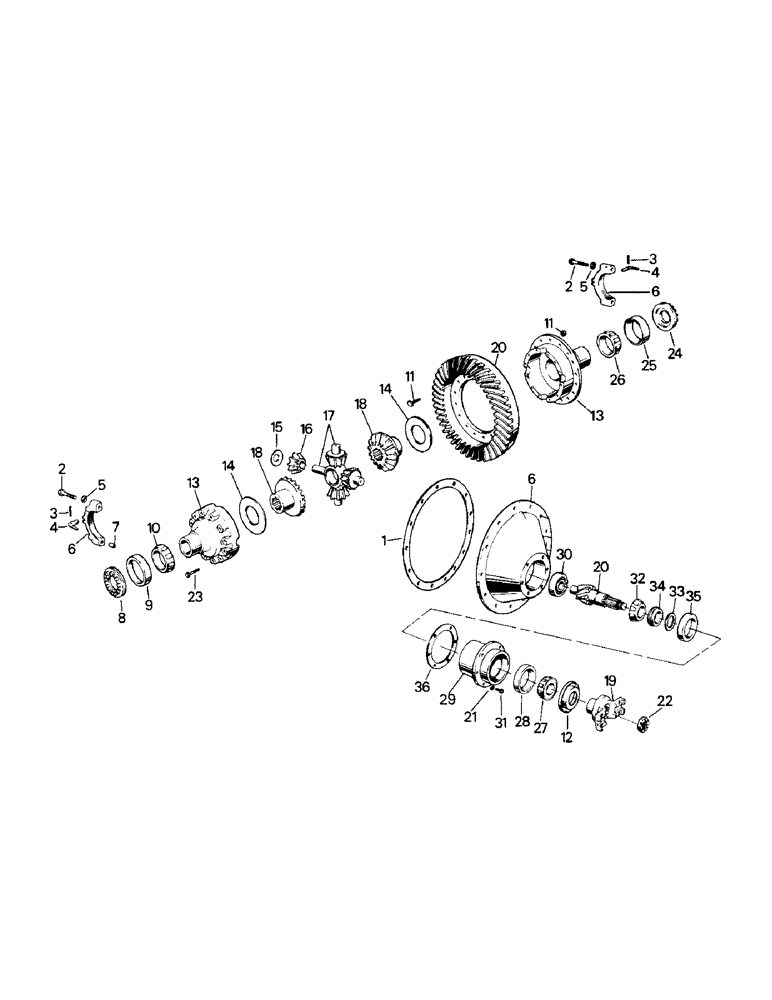

Запчасти Case IH ST220 (04-49) - DIFFERENTIAL AND CARRIER ASSEMBLY, A305 AND S-34 AXLES (04) - Drive Train
№
Артикул
Название
Примечание
Количество
1
16-46
SCREW
Gasket (use RTV Sealant)
1шт.
2
16-24
Capscrew
4шт.
3
16-25
PIN, SPLIT (COTTER)
Cotter
2шт.
4
16-26
LOCK
Adjuster
2шт.
5
16-64
WASHER
4шт.
6
16-27
Carrier w/caps (incl 2, 5 & 7)
1шт.
Early 19120 series
1шт.
1-2019
Carrier w/caps (incl 2, 5 & 7)
1шт.
Latest 19120 series and 23120 seriesatest 19120 series and 23120 series
1шт.
7
16-65
BUSHING
4шт.
8
16-28
ADJUSTER
Bearing RH
1шт.
9
16-29
BEARING
Cup, Bearing
1шт.
11
16-40
KIT
Bolt & Nut Kit
1шт.
12
16-60T1
OIL SEAL
& Retainer Assy (16-060)
1шт.
Superseded - Old P/N can be used for all models, but order new P/N when stock is depleted.
1шт.
13
90-2431T1
CASE
Kit (Repl 16-032 & 16-038)
1шт.
Early and latest 19120 series early and latest 19120 series
1шт.
Superseded - Old P/N can be used for all models, but order new P/N when stock is depleted.
1шт.
90-2429T1
CASE
Kit (Repl 01-2026 & 01-2027)
1шт.
23120 series
1шт.
Superseded - Old P/N can be used for all models, but order new P/N when stock is depleted.
1шт.
35-1214
KIT
Diff kit, consists of Refs. 14-18
1шт.
Early and latest 19120 series
1шт.
35-1213
KIT
Diff Kit
1шт.
23120 series
1шт.
35-1375T91
SPIDER ASSY.
Differential Kit
1шт.
Rolled splined side gears in differential assy., effective 3-01-83 approx.
1шт.
14
16-33
THRUST WASHER
Thrust Washer
2шт.
Early and latest 19120 series
1шт.
23120 series
1шт.
Early and latest 19120 series
1шт.
1-2024
THRUST WASHER
Thrust Washer
4шт.
23120 series
1шт.
Available in Kit only (Refs. 16-18)
1шт.
19
1-5513
FORK
Yoke (Repl 17-210)
1шт.
Superseded - Old P/N can be used for all models, but order new P/N when stock is depleted.
1шт.
20
16-857
Gear Set, Front, 5.43 (305)
1шт.
16-858
Gear Set, Rear, 5.43 (305)
1шт.
16-860
Gear Set, Front 6.17 (305)
1шт.
16-859
Gear Set, Rear 3.17 (305)
1шт.
16-861
Gear Set, Front 4.88 (S-34)
1шт.
Early 19120 series
1шт.
16-1175
RING
Gear Set, Rear 4.88 (S-34)
1шт.
Early 19120 series
1шт.
1-2028
GEAR-SET
Gear Set, Rear 4.88 (S-34)
1шт.
Latest 19120 series and 23120 series
1шт.
1-2029
RING
Gear Ring and Pinion Set, Front, 4.88 (S-34)
1шт.
Latest 19120 series and 23120 series
1шт.
22
1-1967
NUT
(Repl 16-063)
1шт.
Superseded - Old P/N is not used any longer, the new P/N is to be used in ALL cases. Old P/N should be removed from existing inventory. It is recommended that the old part not be used under any circumstances.
1шт.
23
16-42
BOLT,9/16" x 3 5/16"
Capscrew
12шт.
Early and latest 19120 series
1шт.
1-2022
CAPSCREW
12шт.
23120 series
1шт.
24
16-45
Adjuster, Bearing, LH
1шт.
25
16-44
BEARING
Cup, Bearing
1шт.
26
16-43
ROLLER BEARING
Cone, Bearing
1шт.
27
16-57
CONE
Bearing
1шт.
28
16-57
CONE
Cup, Bearing
1шт.
29
16-53
CAGE
(w/25 & 28)
1шт.
Early 19120 series
1шт.
1-1967
NUT
Cage (w/25 & 28)
1шт.
Latest 19120 series and 23120 series
1шт.
30
16-47
ROLLER BEARING
Bearing
1шт.
Early 19120 series
1шт.
1-2018
BALL BEARING
Bearing
1шт.
Latest 19120 series and 23120 series
1шт.
31
19-57
BOLT,5/8" - 11 x 1 3/4", Gr 5
Capscrew
6шт.
32
16-48
Cone, Bearing
1шт.
33
16-218
WASHER
Spacer (.176)
1шт.
16-219
WASHER
Spacer (.177)
1шт.
16-220
WASHER
Spacer (.178)
1шт.
16-221
WASHER
Spacer (.179)
1шт.
16-222
WASHER
Spacer (.180)
1шт.
16-223
WASHER
Spacer (.181)
1шт.
16-224
WASHER
Spacer (.182)
1шт.
16-225
WASHER
Spacer (.183)
1шт.
16-226
WASHER
Spacer (.184)
1шт.
16-227
WASHER
Spacer (.185)
1шт.
16-228
WASHER
Spacer (.186)
1шт.
16-229
WASHER
Spacer (.187)
1шт.
16-230
WASHER
Spacer (.188)
1шт.
16-231
WASHER
Spacer (.189)
1шт.
16-232
WASHER
Spacer (.190)
1шт.
16-233
WASHER
Spacer (.191)
1шт.
16-234
WASHER
Spacer (.192)
1шт.
16-235
WASHER
Spacer (.193)
1шт.
16-236
WASHER
Spacer (.194)
1шт.
16-237
WASHER
Spacer (.195)
1шт.
34
16-50
SPACER
1шт.
35
16-51
BEARING
Cup, Bearing
1шт.
36
16-52
SHIM
(.003)
1шт.
16-245
SHIM
(.005)
1шт.
16-246
SHIM
(.010)
1шт.
16-247
SHIM
(.020)
1шт.
16-248
SHIM
(.030)
1шт.
