Запчасти Case IH ST220 (04-38) - DRIVESHAFTS, WITH STATIONARY TRANSFER CASE, ASN 2000 (04) - Drive Train

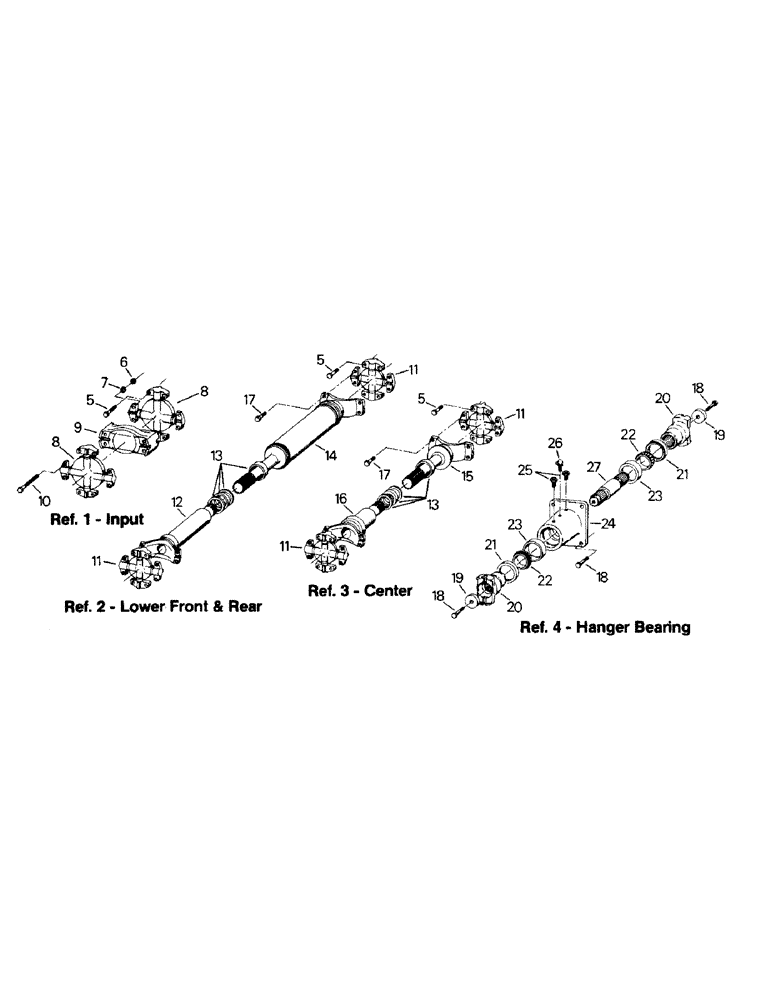

Схема запчастей Case IH ST220 - (04-38) - DRIVESHAFTS, WITH STATIONARY TRANSFER CASE, ASN 2000 (04) - Drive Train
5
17
10
22
21
11
14
17
21
20
12
27
24
25
18
5
19
6
15
19
16
11
8
23
11
18
5
18
23
20
13
8
7
9
22
11
26
13

Артикул

Название

Примечание

Количество

1

1-3249T91

DRIVE SHAFT

Driveshaft Assy (Input) (incl refs. 6-10) (all except ST 350)

1шт.

May also be available as P/N 90-2853T91, which is the same except that it includes Ref. 5

1шт.

90-1050T92

DRIVE SHAFT

Driveshaft Assy (Input) (ST 350)

1шт.

2

90-2205T92

DRIVE SHAFT

Driveshaft Assy (Lower Front) (90-2205T91)

1шт.

Superseded - Old P/N can be used for all models, but order new P/N when stock is depleted.

1шт.

17-2701T91

Driveshaft Assy (Lower Rear) (17-270) (incl Refs. 11-14 & 17)

1шт.

Superseded - Old P/N can be used for all models, but order new P/N when stock is depleted.

1шт.

3

1-3233T91

DRIVE SHAFT

Driveshaft Assy, 32.38", (Center) (01-3233) (incl Refs. 11, 13 & 15-17)

1шт.

Superseded - Old P/N can be used for all models, but order new P/N when stock is depleted.

1шт.

4

90-2690T91

HANGER

Bearing (incl refs. 18-27)

1шт.

5

19-477

BOLT,Hex, 1/2" - 20 x 2", Gr 8

Capscrew

1шт.

6

19-1060

JAM NUT,1/2" - 20, Gr 8

4шт.

7

19-119

LOCK WASHER,1/2"

1/2"

4шт.

8

1-9994T1

U-JOINT SPIDER

Spider & Bearing Kit

2шт.

9

NSS

NOT SOLD SEPARAT

Coupling Yoke

1шт.

Ref. 9, 12 and 14-16 may not be purchased separately; therefore, if any of these items are needed, a complete driveshaft assy. must be purchased.

1шт.

10

274102

COVER

Capscrew

4шт.

11

17-201T1

U-JOINT SPIDER

Spider & Bearing Kit (17-201)

2шт.

Superseded - Old P/N can be used for all models, but order new P/N when stock is depleted.

1шт.

12

NSS

NOT SOLD SEPARAT

Slip Yoke

1шт.

Ref. 9, 12 and 14-16 may not be purchased separately; therefore, if any of these items are needed, a complete driveshaft assy. must be purchased.

1шт.

13

2-3843T1

RING, SET

Stuffing Cap Assy (incl P/N's 17-170, 17-172 & 17-171 which may no longer be purchased separately)

1шт.

14

NSS

NOT SOLD SEPARAT

Tube Assy

1шт.

Ref. 9, 12 and 14-16 may not be purchased separately; therefore, if any of these items are needed, a complete driveshaft assy. must be purchased.

1шт.

15

NSS

NOT SOLD SEPARAT

Stub Yoke

1шт.

Ref. 9, 12 and 14-16 may not be purchased separately; therefore, if any of these items are needed, a complete driveshaft assy. must be purchased.

1шт.

16

NSS

NOT SOLD SEPARAT

Slip Yoke

1шт.

Ref. 9, 12 and 14-16 may not be purchased separately; therefore, if any of these items are needed, a complete driveshaft assy. must be purchased.

1шт.

17

A12870

BOLT,Hex, 7/16" - 20 x 1 1/16"

Capscrew

1шт.

18

19-822

BOLT,Hex, 5/8" - 11 x 1 1/2", Gr 8, Full Thd

Capscrew

6шт.

19

19-5864

WASHER

2шт.

20

90-2687T1

FORK

Yoke

2шт.

21

90-1934T2

SEAL

(90-1934T1)

1шт.

Superseded - Old P/N can be used for all models, but order new P/N when stock is depleted.

1шт.

22

90-1862T1

ROLLER BEARING,2.625" ID x 1.183"

2шт.

23

90-1322T1

BEARING, CUP,4.4375" OD x 1.1875"

Bearing Cup

2шт.

24

90-2689T1

HOUSING

1шт.

25

178779

FITTING

Relief Fitting (not used on later models)

2шт.

26

31-93

FITTING

Grease Fitting

1шт.

27

90-1930T1

SHAFT

(replaces 19-1930T1)

1шт.

Выбрано товаров: 40
