Запчасти Case IH ST220 (04-21) - CLUTCH CONTROL AND LUBRICATION (04) - Drive Train

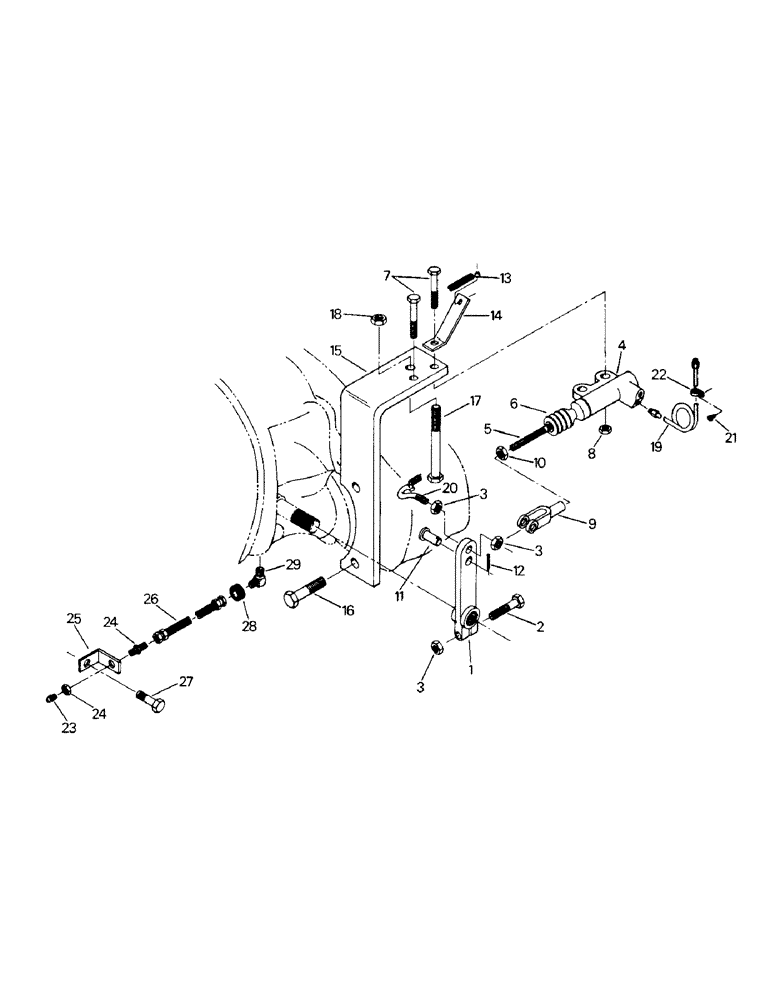

Схема запчастей Case IH ST220 - (04-21) - CLUTCH CONTROL AND LUBRICATION (04) - Drive Train
27
24
28
21
16
7
29
24
1
12
3
11
3
25
10
2
5
4
17
20
23
3
22
8
14
13
26
6
15
19
9
18

Артикул

Название

Примечание

Количество

1

54-298

LEVER

Clutch Lever

1шт.

2

19-21

BOLT,Hex, 3/8" - 16 x 2", Gr 5

Capscrew

1шт.

3

19-78

SPECIAL NUT,3/8"-16, G5

3шт.

4

54-299

CYLINDER ASSY.,49.53mm Stroke

Slave Cylinder

1шт.

54-299 does not include 1-9436 push rod per ecn 20020.

1шт.

4

54-299R

REMAN-HYD CYLINDER

(ST220, ST225 both STEIGER SERIES III BEARCAT TRACTOR), (ST250, ST251, ST270, ST280 all STEIGER SERIES III COUGAR TRACTOR), (ST310, ST320, ST325, ST350 all STEIGER SERIES III PANTHER TRACTOR), (STEIGER - SERIES III BEARCAT TRACTORS, STEIGER - SERIES III COUGAR TRACTORS, STEIGER - SERIES III PANTHER TRACTORS) all (7/84-)

1шт.

4

54-299C

CORE-HYD CYLINDER

Return Number

1шт.

35-1009

KIT

Repair Kit

1шт.

5

1-9436

PUSH ROD

1шт.

6

1-3082

BOOT

(incl with Ref. 4)

1шт.

7

19-730

CAPSCREW,Hex, 7/16" - 14 x 2 1/2", Gr 5

2шт.

8

19-79

NUT,7/16"-14, G5

2шт.

9

19-139

YOKE

Clevis

1шт.

10

19-868

JAM NUT,Jam, 3/8"-24, G5

1шт.

11

19-145

CLEVIS PIN,3/8" x 1.06"

1шт.

12

19-124

COTTER PIN,3/32" x 1"

Pin, Split (Cotter), 3/32" x 1"

1шт.

13

2-2027

SPRING

1шт.

In some of the old machines, two of 1-5696 spring was used instead of the 2-2027 Spring.

1шт.

14

2-2026

STRAP

1шт.

15

54-297

BRACKET

1шт.

16

19-817

SCREW,Hex, 5/8"-11 x 2", G8

Capscrew

2шт.

17

19-825

CAPSCREW,Hex, 1/2" - 13 x 4 1/2", Gr 8

1шт.

18

19-81

NUT,1/2"-13, G5

1шт.

19

25-1000

TUBE

1шт.

20

19-5574

EYEBOLT,3/8" - 16 x 275mm

Eye Bolt

1шт.

21

281-1458

SELF-TAP SCREW,Hex Wash Hd, #10 x 1/2"

Tapping Screw

1шт.

22

32-68

COTTER PIN,3/32" x 1/2"

Clip

1шт.

23

80710

LUBE NIPPLE,1/8” – 27 Dryseal PTF

NIPPLE, LUBE, 1/8"-27 x .66 lg

1шт.

24

31-660

ADAPTER

1шт.

25

12-1518

BRACKET

1шт.

26

32-309

HOSE

1шт.

27

19-479

CAPSCREW,Hex, 3/8" - 24 x 1", Gr 5

1шт.

28

1-3031

GROMMET

1шт.

29

31-661

ELBOW,90 Degree, 7/16"-20, 37 Degree x 1/8"-27, NPTF

1шт.

Выбрано товаров: 34
