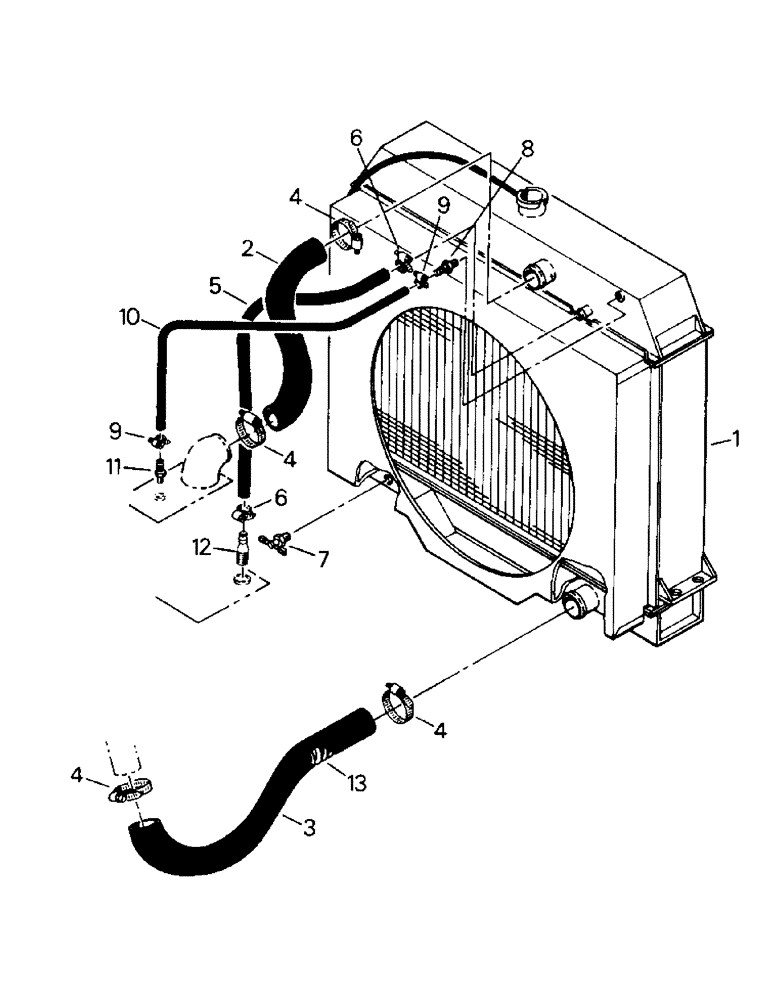

Запчасти Case IH ST220 (04-18A) - RADIATOR AND HOSES, CUMMINS 855 ENGINE (04) - Drive Train

1

Radiator Assy (Fig. 4-19)

1шт.

2

32-317

HOSE,2.25" ID x 20.00"

RADIATOR HOSE, 2.25" ID x 20.00"

1шт.

3

32-329T1

HOSE,2.50" ID x 25.00"

RADIATOR HOSE, (32-329) (ST 251CP, 280 & 310CP) 2.50" ID x 25.00"

1шт.

Hose P/N 32-329T1 will now include the hose spring (Ref. 13) while with Hose P/N 32-329 the spring is a separate part.

1шт.

Superseded - Old P/N can be used for all models, but order new P/N when stock is depleted.

1шт.

32-320

HOSE,2.50" ID x 15.00", SAE 20R4 CLASS R

RADIATOR HOSE, (ST 220 & 251) 2.50" ID x 15.00", SAE 20R4 CLASS R

1шт.

4

32-24

HOSE CLAMP,#40, 2.06/3.00 Type F Worm

Clamp

4шт.

5

31-1503

HOSE,1.00" ID x 28.00"

1шт.

6

32-27

HOSE CLAMP,#20, 0.81/1.75 Type F Worm

Clamp

2шт.

7

31-157

COCK, DRAIN

Drain Cock

1шт.

8

31-137

FITTING

Barbed Fitting

1шт.

All except Later ST 310CP.

1шт.

31-1186

FITTING

Barbed Fitting

1шт.

Later ST 310CP (These are 1/4" ID hoses & adapters which should be put onto the earlier ST 310CP which used the 3/8"

1шт.

9

32-29

HOSE CLAMP

Clamp

2шт.

10

32-318

HOSE,0.38" ID x 28.00"

RADIATOR HOSE, 0.38" ID x 28.00"

1шт.

All except Later ST 310CP.

1шт.

31-1442

HOSE,0.25" ID x 28.00"

1шт.

Later ST 310CP (These are 1/4" ID hoses & adapters which should be put onto the earlier ST 310CP which used the 3/8"

1шт.

11

31-164

CONNECTOR, ELEC

Barbed Fitting

1шт.

All except Later ST 310CP

1шт.

31-615

ROD, CONNECTING

Barbed Fitting

1шт.

Later ST 310CP (These are 1/4" ID hoses & adapters which should be put onto the earlier ST 310CP which used the 3/8"

1шт.

12

31-248

FITTING

King Nipple

1шт.

13

32-1007

SPRING

Hose Spring

1шт.

Hose P/N 32-329T1 will now include the hose spring (Ref. 13) while with Hose P/N 32-329 the spring is a separate part.

1шт.
