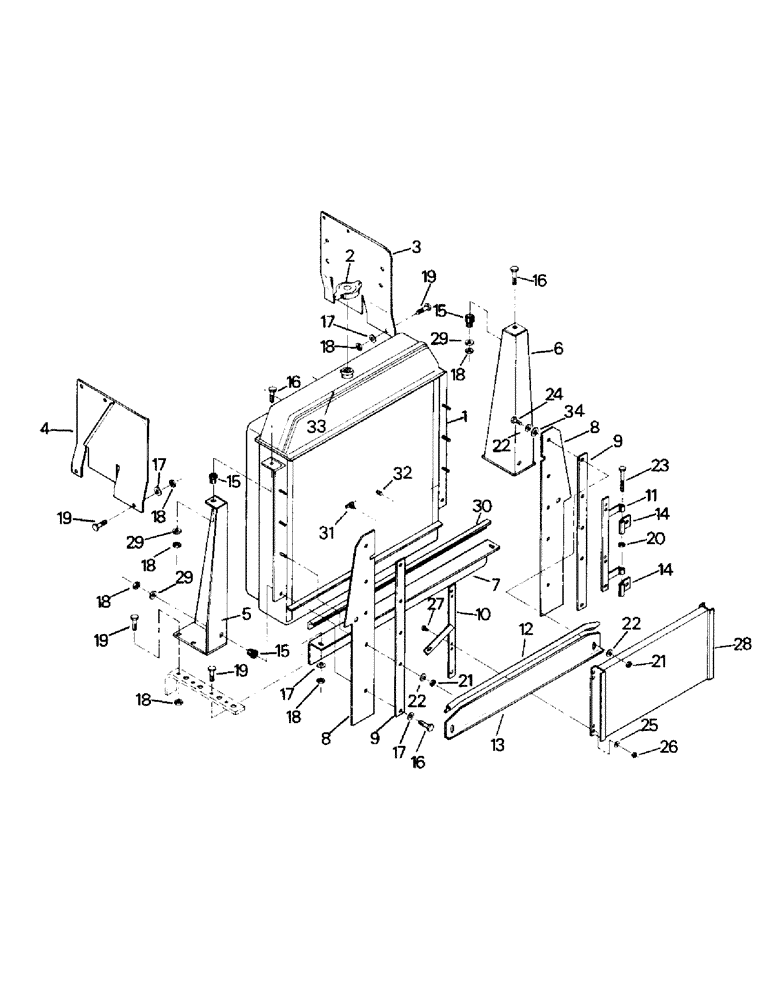

Запчасти Case IH ST220 (04-16) - RADIATOR AND MOUNTING, ALL ST 220, ST 251 AND EARLY ST 250 AND ST 270 (04) - Drive Train

1

51-389

Radiator

1шт.

These radiators are no longer available and must be serviced with Kit P/N 35-1267 for ST220 and ST251 and Kit P/N 35-1029 for ST250 and ST270. These kits contain the latest radiators and mounting parts as shown in Figure 04-17. These Kits would apply to all ST220 and ST251 and to ST250 and ST270 prior to S/N break 104-00289 and 105-00375 respectively.

1шт.

ST220 and ST251 (all)

1шт.

51-400

Radiator

1шт.

These radiators are no longer available and must be serviced with Kit P/N 35-1267 for ST220 and ST251 and Kit P/N 35-1029 for ST250 and ST270. These kits contain the latest radiators and mounting parts as shown in Figure 04-17. These Kits would apply to all ST220 and ST251 and to ST250 and ST270 prior to S/N break 104-00289 and 105-00375 respectively.

1шт.

ST250 and ST270 (before S/N 104-00289 and 105-00375 respectively)

1шт.

Superseded - Old P/N MUSTbe used on models prior to S/N break. New P/N will fit models after the S/N break only.

1шт.

2

10-21

CAP

Radiator Cap

1шт.

3

51-412

Hinge Shield (Left)

1шт.

4

51-409

Hinge Shield (Right)

1шт.

5

51-390

Upright (Right)

1шт.

ST220 and ST251 (all)

1шт.

51-401

Upright (Right)

1шт.

ST250 and ST270 (before S/N 104-00289 and 105-00375 respectively)

1шт.

6

51-391

Upright (Left)

1шт.

ST220 and ST251 (all)

1шт.

51-402

Upright (Left)

1шт.

ST250 and ST270 (before S/N 104-00289 and 105-00375 respectively)

1шт.

7

1-509

Chaff Shield (Bottom on ST 250 & ST 270 only)

1шт.

8

51-394

Chaff Shield

2шт.

ST220 and ST251 (all)

1шт.

51-405

Chaff Shield

2шт.

ST250 and ST270 (before S/N 104-00289 and 105-00375 respectively)

1шт.

9

51-396

Backing Strip

2шт.

10

51-442

Cooler Latch

1шт.

11

51-441

Cooler Hinge

1шт.

12

51-414

Rubber Trim

1шт.

13

51-395

Chaff Shield (top)

1шт.

ST220 and ST251 (all)

1шт.

1-510

Chaff Shield (top)

1шт.

ST250 and ST270 (before S/N 104-00289 and 105-00375 respectively)

1шт.

14

51-440T1

Hinge (51-440)

2шт.

Superseded - Old P/N can be used for all models, but order new P/N when stock is depleted.

1шт.

15

18-511

MOUNTING PARTS

Rubber Mt.

4шт.

16

19-46

BOLT,1/2" - 13 x 2", Gr 5

Capscrew, 1/2 NC x 2

4шт.

17

19-109

WASHER,1/2"

1/2

6шт.

18

19-81

NUT,1/2"-13, G5

1/2 NC

14шт.

19

19-45

BOLT,1/2" - 13 x 1 1/2", Gr 5

Capscrew, 1/2 NC x 1-1/2

10шт.

20

232-4136

LOCK NUT,3/8"-16, GC

Locknut

2шт.

21

19-78

SPECIAL NUT,3/8"-16, G5

3/8 NC

6шт.

22

19-107

WASHER

3/8

10шт.

23

19-133

BOLT,Hex, 3/8" - 16 x 4", Gr 5

Capscrew, 3/8 NC x 4

2шт.

24

19-17

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Capscrew, 3/8 NC x 1

2шт.

25

19-603

LOCK WASHER,Ext Tooth, #10

Washer, #10

8шт.

26

19-567

NUT,#10-24

#10 NC

8шт.

27

19-233

SCREW,Sl Rd Hd, #10 - 24 x 1/2", Gr 2

#10 NC x 1/2

8шт.

28

Condenser (see Sec. III)

1шт.

29

19-571

RUBBER WASHER

Mt.

4шт.

30

1-511

Rubber Pad

1шт.

ST220 and ST251 (all)

1шт.

51-398

FOAM

Pad

1шт.

ST250 and ST270 (before S/N 104-00289 and 105-00375 respectively)

1шт.

31

31-157

COCK, DRAIN

Drain Cock

1шт.

32

31-37

PLUG

Pipe Plug (ST 220 & ST 251 only)

1шт.

33

51-398

FOAM

Pad

1шт.

34

19-110

WASHER,9/16"

9/16

2шт.
