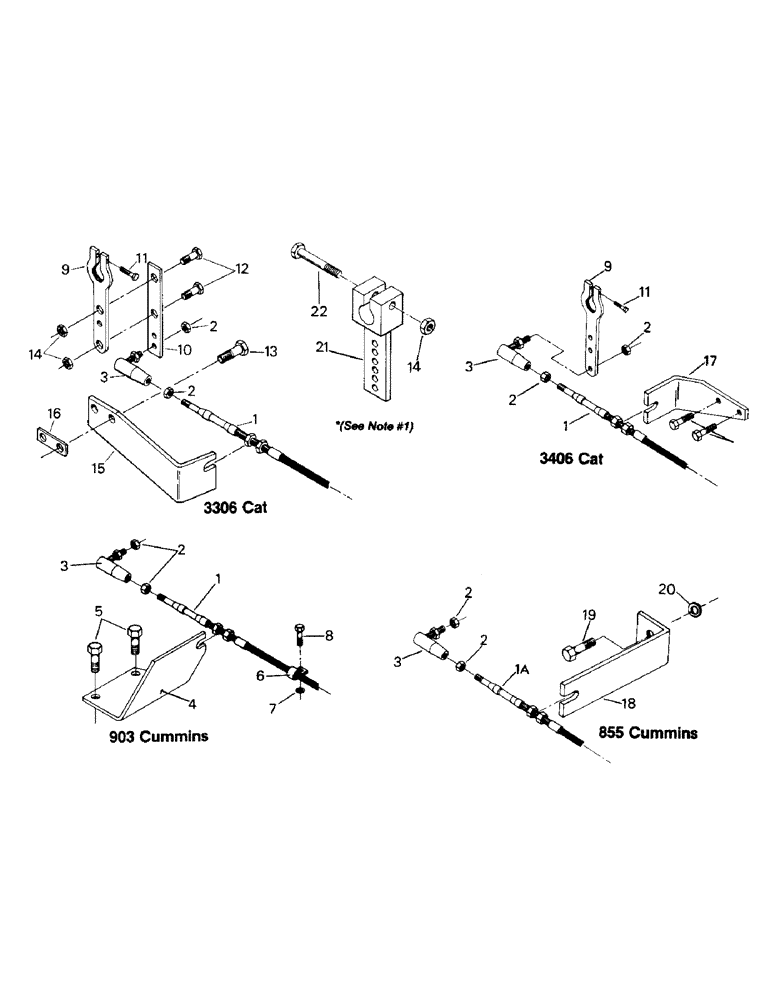

Запчасти Case IH ST220 (04-09) - THROTTLE CONTROLS, ENGINE, W/O ELECTRIC DECELERATOR (04) - Drive Train

1

29-58

CABLE

Throttle, 95"

1шт.

1a

1-4481

CABLE

Throttle (855), 105"

1шт.

2

19-308

NUT,#10 - 32

4шт.

3

6-1431

BALL JOINT

2шт.

4

29-1005

BRACKET

Throttle Cable

1шт.

5

19-679

BOLT,Hex, 3/8" - 16 x 1", Gr 8

Capscrew

2шт.

6

22-1109

CLAMP

Clip

1шт.

7

19-107

WASHER

1шт.

8

NAP

Capscrew (supplied on engine)

1шт.

9

4-580

LEVER

Throttle ( Ref. 21)

1шт.

10

4-587

Throttle Arm (Ref. 21)

1шт.

11

19-5847

SCREW,Hex Skt, #8 - 36 x 3/4"

Machine Screw

1шт.

12

19-1

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

Capscrew

2шт.

13

19-654

BOLT,Hex, 5/16" - 18 x 1", Gr 8

Capscrew

2шт.

14

19-76

NUT,1/4"-20, G5

2шт.

15

4-586

Bracket, Throttle Cable

1шт.

60-3084T1

Bracket, Throttle Cable

1шт.

Tractors with 3306 engine built after 10-1-82 (S/N 2501) that do not have the electric decelerator, will be using the later style bracket (Ref. 15, P/N 60-3084T1) and throttle lever (Ref. 21, P/N 60-3085T1). These parts can also be used as replacements for the earlier style.

1шт.

16

4-588

Spacer

1шт.

17

4-1018

Bracket Throttle Cable

1шт.

18

55-169

Bracket

1шт.

19

19-683

BOLT,Hex, 9/16" - 18 x 1", Gr 5, Full Thd

Capscrew

2шт.

20

19-538

Washer (used only after Feb 80)

1шт.

21

60-3085T1

ARM

Lever, Throttle (repl Ref. 9 & 10)

1шт.

Tractors with 3306 engine built after 10-1-82 (S/N 2501) that do not have the electric decelerator, will be using the later style bracket (Ref. 15, P/N 60-3084T1) and throttle lever (Ref. 21, P/N 60-3085T1). These parts can also be used as replacements for the earlier style.

1шт.

Superseded - Old P/N can be used for all models, but order new P/N when stock is depleted.

1шт.

22

19-550

BOLT,Hex, M16 x 35mm, Cl 10.9

Capscrew

1шт.

Tractors with 3306 engine built after 10-1-82 (S/N 2501) that do not have the electric decelerator, will be using the later style bracket (Ref. 15, P/N 60-3084T1) and throttle lever (Ref. 21, P/N 60-3085T1). These parts can also be used as replacements for the earlier style.

1шт.
