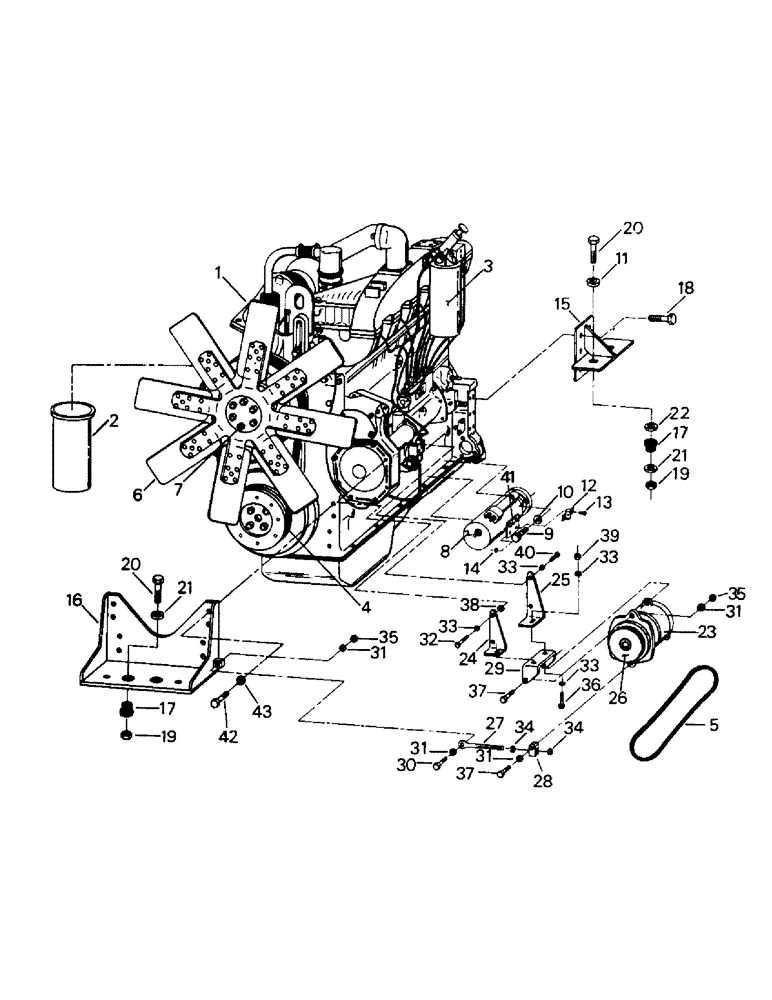

Запчасти Case IH ST220 (04-06) - ENGINE AND ATTACHING PARTS, CAT 3406 (04) - Drive Train

1

90-2176T1

Engine, 3406 DIT (ST 280)

1шт.

90-1059T1

Engine, 3406 DIT (ST 325)

1шт.

Superseded - Old P/N can be used for all models, but order new P/N when stock is depleted.

1шт.

2

1-2335

FILTER, ENGINE OIL

Oil Filter Element

1шт.

3

1-2334

FILTER

Fuel Filter Element

1шт.

4

1-2059

SET OF BELTS,0.69" W x 71.44" L

(2), Fan 0.69" W x 71.44" L

1шт.

5

1-2228

V-BELT,0.69" W x 52.88" L

(1), Alt & Air 0.69" W x 52.88" L

2шт.

6

6-1597

FAN

1шт.

7

19-821

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 8, Full Thd

Capscrew

6шт.

8

Starter (Fig. 2-9)

1шт.

9

19-907

12 PT SCREW,Flg, 5/8" - 11 x 2", Gr 8

Capscrew

3шт.

10

19-912

WASHER

3шт.

11

19-111

WASHER,5/8"

4шт.

12

20-1608T1

SOLENOID

(06-1496)

1шт.

Superseded - Old P/N can be used for all models, but order new P/N when stock is depleted.

1шт.

13

19-1

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

Capscrew

2шт.

14

19-76

NUT,1/4"-20, G5

2шт.

15

6-1588

X

Engine Mt LH, Serial Range: -2000

1шт.

Between S/N 2000 & 2759 the earlier mts. were used, which can cause strain on the top driveshaft and yoke on the transfer case. If there is a problem or replacement is needed on tractors in this serial number range, both of the later mts. plus the front support (Ref. 37 in Figure 06-01) should be ordered.

1шт.

6-1589

X

Engine Mt RH, Serial Range: -2000

1шт.

Between S/N 2000 & 2759 the earlier mts. were used, which can cause strain on the top driveshaft and yoke on the transfer case. If there is a problem or replacement is needed on tractors in this serial number range, both of the later mts. plus the front support (Ref. 37 in Figure 06-01) should be ordered.

1шт.

90-4387T1

ANCHOR

Engine Mt LH, Start Serial: 2000

1шт.

Between S/N 2000 & 2759 the earlier mts. were used, which can cause strain on the top driveshaft and yoke on the transfer case. If there is a problem or replacement is needed on tractors in this serial number range, both of the later mts. plus the front support (Ref. 37 in Figure 06-01) should be ordered.

1шт.

90-4388T1

ANCHOR

Engine Mt RH, Start Serial: 2000

1шт.

Between S/N 2000 & 2759 the earlier mts. were used, which can cause strain on the top driveshaft and yoke on the transfer case. If there is a problem or replacement is needed on tractors in this serial number range, both of the later mts. plus the front support (Ref. 37 in Figure 06-01) should be ordered.

1шт.

16

6-1594

Engine Mt Front

1шт.

17

24-231

RUBBER MOUNTING

Rubber Mt

6шт.

18

19-57

BOLT,5/8" - 11 x 1 3/4", Gr 5

Capscrew

12шт.

19

19-222

LOCK NUT,5/8" - 11, GB

Nut

10шт.

20

19-256

BOLT,Hex, 5/8" - 11 x 4", Gr 5

Capscrew

6шт.

21

19-408

WASHER

6шт.

22

51-128

WASHER

4шт.

23

Alt (Fig. 2-12 & 2-13)

1шт.

24

22-1087

BRACKET

Alt Mt

1шт.

Superseded - Old P/N MUSTbe used on models prior to S/N break. New P/N will fit models after the S/N break only.

1шт.

90-2351T1

BRACKET

Alt Mt

1шт.

Superseded - Old P/N MUSTbe used on models prior to S/N break. New P/N will fit models after the S/N break only.

1шт.

25

22-1088

Bracket, Alt Mt

1шт.

26

22-1085

PULLEY

(For Delco Alt)

1шт.

2-1979

PULLEY

(For Niehoff Alt)

1шт.

27

22-1086T1

ROD

Alt Adj (22-1086)

1шт.

Superseded - Old P/N can be used for all models, but order new P/N when stock is depleted.

1шт.

28

22-1083

BLOCK

Alt Adj

1шт.

29

22-1089

Bracket, Alt Mt

1шт.

30

19-680

BOLT,Hex, 1/2" - 13 x 2 1/4", Gr 8

Capscrew

1шт.

31

19-109

WASHER,1/2"

5шт.

32

19-478

BOLT,Hex, 3/8" - 16 x 1.75", Gr 8

Capscrew

2шт.

90-2352T1

Nut

2шт.

Superseded - Old P/N MUSTbe used on models prior to S/N break. New P/N will fit models after the S/N break only.

1шт.

33

19-107

WASHER

8шт.

34

19-1060

JAM NUT,1/2" - 20, Gr 8

2шт.

35

19-826

NUT,1/2"-13, G8

3шт.

36

19-652

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 8

Capscrew

2шт.

37

19-909

BOLT,Hex, 1/2" - 13 x 2", Gr 8

Capscrew

3шт.

38

22-1084

NUT

Spacer

2шт.

Superseded - Old P/N MUSTbe used on models prior to S/N break. New P/N will fit models after the S/N break only.

1шт.

19-5724

SPACER

2шт.

Superseded - Old P/N MUSTbe used on models prior to S/N break. New P/N will fit models after the S/N break only.

1шт.

39

19-823

NUT,3/8"-16, G5

2шт.

Superseded - Old P/N MUSTbe used on models prior to S/N break. New P/N will fit models after the S/N break only.

1шт.

40

19-799

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 8

Capscrew

2шт.

41

55-185

Bracket

1шт.

Cat Parts, consists of Refs. 42-43

8шт.
