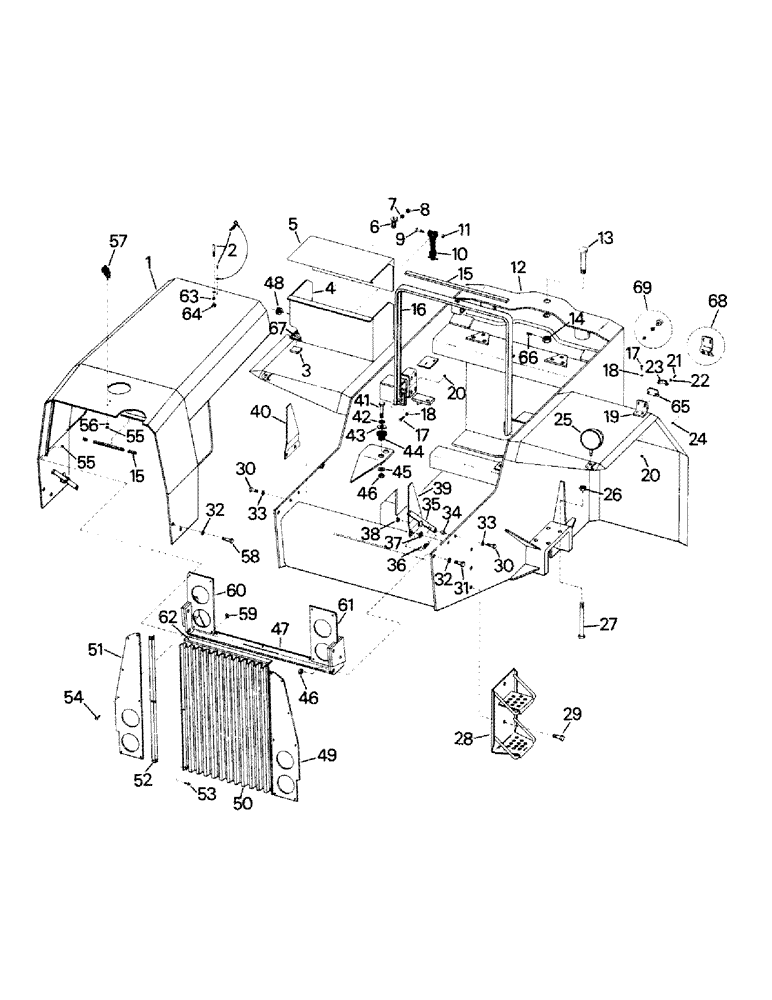

Запчасти Case IH ST210 (06-01) - FRONT FRAME (12) - FRAME

1

1-445

HOOD

1шт.

2

1-545

LATCH

HOOD LATCH ASSEMBLY

1шт.

3

1-1006

INSULATION, battery box

1шт.

1-399

BATTERY BOX

ASSY. (std. fenders), Includes: Ref. 4 - 11

1шт.

1-1035

BATTERY BOX (high fenders)

1шт.

4

1-136

TERMINAL BOX

BATTERY BOX (std. fenders)

1шт.

1-1036

BATTERY BOX (high fenders)

1шт.

5

1-138

LARGE PLATE

COVER, battery box

1шт.

6

51-322

BRACKET, rubber tie down

1шт.

7

19-224

WASHER,3/8", SAE

3/8

1шт.

8

19-78

SPECIAL NUT,3/8"-16, G5

3/8 UNC

1шт.

9

19-9

BOLT,5/16" - 18 x 2", Gr 5

CAPSCREW, 5/16 x 2 UNC

1шт.

10

51-324

STRAP

TIE DOWN, rubber

1шт.

11

19-77

NUT,5/16"-18, G5

5/16 UNC

1шт.

12

1-457

FRONT FRAME (ST210)

1шт.

1-412

FRONT FRAME (RC210)

1шт.

1-1029

FRONT FRAME (ST210)

1шт.

1-1038

FRONT FRAME HIGH FENDERS (RC210)

1шт.

1-1252

FRONT FRAME HIGH FENDERS (K598 Axle)

1шт.

13

5-375

PIN

KING PIN

3шт.

14

2-17

NUT

king pin

3шт.

15

1-572

FOAM PAD

2шт.

16

1-570

HOOD FRAME

1шт.

17

19-17

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

CAPSCREW, 3/8 x 1 UNC

8шт.

18

19-107

WASHER

3/8

8шт.

19

1-558

MOUNT (std. fenders)

2шт.

2-1971

MOUNT (high fenders)

2шт.

20

232-4136

LOCK NUT,3/8"-16, GC

NUT, 3/8 UNC

8шт.

21

19-565

SCREW,Sl Flat Hd, #10 - 24 x 5/8", Gr 5

#10 x 5/8

4шт.

22

19-699

WASHER,3/16"

3/16

4шт.

23

19-263

PIN

KEEPER

2шт.

24

19-351

NUT,#10 - 24, GA

NUT, #10

4шт.

25

LIGHT (see frame electrical)

2шт.

26

NUT, 3/4 UNC (see axle)

8шт.

27

CAPSCREW, 3/4 x 10 UNC (see axle)

8шт.

28

51-449

STEP

2шт.

29

19-476

BOLT,Hex, 3/4" - 10 x 2", Gr 8

CAPSCREW, 3/4 x 2 UNC

6шт.

30

19-269

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 5

CAPSCREW, 1/2 x 1-1/2 UNC

4шт.

31

19-839

BOLT,Hex, 5/8" - 11 x 1 3/4", Gr 8

CAPSCREW, 5/8 x 2-1/4 UNC

2шт.

32

19-711

WASHER,5/8", SAE

5/8

8шт.

33

19-109

WASHER,1/2"

1/2

4шт.

34

1-443

BUSHING

2шт.

35

1-1012

LEVER, hood stop (left)

1шт.

1-1011

LEVER, hood stop (right)

1шт.

36

11-16

SPRING

1шт.

37

1-442

SPACER

2шт.

38

19-82

LOCK NUT

1/2 UNC

4шт.

39

1-430

FOOT GUARD, left

1шт.

40

1-435

FOOT GUARD, right

1шт.

41

19-278

BOLT,Hex, 5/8" - 11 x 3 1/2", Gr 5

CAPSCREW, 5/8 x 3-1/2 UNC

6шт.

42

19-111

WASHER,5/8"

5/8

6шт.

43

51-128

WASHER

21/32

6шт.

44

24-231

RUBBER MOUNTING

MOUNT, rubber

6шт.

45

19-408

WASHER

21/32

6шт.

46

19-222

LOCK NUT,5/8" - 11, GB

5/8 UNC

6шт.

47

1-426

HOOD PIVOT

1шт.

48

22-474

GROMMET

1шт.

49

1-428

SCREEN, left grill

1шт.

50

1-427

SCREEN

middle grill

1шт.

51

1-429

SCREEN, right grill

1шт.

52

1-566

ANGLE, grill screen support

2шт.

53

19-388

SELF-TAP SCREW,Hex Wshr Hd, 1/4" x 1 1/4"

SCREW, 1/4 x 1-1/4 UNC

15шт.

54

19-2

BOLT,Hex, 1/4" - 20 x 1", Gr 5

CAPSCREW, 1/4 x 1 UNC

8шт.

55

280129

NUT,1/4"-20

NUT, 1/4 UNC

10шт.

56

19-223

WASHER,1/4"

1/4

2шт.

57

1-549

HOOD

SIGHT

1шт.

58

19-675

BOLT,Hex, 5/8" - 11 x 1 1/4", Gr 5

CAPSCREW, 5/8 x 1-1/4 UNC

4шт.

59

32-69

CLAMP

CLIP

3шт.

60

1-1008

LIGHT MOUNT, right

1шт.

61

1-1007

LIGHT MOUNT, left

1шт.

62

1-1922

FOAM

1шт.

63

19-463

WASHER,1/2", SAE

1/2

2шт.

64

19-94

NUT

1/2 UNF

2шт.

65

19-262

PAD

RUBBER PAD

2шт.

66

19-3

HEX SOC SCREW,1/4" - 20 x 3/4", Gr 5

SET SCREW

2шт.

67

1-365

SEPARATOR BATTERY BOX

1шт.

68

2-1971

MOUNT, high fenders

2шт.

69

4-1019

STOP

door (high fenders only)

2шт.

19-508

LOCK NUT

(high fenders only)

2шт.

19-700

WASHER,5/16"

2шт.
