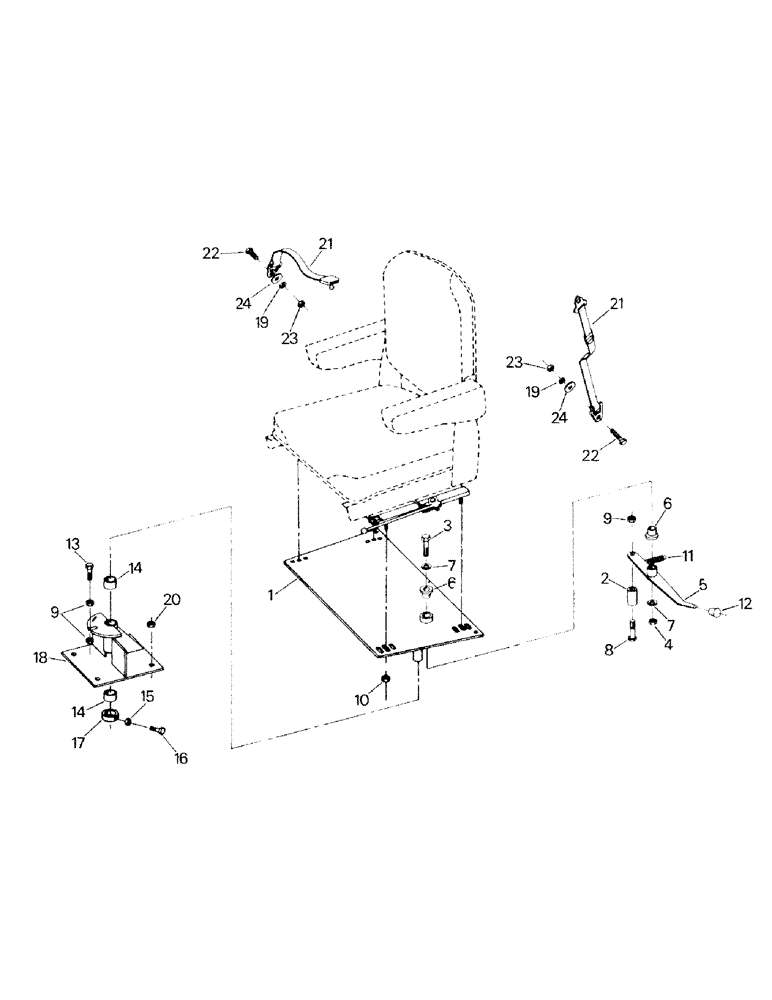

Запчасти Case IH ST210 (01-05) - SEAT AND SUSPENSION (10) - CAB

1

1-7608

LARGE PLATE

SEAT PLATE

1шт.

2

1-7618

BUSHING

1шт.

3

19-279

BOLT,Hex, 3/8" - 16 x 3", Gr 5

CAPSCREW, 3/8 x 3 UNC

1шт.

4

19-341

LOCK NUT,3/8" - 16, GB

3/8 UNC

1шт.

5

1-7607

HANDLE

1шт.

6

1-7610

BEARING

2шт.

7

19-107

WASHER

3/8

3шт.

8

19-21

BOLT,Hex, 3/8" - 16 x 2", Gr 5

CAPSCREW, 3/8 x 2 UNC

1шт.

9

19-78

SPECIAL NUT,3/8"-16, G5

3/8 UNC

5шт.

10

231-1445

NUT,5/16"-18, GB

NUT, LOCK, 5/16"-18, GB

4шт.

11

11-16

SPRING

1шт.

12

18-646

KNOB

1шт.

13

19-799

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 8

CAPSCREW, 3/8 x 1-1/4 UNC

1шт.

14

54-406

BUSHING,1.9385" ID x 1"

JOURNAL

2шт.

15

19-76

NUT,1/4"-20, G5

1/4 UNC

1шт.

16

19-2

BOLT,Hex, 1/4" - 20 x 1", Gr 5

CAPSCREW, 1/4 UNC

1шт.

17

24-198

COLLAR

1шт.

18

2-1969

STAND, seat

1шт.

19

19-118

LOCK WASHER,7/16"

7/16"

2шт.

20

19-653

LOCK NUT

LOCK NUT, 1/2 UNC

4шт.

24-60

SAFETY BELT ,2.00" W

SAFETY BELT, , Includes Ref. 21 - 24 2.00" W

1шт.

21

1-2190

SAFETY BELT

SEAT BELT

1шт.

22

1-2189

BOLT

shoulder

2шт.

23

19-92

NUT,7/16"-20, G2

7/16 UNF

2шт.

24

24-166

SAFETY BELT

PLATE, reinforcing

2шт.
