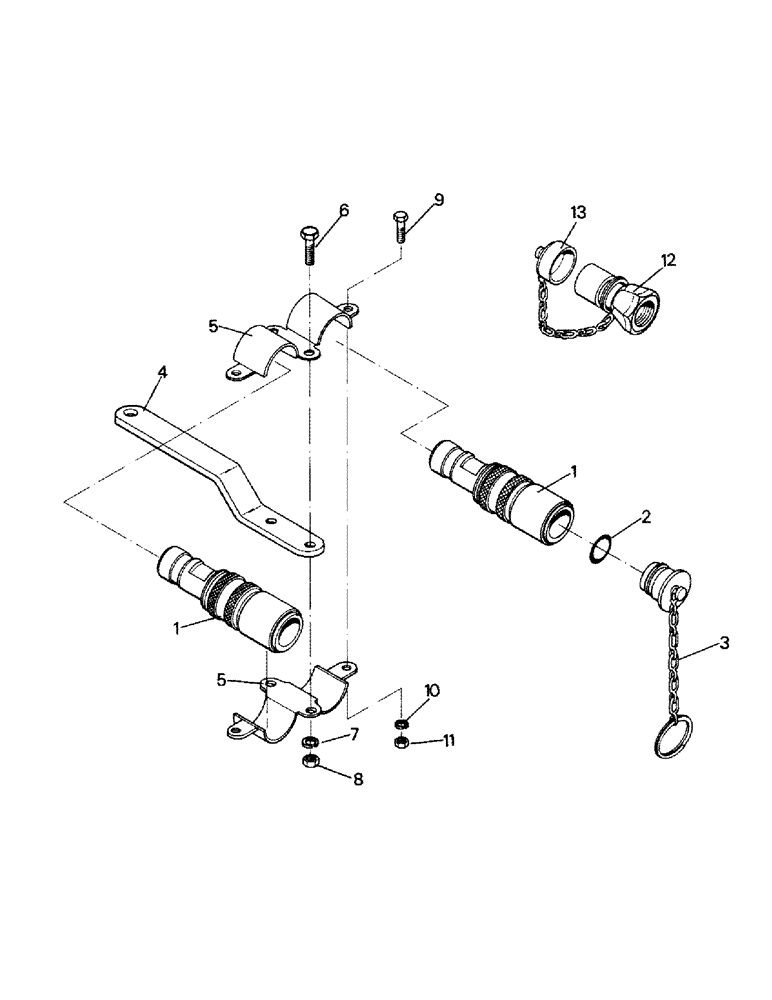

Запчасти Case IH ST210 (08-19) - HYDRAULIC COUPLER (07) - HYDRAULICS

1-7135

COUPLING

HYDRAULIC COUPLER ASSEMBLY, consists of ref. nos. 1-13

1шт.

1-7136

COUPLING, QUICK, FEM

HYDRAULIC COUPLER ASSEMBLY (less 2 male tip assys.)

1шт.

1

1-7137

COUPLING

FEMALE ASSEMBLY (includes ref. 2)

2шт.

2

18-1107

O-RING,0.139" Thk x 0.796" ID, -211, Cl 6, 90 Duro

O-RING

2шт.

3

18-40

PLUG

DUST PLUG

2шт.

18-40

PLUG

CLAMP ASSEMBLY, consists of ref. nos. 4-11

1шт.

4

1-7139

BAR

1шт.

5

1-7140

YOKE

2шт.

6

19-7

BOLT,Hex, 5/16" - 18 x 1", Gr 5

CAPSCREW, 5/16 x 1 UNC

2шт.

7

19-116

LOCK WASHER,5/16"

5/16"

2шт.

8

19-77

NUT,5/16"-18, G5

5/16 UNC

2шт.

9

19-1

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

CAPSCREW, 1/4 x 3/4 UNC

2шт.

10

19-115

LOCK WASHER,1/4"

1/4"

2шт.

11

19-76

NUT,1/4"-20, G5

1/4 UNC

2шт.

12

1-7141

FITTING

MALE TIP ASSEMBLY

2шт.

13

1-7142

CAP

DUST CAP

2шт.
