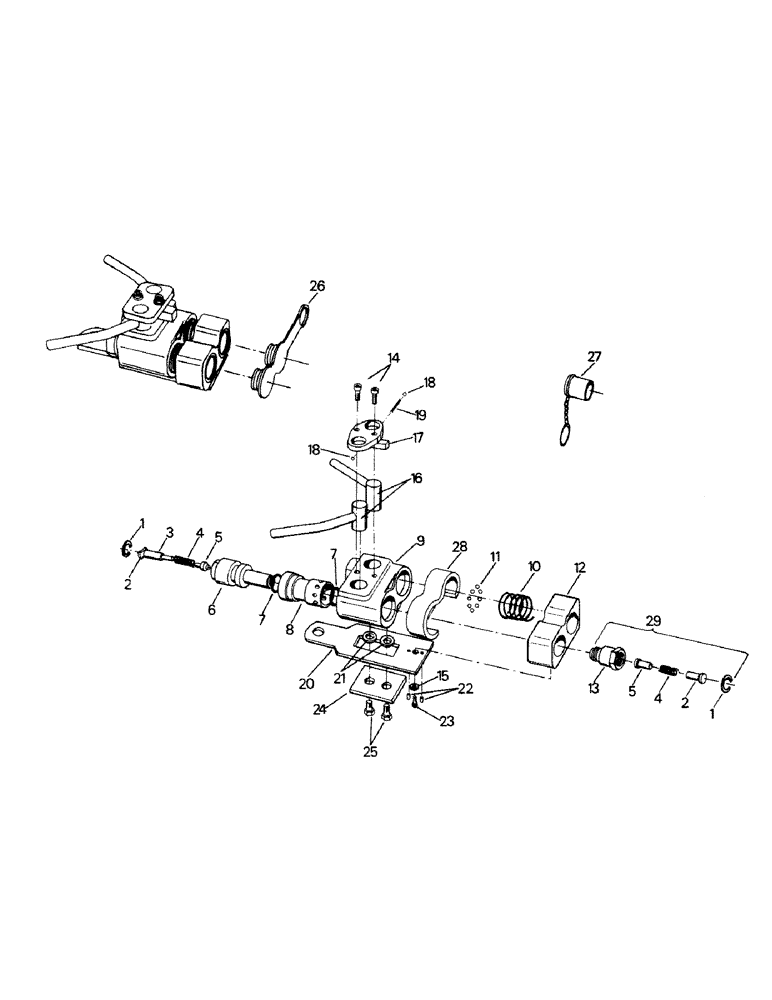

Запчасти Case IH ST210 (08-17) - HYDRAULIC COUPLER (07) - HYDRAULICS

18-1760

COUPLING

HYDRAULIC COUPLER ASSEMBLY., consists of ref. nos. 1-29

1шт.

Old part number can be used for all models, but order new part number when stock is depleted.

1шт.

This coupler P/N 18-1760 has O-rings ports.

1шт.

1-2626

COUPLING

HYDRAULIC COUPLER ASSEMBLY (less 2 male tip assys.)

1шт.

1

18-1641

OIL SEAL

RETAINING RING

4шт.

2

18-1642

PISTON STOP & GUIDE

4шт.

3

18-1643

PISTON EXTENSION

2шт.

4

18-1644

PISTON SPRING

4шт.

5

18-1645

PISTON

ASSEMBLY

4шт.

6

18-1646

MALE SLEEVE

2шт.

7

18-1647

O-RING

4шт.

8

18-1648

SLEEVE

FEMALE SLEEVE

2шт.

9

18-1649

BODY

1шт.

10

18-1650

SLEEVE SPRING

2шт.

11

18-1651

BALL

STEEL BALL, 3/16

16шт.

12

18-1652

COUPLER END

1шт.

13

18-1750

TIP

MALE TIP

2шт.

14

19-960

HEX SOC SCREW,1/4"-20 x 1"

SOCKET HEAD SCREW, 1/4 x 1 UNC

2шт.

15

19-883

WASHER,Ext-Int Tooth, 1/4"

1/4

2шт.

16

18-1654

CAM

& HANDLE ASSY. (R.H.)

1шт.

17

18-1751

RETAINER

CAM RETAINER

1шт.

18

18-1657

STEEL BALL, 1/4

2шт.

19

18-1658

SPRING

1шт.

20

18-1659

SLIDE

1шт.

21

18-1660

BUSHING

slide

2шт.

22

18-1730

ROLL PIN, 1/8 x 1/2 UNC

2шт.

23

19-891

HEX SOC SCREW,1/4"-20 x 1/2"

SOCKET HEAD SCREW, 1/4 x 1/2 UNC

2шт.

24

18-1661

HOLD DOWN PLATE

1шт.

25

19-16

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

CAPSCREW, 3/8 x 3/4 UNC

2шт.

26

18-1728

SEAL

PLUG

2шт.

27

18-1729

TIP

CAP

1шт.

28

1-4600

DUST SHIELD

1шт.

Additional part number(s) is used after th SN break only.

1шт.

29

18-1653

TIP

MALE TIP ASSEMBLY

2шт.
