Запчасти Case IH ST210 (08-16) - HYDRAULIC COUPLER (07) - HYDRAULICS

18-1608

COUPLING

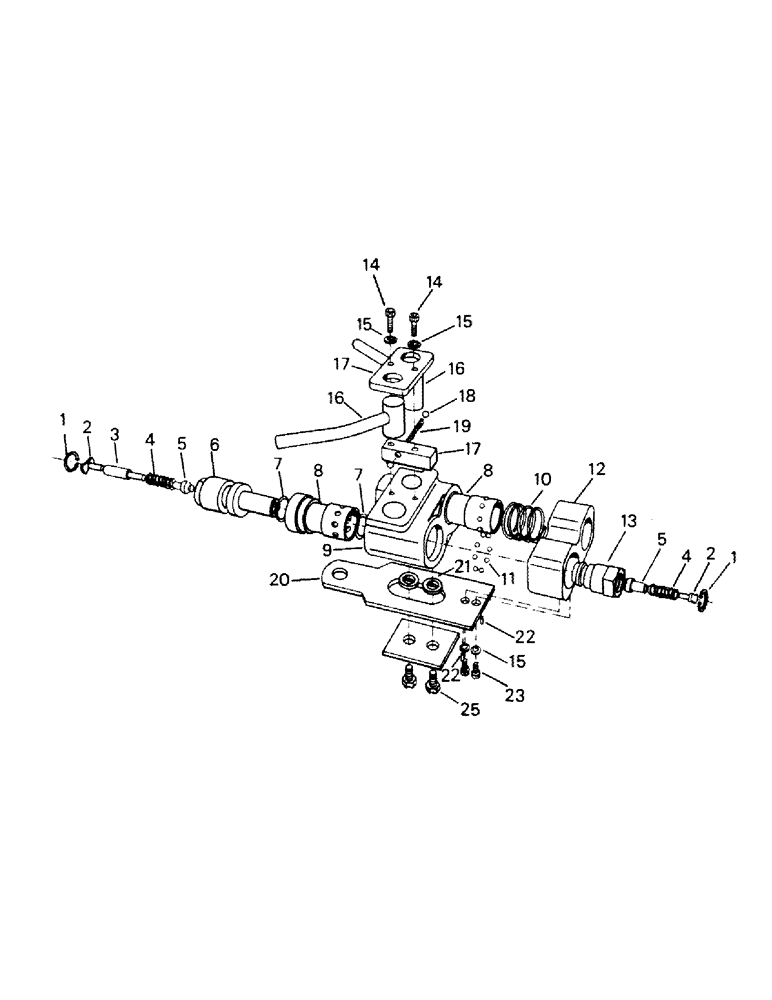

HYDRAULIC COUPLER ASSY., Includes: Ref. 1 - 25

1шт.

This coupler P/N 18-1608 has pipe plug ports.

1шт.

1

18-1641

OIL SEAL

RETAINING RING

4шт.

2

18-1642

PISTON STOP & GUIDE

4шт.

3

18-1643

PISTON EXTENSION

2шт.

4

18-1644

PISTON SPRING

4шт.

5

18-1645

PISTON

4шт.

6

18-1646

MALE SLEEVE

2шт.

7

18-1647

O-RING

4шт.

8

18-1648

SLEEVE

FEMALE SLEEVE

2шт.

9

18-1649

BODY

1шт.

10

18-1650

SLEEVE SPRING

2шт.

11

18-1651

BALL

STEEL BALL, 3/16

16шт.

12

18-1652

COUPLER END

1шт.

13

18-1653

TIP

MALE TIP ASSY. (includes 1, 2, 4 & 5)

2шт.

14

19-1016

SOCKET HEAD SCREW, 1/4 x 1

2шт.

15

19-870

WASHER, LOCK,Ext-Int Tooth, 3/8"

WASHER

4шт.

16

18-1654

CAM

& HANDLE ASSY. R.H.

1шт.

18-1655

CAM

& HANDLE ASSY. L.H.

1шт.

17

18-1656

X

COVER PLATE & RETAINER BLOCK

18шт.

18

18-1657

STEEL BALL, 1/4

2шт.

19

18-1658

SPRING

1шт.

20

18-1659

SLIDE

1шт.

21

18-1660

BUSHING

slide

2шт.

22

18-1730

ROLL PIN, 1/8 x 1/2

2шт.

23

19-1017

SOCKET HEAD SCREW, 1/4 x 1/2

2шт.

24

18-1661

HOLD DOWN PLATE

1шт.

25

19-16

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

CAPSCREW, 3/8 x 3/4 UNC

2шт.
