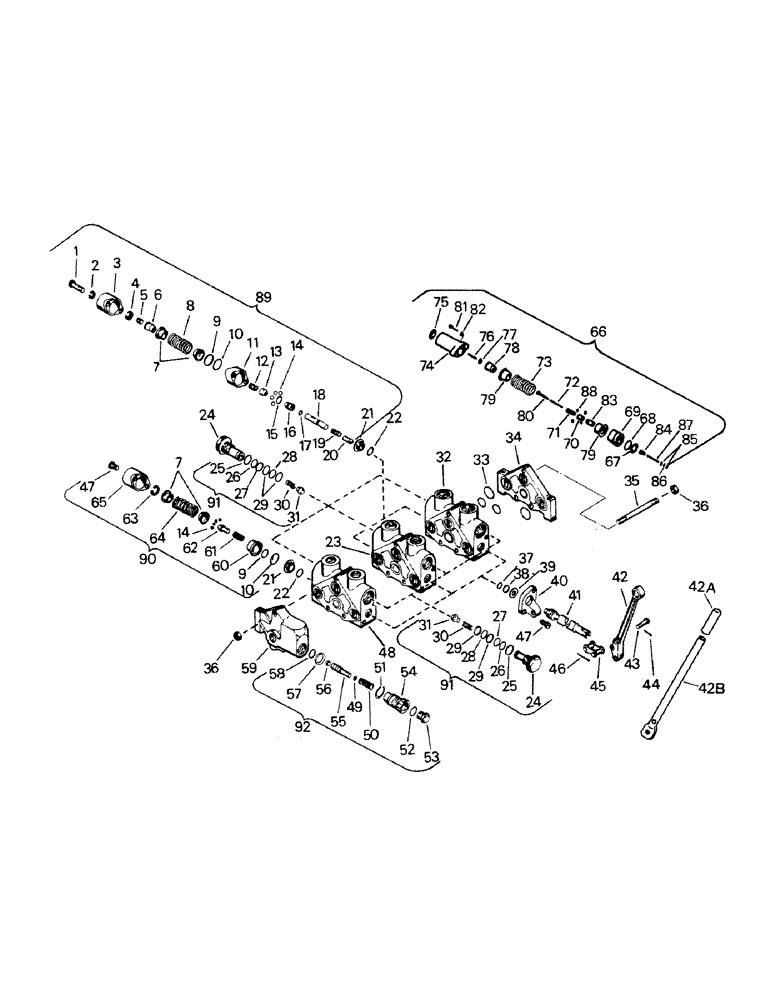

Запчасти Case IH ST210 (08-13) - CONTROL VALVE (07) - HYDRAULICS

18-1133

VALVE

CONTROL VALVE (4 spool)

1шт.

When ordering a complete control valve order P/N 01-2361 (3 spool) or P/N 01-3549, must be ordered

1шт.

18-1131

VALVE

CONTROL VALVE (3 spool)

1шт.

When ordering a complete control valve order P/N 01-2361 (3 spool) or P/N 01-3549, must be ordered

1шт.

18-1134

FITTING

KIT, 3 to 4 spool

1шт.

18-881

SECTION, 4-way float

1шт.

18-873

VALVE

SECTION, 4-way knockout

2шт.

1

18-840

BOLT

SCREW

2шт.

2

18-885

WASHER

2шт.

3

18-830

COWL

BONNET

1шт.

4

18-829

NUT

1шт.

5

18-828

SCREW, set

1шт.

6

18-827

ADAPTOR, spool

1шт.

7

18-826

COLLAR ASSY.

COLLAR STOP

4шт.

8

18-884

SPRING

1шт.

9

NSS

NOT SOLD SEPARAT

SEAL, quad ring

1шт.

10

NSS

NOT SOLD SEPARAT

SEAL, o-ring

1шт.

11

18-831

ADAPTOR, detent

1шт.

12

18-824

SPRING

1шт.

13

18-823

FOLLOWER

1шт.

14

18-822

BALL

7/32 dia.

8шт.

15

NSS

NOT SOLD SEPARAT

SEAL, o-ring

1шт.

16

18-816

PISTON

1шт.

17

NSS

NOT SOLD SEPARAT

SEAL, o-ring

1шт.

18

18-821

PIN, relief adj.

1шт.

19

18-815

SPRING, adj, relief

1шт.

20

18-814

POPPET

1шт.

21

18-895

LARGE PLATE

PLATE

1шт.

22

NSS

NOT SOLD SEPARAT

SEAL, o-ring

1шт.

23

NSS

NOT SOLD SEPARAT

HOUSING, knockout section

1шт.

24

18-886

PLUG

HOUSING, knockout section

1шт.

25

NSS

NOT SOLD SEPARAT

SEAL

1шт.

26

NSS

NOT SOLD SEPARAT

SEAL, o-ring

1шт.

27

NSS

NOT SOLD SEPARAT

WASHER, backup

1шт.

28

NSS

NOT SOLD SEPARAT

SEAL, o-ring

1шт.

29

NSS

NOT SOLD SEPARAT

WASHER

1шт.

30

18-893

SPRING

1шт.

31

18-891

VALVE POPPET

POPPET

1шт.

32

NSS

NOT SOLD SEPARAT

HOUSING, knockout section

1шт.

33

NSS

NOT SOLD SEPARAT

SEAL, o-ring

8шт.

34

18-911

COVER, right

1шт.

35

18-908

STUD

3 section

3шт.

18-1037

STUD,Flg, 3/8" x 9 1/2"

4 section

3шт.

18-1038

STUD,3/8" - 24 x 11.50"

5 section

3шт.

36

18-909

LOCK NUT

NUT

6шт.

37

NSS

NOT SOLD SEPARAT

SEAL, o-ring

6шт.

38

NSS

NOT SOLD SEPARAT

WASHER, backup

6шт.

39

NSS

NOT SOLD SEPARAT

RETAINER, seal

6шт.

40

18-836

BRACKET

3шт.

41

NSS

NOT SOLD SEPARAT

SPOOL

3шт.

42

18-832

HANDLE (early style)

3шт.

42a

2-1486

HANDLE (later style)

3шт.

42b

2-1485

LEVER

3шт.

43

18-834

CLEVIS PIN

PIN

3шт.

44

18-833

PIN

COTTER PIN

3шт.

45

18-894

LINK

3шт.

46

18-835

PIN, SPLIT (COTTER)

COTTER KEY

3шт.

47

18-839

SCREW

8шт.

48

NSS

NOT SOLD SEPARAT

HOUSING, float section

1шт.

49

18-919

SHIM

1шт.

18-1510

SHIM

1шт.

18-1509

SHIM

1шт.

50

18-920

SPRING

relief

1шт.

51

NSS

NOT SOLD SEPARAT

SEAL, o-ring

1шт.

52

NSS

NOT SOLD SEPARAT

SEAL, o-ring

1шт.

53

18-923

PLUG

CAP, relief spring

1шт.

54

18-924

VALVE PRESSURE RELIE

BODY, relief valve

1шт.

55

18-918

VALVE POPPET

PISTON

1шт.

56

NSS

NOT SOLD SEPARAT

SEAL

1шт.

57

NAP

WASHER, backup

1шт.

58

NSS

NOT SOLD SEPARAT

SEAL

1шт.

59

18-910

COVER, left

1шт.

60

18-903

SLEEVE

float detent

1шт.

61

18-904

SPRING

14шт.

62

18-912

TAPPET

FOLLOWER

1шт.

63

18-900

RING, retainer

1шт.

64

18-902

SPRING

1шт.

65

18-901

BONNET, float

1шт.

18-962

SEAL KIT

KIT, complete for float bank or spool section of detent bank only (Refs. 22, 25-29, 33, 37, 38 & 39)

1шт.

18-1748

SEAL KIT

KIT FOR DETENT PORTION OF DETENT BANK (Refs. 4,9, 10, 15,16, 17,18)

1шт.

18-1418

SEAL KIT

SEAL KIT RELIEF BODY (Refs. 51, 52, 57 & 58)

1шт.

18-1417

SEAL

SEAL KIT RELIEF BODY (Refs. 55 & 56) order both 18-962 & 18-983 to completely service detent bank.

1шт.

66

1-3549

LEVER

POSITIONER ASSEMBLY, knockout (later style)

3шт.

67

NSS

NOT SOLD SEPARAT

SEAL, o-ring

3шт.

68

NSS

NOT SOLD SEPARAT

RING, back-up

3шт.

69

NSS

NOT SOLD SEPARAT

SLEEVE, detent

3шт.

70

NSS

NOT SOLD SEPARAT

FOLLOWER, ball

3шт.

71

NSS

NOT SOLD SEPARAT

SPRING

3шт.

72

NSS

NOT SOLD SEPARAT

SPRING

3шт.

73

NSS

NOT SOLD SEPARAT

SPRING

3шт.

74

NSS

NOT SOLD SEPARAT

BONNET

3шт.

75

2-3815T1

PLUG

bonnet

2шт.

76

NSS

NOT SOLD SEPARAT

SET SCREW

77шт.

77

NSS

NOT SOLD SEPARAT

LOCK NUT

3шт.

78

NSS

NOT SOLD SEPARAT

COLLAR, spool

3шт.

79

NSS

NOT SOLD SEPARAT

COLLAR, spring

3шт.

80

NSS

NOT SOLD SEPARAT

GUIDE, SPRING

3шт.

81

NSS

NOT SOLD SEPARAT

SCREW

3шт.

82

NSS

NOT SOLD SEPARAT

PLATE BEARING

3шт.

83

NSS

NOT SOLD SEPARAT

PLUNGER, knockout

3шт.

84

NSS

NOT SOLD SEPARAT

GUIDE, piston

3шт.

85

NSS

NOT SOLD SEPARAT

RING, backup

6шт.

86

NSS

NOT SOLD SEPARAT

SEAL, o-ring

3шт.

87

NSS

NOT SOLD SEPARAT

ROLLER, needle

3шт.

88

NSS

NOT SOLD SEPARAT

BALL, detent

4шт.

89

18-874

LEVER

POSITIONER ASSY., knockout

2шт.

90

18-882

FLOAT

POSITIONER ASSY., float

1шт.

91

18-876

PLUG

load check assy.

6шт.

THE SEAL KIT IS P/N 2-4786T1

1шт.

92

18-1703

VALVE, PRESSURE RELI

RELIEF ASSY.

1шт.
