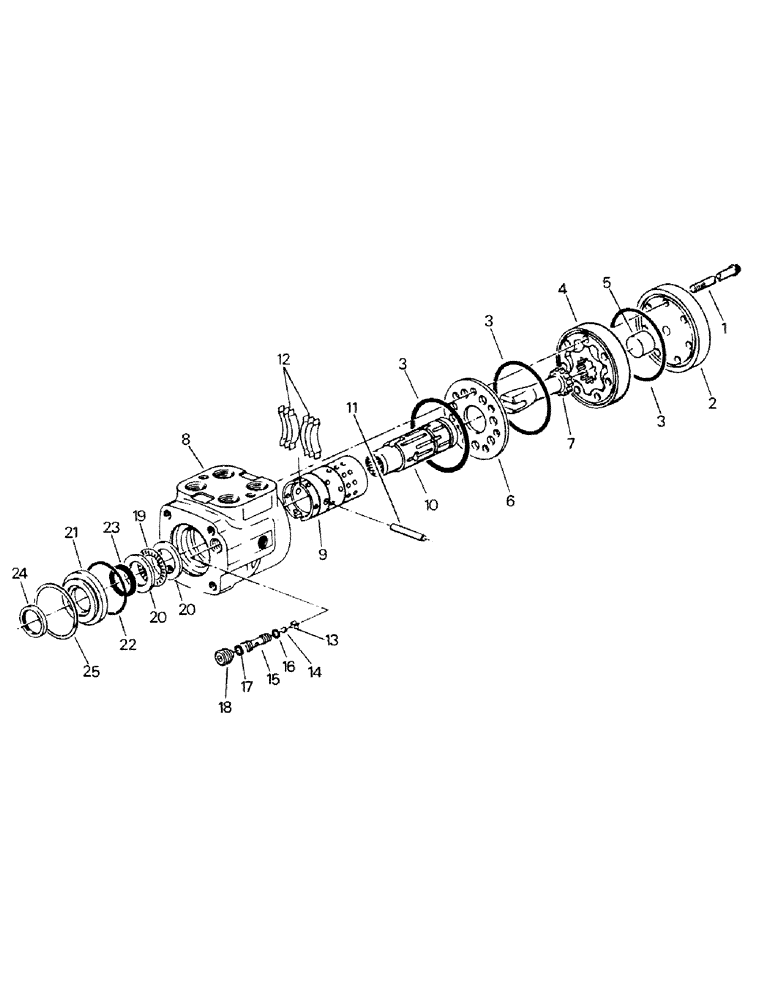

Запчасти Case IH ST210 (08-10) - STEERING CONTROL VALVE (07) - HYDRAULICS

2-1504

VALVE BLOCK

ORBITROL ASSEMBLY, consists of ref. nos. 1-25

1шт.

Old part number must be used on models prior to S/N break. New part number will fit models after S/N break only.

1шт.

1

18-960

SCREW

BOLT

7шт.

2

2-2422

KIT

CAP, end

1шт.

3

18-1680

O-RING,0.07" Thk x 2.864" ID, -40, Cl 5, 75 Duro

3шт.

4

2-2054

GEAR SET

1шт.

5

2-2056

SPACER

1шт.

6

18-1686

PLATE

spacer

1шт.

7

18-128

DRIVE

1шт.

2-2058

CONTROL

PARTS ASSEMBLY, consists of ref. nos. 8-12

1шт.

8

NSS

NOT SOLD SEPARAT

HOUSING

1шт.

9

NSS

NOT SOLD SEPARAT

SLEEVE, control

1шт.

10

NSS

NOT SOLD SEPARAT

SPOOL, control

1шт.

11

18-157

PIN

1шт.

12

18-1689

SPRING

CENTERING SPRING

6шт.

13

2-2059

RETAINER

check ball

1шт.

14

2-2060

BALL

check

1шт.

15

2-2061

SEAT

check ball

1шт.

16

18-150

SEAL,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

17

2-2062

SEAL

O-RING

1шт.

18

2-2063

SET SCREW

SET SCREW

1шт.

19

18-1693

NEEDLE BEARING

BEARING, needle thrust

1шт.

20

2-2064

RING RACE

RACE, bearing

2шт.

21

18-1695

BUSHING

seal gland

1шт.

22

18-1694

O-RING,0.139" Thk x 1.859" ID, -225, Cl 5, 75 Duro

1шт.

23

18-144

SEAL

quad ring

1шт.

24

18-137

OIL SEAL

oil

1шт.

25

18-1696

SEALING RING

SNAP RING

1шт.
