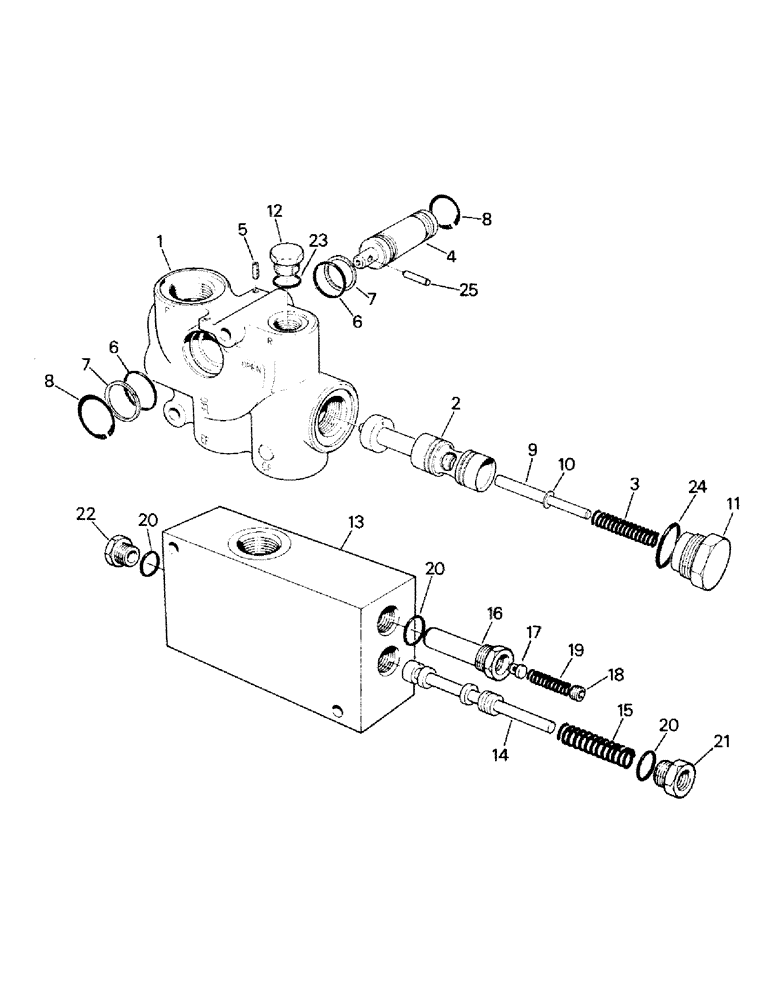

Запчасти Case IH ST210 (08-08) - FLOW DIVIDER AND PRIORITY VALVE (07) - HYDRAULICS

18-1505

DIVIDER

FLOW DIVIDER ASSEMBLY, Includes: Ref. 1 - 12

1шт.

1

18-1614

DIVIDER

VALVE BODY

1шт.

2

18-1615

PISTON

1шт.

3

18-1616

SPRING

1шт.

4

18-1617

VALVE

CONTROL

1шт.

5

18-1618

SCREW

SET SCREW

1шт.

6

31-1457

O-RING

2шт.

7

1-8180

RING

backup

2шт.

8

18-1621

RING, SNAP

SNAP RING

2шт.

9

18-1622

ROD

RETAINING ROD

1шт.

10

18-1623

WASHER

1шт.

11

18-1624

PLUG

ASSY. W/O-RING

1шт.

12

31-336

PLUG

ASSY. W/0-RING

1шт.

35-1218T91

SEAL KIT

KIT, seal flow divider (includes ref. 6, 7, 23 & 24)

1шт.

1-2391

X

PRIORITY VALVE ASSEMBLY, consists of ref. nos. 13-22

1шт.

13

18-1600

VALVE

HOUSING

1шт.

14

18-1599

SPOOL

1шт.

15

18-1598

SPRING

3шт.

1-2392

FILTER CARTRIDGE

CARTRIDE ASSEMBLY, consists of ref. nos. 16-20

1шт.

16

NSS

NOT SOLD SEPARAT

BODY

1шт.

REPLACED BY 50-1289T91

1шт.

17

NSS

NOT SOLD SEPARAT

POPPET

1шт.

REPLACED BY 50-1289T91

1шт.

18

NSS

NOT SOLD SEPARAT

ADJUSTING SCREW

1шт.

REPLACED BY 50-1289T91

1шт.

19

NSS

NOT SOLD SEPARAT

SPRING

1шт.

REPLACED BY 50-1289T91

1шт.

20

18-1592

O-RING

3шт.

REPLACED BY 50-1289T91

1шт.

21

18-1591

PLUG

spring retainer

1шт.

22

18-1590

PLUG

ASSY. W/O-RING

1шт.

23

31-1335

O-RING,8-1, 90 Duro, .644" ID x .087" Thk

1шт.

24

31-1100

O-RING,14-1, 90 Duro, 1.048" ID x .116"" Thk

1шт.

25

456836

PIN,1/4" x 2 1/2", Coiled

1шт.
