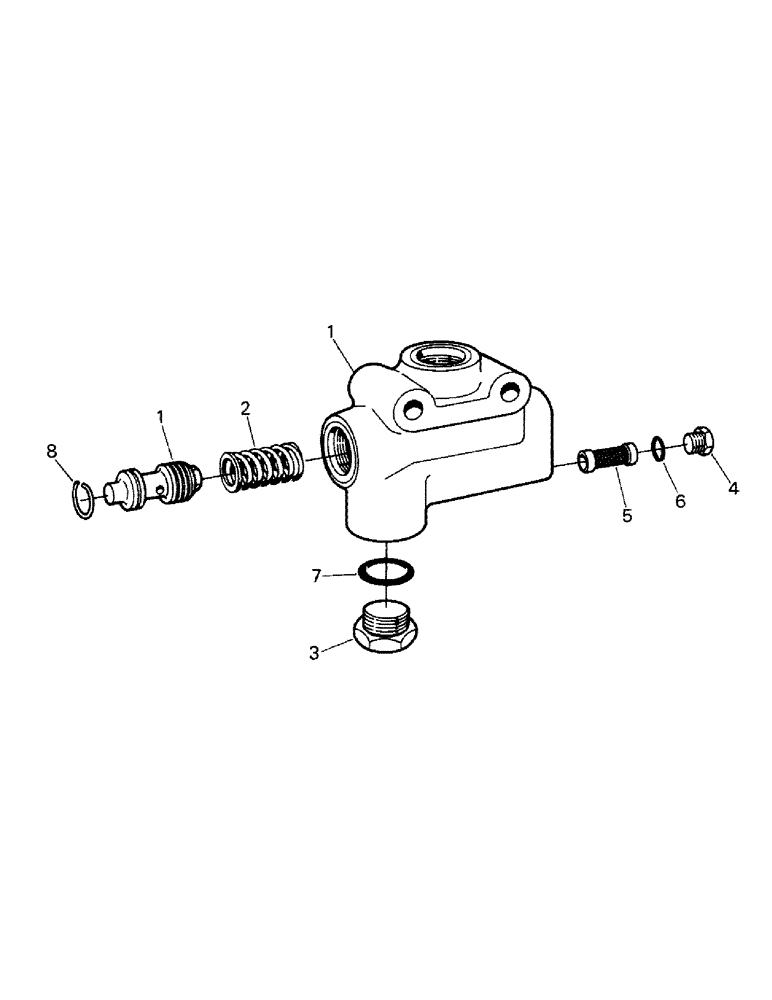

Запчасти Case IH ST210 (08-07) - RELIEF VALVE (07) - HYDRAULICS

50-1139T91

VALVE, PRESSURE RELI

RELIEF VALVE ASSY.Includes: Ref. 1 - 8

1шт.

1

NSS

NOT SOLD SEPARAT

CONTROL VALVE SUB. ASSY.

1шт.

2

50-1141T1

SPRING

1шт.

3

1-2198

PLUG

with o-ring

1шт.

4

31-1551

PLUG, with o-ring

1шт.

5

50-1143T1

SCREEN

FILTER

1шт.

6

31-1552

O-RING,0.064" Thk x 0.301" ID, -903, Cl 6, 90 Duro

1шт.

7

31-644

O-RING,10-1, 90 Duro, .755" ID x .097" Thk

1шт.

8

50-1142T1

RING, SNAP

1шт.
