(08-05) - HYDRAULIC PUMP

Запчасти Case IH ST210 (08-05) - HYDRAULIC PUMP (07) - HYDRAULICS

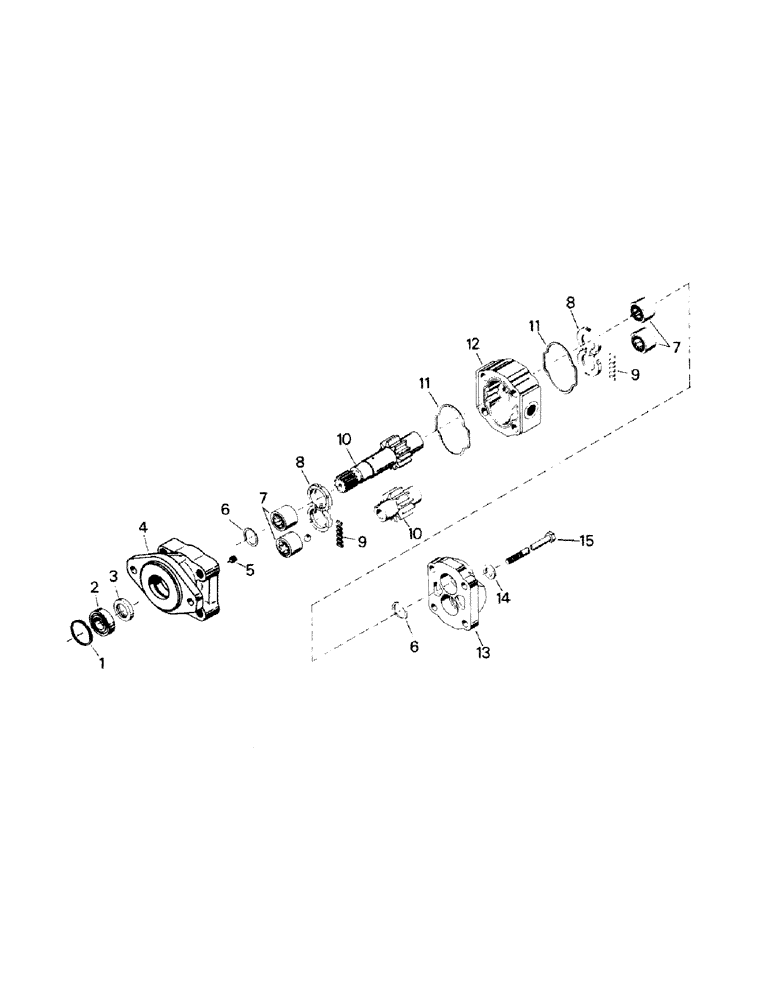

Схема запчастей Case IH ST210 - (08-05) - HYDRAULIC PUMP (07) - HYDRAULICS
5
14
13
2
12
9
3
11
1
10
4
8
9
6
11
15
7
10
8
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

18-1508

PUMP, HYDRAULIC

PUMP ASSEMBLY, Includes: Ref. 1 - 15

1шт.

1

18-968

RING

snap

1шт.

2

18-970

BALL BEARING

BEARING, shaft

1шт.

3

18-1573

SEAL

double clip

1шт.

4

18-1572

COVER

SHAFT END COVER

1шт.

5

18-772

PLUG

2шт.

6

18-771

SEALING RING

ring

1шт.

7

18-773

ROLLER BEARING

S

4шт.

8

18-774

LARGE PLATE

THRUST PLATE

2шт.

9

18-775

SEAL

pocket

12шт.

10

18-1575

GEAR-SET

GEAR SET Keyway shaft

1шт.

19-899 is key to fit Ref. no. 10

1шт.

11

18-777

GASKET,Square, 3.17mm Thk x 101.6mm ID, 70 Duro

SEAL, gasket

2шт.

12

18-1574

HOUSING

GEAR HOUSING

1шт.

13

18-779

PORT

END COVER

1шт.

14

19-488

WASHER

4шт.

15

19-764

BOLT,Hex, 5/8" - 11 x 5 1/4", Gr 5

CAPSCREW, 5/8 x 5-1/4 UNC

4шт.
