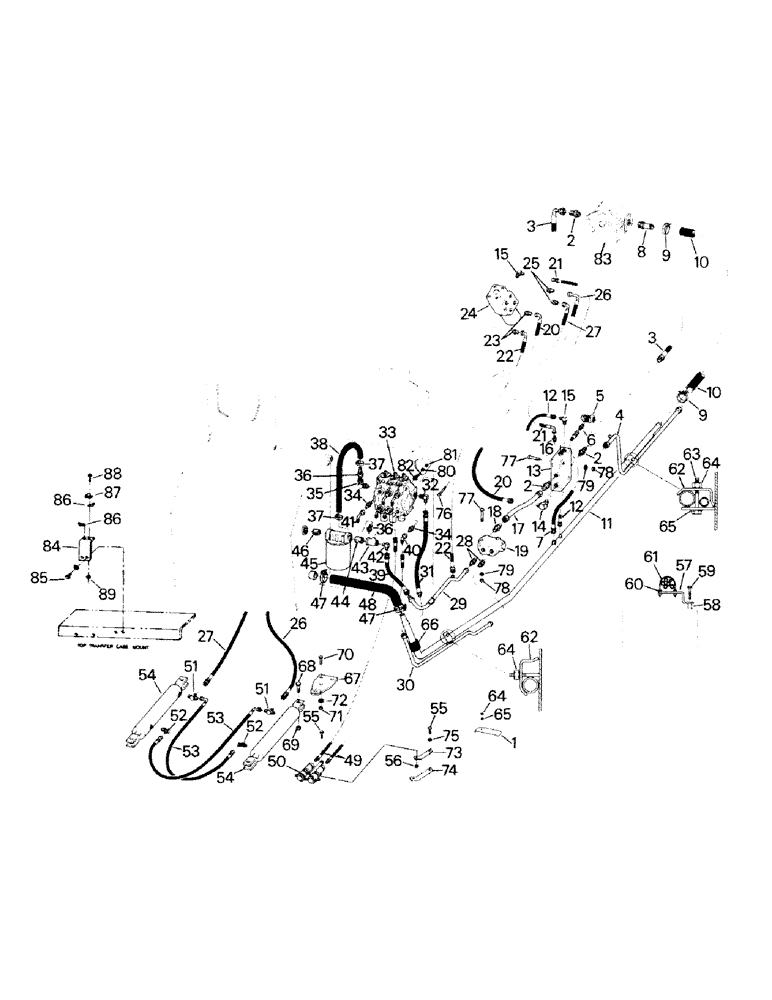

Запчасти Case IH ST210 (08-02) - HYDRAULIC SYSTEM (07) - HYDRAULICS

1

33-224

BRACKET

1шт.

2

31-464

HYD CONNECTOR,1 5/16"-12, 37 Degree x 1 1/16"-12, O-Ring

FITTING (D.S. 12)

3шт.

3

18-1577

HOSE ASSY.

1шт.

4

18-1552

PRESSURE TUBE 1" OD

1шт.

5

18-1542

VALVE, PRESSURE RELI

RELIEF VALVE

1шт.

50-1139T91

VALVE, PRESSURE RELI

RELIEF VALVE

1шт.

6

18-570

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

FITTING (D.S. 10)

1шт.

7

18-1581

HOSE ASSY.

1шт.

8

31-362

ADAPTER

ADAPTOR (D.S. 16)

1шт.

9

1-1348

CLAMP,#32, 1.87"-2.18", T-Bolt

2шт.

10

32-158

HOSE

1шт.

11

18-1536

HOSE

RETURN TUBE

1шт.

12

18-1536

HOSE

ASSY.

1шт.

13

1-2391

X

PRIORITY VALVE

1шт.

14

18-569

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, O-Ring

FITTING

1шт.

15

18-1538

ELBOW,90 Degree, 7/16"-20, 37 Degree x 7/16"-20, O-Ring

FITTING (D.S. 4)

2шт.

Adaptor was a straight fitting P/N 18-1539 when used with the 18-1507 orbitrol. On the 18-1507 orbitrol, the fifth port is located in the center of the other four ports. On the 02-1504 orbitrol, the fifth port is located on the side of the orbitrol.

1шт.

16

18-1539

HYD CONNECTOR,7/16"-20, 37 Degree x 7/16"-20, O-Ring

FITTING (D.S. 4)

1шт.

17

18-1551

PRESSURE TUBE 1" OD

1шт.

18

31-369

HYD CONNECTOR,1 5/16"-12, 37 Degree x 1 5/16"-12, O-Ring

FITTING (D.S. 16)

1шт.

19

18-1505

DIVIDER

FLOW DRIVER

1шт.

20

18-1336

HOSE

ASSY.

1шт.

21

18-1576

HOSE

ASSY. (used with 18-1507 orbitrol)

1шт.

18-1537

HOSE ASSY.

HOSE ASSY, (used with 02-1504 orbitrol)

1шт.

22

18-1580

HOSE ASSY.

1шт.

23

31-462

HYD CONNECTOR,7/8"-14, 37 Degree x 3/4"-16, O-Ring

FITTING (D.S. 8)

2шт.

24

18-1507

HYDRAULIC STEERING

ORBITROL (D) (100-00536 & below)

1шт.

2-1504

VALVE BLOCK

ORBITROL (D) (100-00537 & above)

1шт.

25

31-329

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

FITTING (D.S. 8)

2шт.

26

32-206

HOSE

ASSY.

1шт.

27

18-1579

HOSE ASSY.

1шт.

28

31-610

HYD CONNECTOR,1 1/16"-12, 37 Degree x 1 5/16"-12, O-Ring

FITTING (D.S. 16)

2шт.

29

18-1550

PRESSURE TUBE 0.75" OD

1шт.

30

18-1549

TUBE ASSY.,0.75" OD

PRESSURE TUBE

1шт.

31

32-153

HOSE

ASSY.

1шт.

32

31-326

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 1/16"-12, O-Ring

FITTING (D.S. 10)

1шт.

33

1-2361

VALVE

1шт.

34

31-330

HYD CONNECTOR,3/4"-16, 37 Degree x 7/8"-14, O-Ring

FITTING (D.S. 10)

6шт.

35

31-327

ADAPTER

FITTING (D.S. 12)

1шт.

36

31-318

HOSE

FITTING

2шт.

37

32-1360

CLAMP

2шт.

38

32-156

HOSE

1шт.

39

18-1578

HOSE ASSY.

1шт.

40

31-331

ADAPTER,90 Degree, 37 Degree Fl, 3/4"-16 Male x 3/4"-16 Fem

FITTING (short)

3шт.

41

31-328

FITTING

3шт.

42

31-399

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 3/4"-14, NPTF

FITTING

1шт.

43

31-310

REDUCER TEE

1шт.

44

31-309

NIPPLE

1шт.

45

18-497

FILTER

1шт.

46

31-26

NIPPLE, LUBE

NIPPLE

1шт.

47

32-135

CLAMP,#44, 2.25"-2.56", T-Bolt

2шт.

48

32-159

HOSE

1шт.

49

1-1053

HOSE

ASSY.

6шт.

50

1-7135

COUPLING

HYD. COUPLER, new (see p. 8-20)

2шт.

1-8085

COUPLING

HYD. COUPLER, old (see p. 8-19)

2шт.

51

31-507

TEE,3/4"-16, 37 Degree x 3/4"-18, O-Ring Run

FITTING (D.S. 8)

2шт.

52

31-324

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, O-Ring

FITTING (D.S. 8)

2шт.

53

32-176

HOSE

ASSY.

2шт.

54

18-1297

CYLINDER

STEERING CYLINDERS

2шт.

55

19-45

BOLT,1/2" - 13 x 1 1/2", Gr 5

CAPSCREW

5шт.

56

19-82

LOCK NUT

3шт.

57

5-35

HOSE BRACKET

1шт.

58

4-118

SPACER

1шт.

59

19-22

BOLT,Hex, 3/8" - 16 x 2 1/2", Gr 5

CAPSCREW

1шт.

60

19-88

NUT,5/16"-24, G5

4шт.

61

19-1049

U-BOLT,5/16" - 18 x 50.80mm W x 76.20mm L

1шт.

62

1-267

TUBE CLAMP

2шт.

63

19-25

BOLT,3/8" - 16 x 3 1/2", Gr 5

SCREW

1шт.

64

232-4136

LOCK NUT,3/8"-16, GC

NUT

4шт.

65

19-107

WASHER

5шт.

66

1-367

INSULATION, suction line

1шт.

67

3-1001

PLATE

STEERING MT. PLATE

4шт.

68

19-862

BOLT,Hex, 1 1/8" - 7 x 4", Gr 8

4шт.

69

19-863

LOCK NUT,1 1/8"-7, GC

NUT

4шт.

70

19-216

BOLT,Hex, 3/4" - 10 x 3", Gr 5

12шт.

71

19-85

LOCK NUT

12шт.

72

19-112

WASHER,3/4"

12шт.

73

4-583

BRACKET

SHORT

1шт.

74

4-584

BRACKETS LONG

2шт.

75

19-109

WASHER,1/2"

2шт.

76

19-736

CAPSCREW Hex, 7/16"-14 x 4", G5

3шт.

77

19-1007

BOLT,Hex, 5/16" - 18 x 3", Gr 5

CAPSCREW

4шт.

78

19-508

LOCK NUT

4шт.

79

19-700

WASHER,5/16"

4шт.

80

19-643

WASHER,7/16", SAE

3шт.

81

231-4117

LOCK NUT,7/16"-14, GB

NUT

3шт.

82

18-511

MOUNTING PARTS

MOUNT, rubber

3шт.

83

18-1508

PUMP, HYDRAULIC

1шт.

84

1-306

HYDRAULIC HOSE MOUNT

1шт.

85

19-17

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

CAPSCREW, 3/8 x 1 UNC

2шт.

86

32-67

CLAMP

2шт.

87

32-70

CLAMP

1шт.

88

19-159

SCREW,Sl Rnd Hd, #10 - 24 x 3/4", Gr 2

MACHINE SCREW, #10 x 3/4 UNC

2шт.

19-567

NUT,#10-24

#10 UNC

2шт.
