Запчасти Case IH ST210 (04-33) - DANA AXLE ASSEMBLY (04) - Drive Train

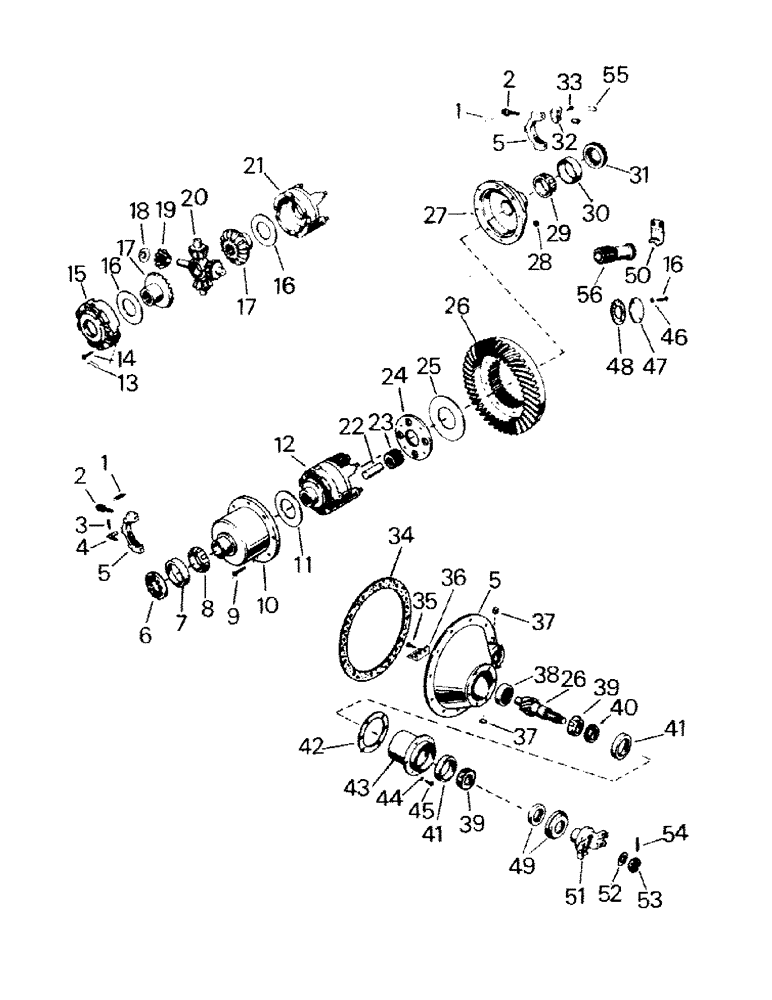

Схема запчастей Case IH ST210 - (04-33) - DANA AXLE ASSEMBLY (04) - Drive Train
28
26
16
54
16
2
51
48
56
2
7
30
6
53
1
26
50
47
5
38
29
5
8
21
23
14
40
16
55
33
19
49
9
15
17
25
11
34
4
1
13
18
36
17
24
32
20
42
10
46
39
12
41
52
37
22
43
45
27
5
39
44
37
3
35
41
31

Артикул

Название

Примечание

Количество

1

NAP

LOCK WIRE

2шт.

2

16-476

BOLT,Hex, 3/8" - 16 x 4 41/64", Gr 5

CAPSCREW

4шт.

3

16-477

COTTER PIN

1шт.

4

16-478

LOCK, adjuster (R.H.)

1шт.

5

16-1488

ASSEMBLY, differential carrier & caps

1шт.

6

16-480

ADJUSTER, bearing (R.H.)

1шт.

7

16-481

BEARING CAP

CUP, bearing (R.H.)

1шт.

8

16-482

BEARING

CONE, bearing (R.H.)

1шт.

9

16-391

BOLT

8шт.

10

16-392

CASE (R.H.)

1шт.

11

16-393

WASHER

3шт.

12

16-394

DIFFERENTIAL ASSEMBLY

1шт.

13

NAP

LOCK WIRE

1шт.

14

16-396

SCREW

CAPSCREW, differential case

8шт.

15

16-397

CASE

differential (R.H.)

1шт.

16

16-474

CAPSCREW

1шт.

17

16-398

GEAR

differential side

2шт.

18

16-399

WASHER

4шт.

19

16-400

KIT

PINION, side

4шт.

20

16-401

KIT

SPIDER

1шт.

21

16-404

CASE

DIFFERENTIAL CASE & CLUTCH PLATE PINS

1шт.

22

16-405

PIN

idler pinion

4шт.

23

16-406

PINION

idler

4шт.

24

16-1487

PLATE, clutch

1шт.

25

16-408

WASHER

clutch plate

1шт.

26

16-1489

RING GEAR & PINION SET (6.34 CW ratio)

1шт.

16-986

RING GEAR & PINION SET (6.34 CCW ratio)

1шт.

27

16-410

CASE, gear (L.H.)

1шт.

28

16-411

NUT, case bolt

8шт.

29

16-412

BEARING

CONE, differential bearing (L.H.)

1шт.

30

16-413

BEARING

CUP, differential bearing (L.H.)

1шт.

31

16-1483

ADJUSTER, differential bearing (L.H.)

1шт.

32

16-416

LOCK (L.H.)

1шт.

33

16-417

CAPSCREW

2шт.

34

16-418

SCREW

GASKET, carrier

1шт.

35

16-419

CAPSCREW, oil pick-up trough

1шт.

36

16-420

TROUGH, oil pick-up (rear)

1шт.

16-1490

TROUGH, oil pick-up (front)

1шт.

37

16-421

PLUG

expansion

1шт.

38

16-424

BEARING, inner pinion

1шт.

39

16-1481

CONE

pinion bearing

1шт.

40

16-1412

SPACER

pinion bearing (.632)

1шт.

16-1413

SPACER

pinion bearing (.633)

1шт.

16-1414

SPACER, pinion bearing (.634)

1шт.

16-1416

SPACER

pinion bearing (.635)

1шт.

16-1418

SPACER

pinion bearing (.636)

1шт.

16-1422

SPACER

pinion bearing (.637)

1шт.

16-1426

SPACER

pinion bearing (.638)

1шт.

16-1430

SPACER

pinion bearing (.639)

1шт.

16-1434

SPACER

pinion bearing (.640)

1шт.

16-1438

SPACER

pinion bearing (.641)

1шт.

16-1440

SPACER

pinion bearing (.642)

1шт.

41

16-1493

BEARING, CUP

CUP, pinion bearing

2шт.

42

16-1485

SHIM, cage (.003)

1шт.

16-1497

SHIM, cage (.005)

1шт.

16-1496

SHIM, cage (.010)

1шт.

16-1495

SHIM, cage (.020)

1шт.

16-1494

SHIM, cage (.030)

1шт.

43

16-1486

PINION BEARING CAGE & CUP ASSEMBLY

1шт.

44

16-434

WASHER, LOCK

LOCK WASHER

6шт.

45

16-435

CAPSCREW

6шт.

46

16-473

WASHER

LOCK WASHER

2шт.

47

16-472

COVER SHIFT FORK

1шт.

48

16-471

GASKET, cover

1шт.

49

16-985

OIL SEAL

PINION OIL SEAL & RETAINER ASSEMBLY

1шт.

50

16-470

RETAINER, sun gear

1шт.

51

17-240

COMPANION FLANGE

1шт.

52

16-485

WASHER

1шт.

53

19-877

LOCK NUT

pinion

1шт.

54

16-487

COTTER PIN

1шт.

55

16-488

LOCK WIRE

2шт.

56

16-1484

SUN GEAR

1шт.

Выбрано товаров: 72
