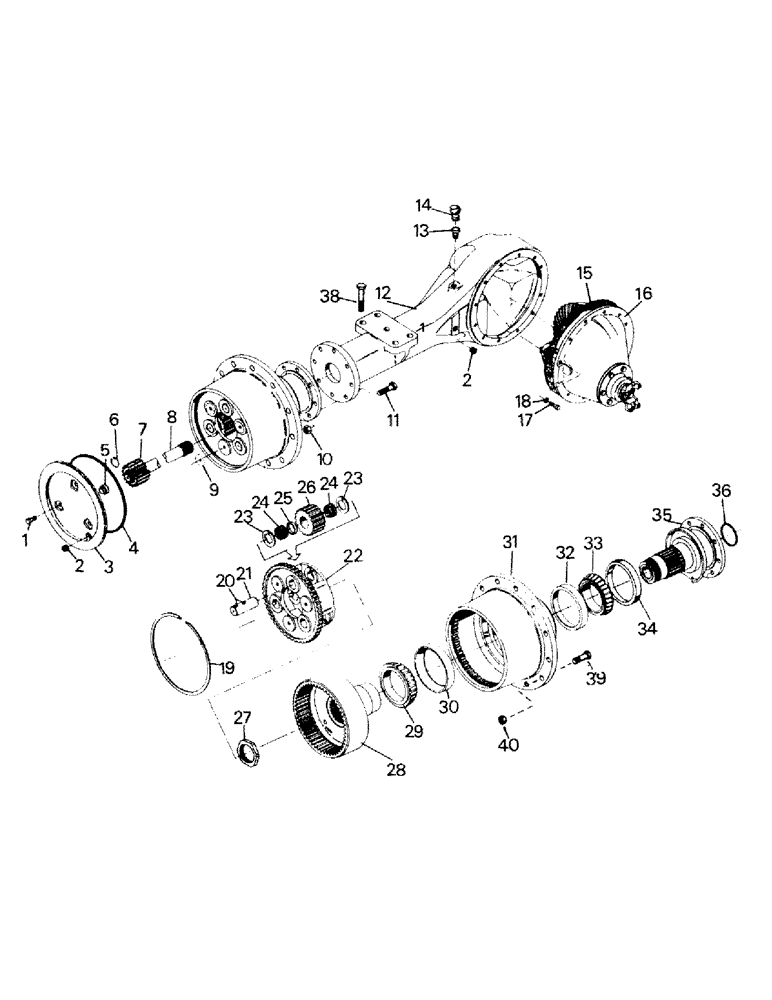

Запчасти Case IH ST210 (04-31) - DANA AXLE ASSEMBLY (04) - Drive Train

16-863

AXLE ASSY., front (6.34 CCW differential ratio)

1шт.

16-864

AXLE ASSY., rear (6.34 CW differential ratio)

1шт.

1

19-45

BOLT,1/2" - 13 x 1 1/2", Gr 5

CAPSCREW, 1/2 x 1-1/4 UNC

6шт.

2

16-383

PLUG

magnetic pipe (1/2" NPT)

4шт.

3

16-359

COVER, wheel end

2шт.

4

16-361

O-RING

wheel end cover

2шт.

5

16-360

BUTTON

thrust

2шт.

6

16-363

SNAP RING, sun gear

2шт.

7

16-364

GEAR

sun

2шт.

8

16-365

SHAFT

axle

2шт.

9

16-357

GASKET

wheel end

6шт.

10

19-172

X

LOCK NUT, 3/4 UNF

16шт.

11

19-837

BOLT,Hex, 3/4" - 16 x 3", Gr 8

CAPSCREW, 3/4 x 3 UNF

16шт.

12

16-382

AXLE HOUSING

1шт.

13

31-510

BUSHING, reducer 1/2 x 1/8 NPT

1шт.

14

16-22

BREATHER

1шт.

15

16-418

SCREW

GASKET, differential

1шт.

16

16-39

DIFFERENTIAL ASSY., 6.43 CW ratio

1шт.

16-1491

REAR DIFFERENTIAL ASSY., 6.43 CW ratio

1шт.

16-1492

FRONT DIFFERENTIAL ASSY., 6.34 CCW ratio

1шт.

17

19-34

BOLT,Hex, 7/16" - 14 x 1 1/2", Gr 5

CAPSCREW, 1/2 x 1-3/4 UNC

12шт.

18

19-119

LOCK WASHER,1/2"

1/2"

12шт.

19

16-362

SNAP RING, planetary gear carrier

2шт.

16-1801

PLANETARY GEAR CARRIER ASSY., Includes: Ref. 20 - 26

2шт.

20

16-74

BALL

steel (.375 dia)

6шт.

21

16-366

SHAFT

planetary gear

6шт.

22

16-371

CARRIER

planetary gear

2шт.

23

16-367

WASHER

thrust

12шт.

24

NSS

NOT SOLD SEPARAT

BEARING, needle (not sold separately - see Ref. 37)

336шт.

25

NSS

NOT SOLD SEPARAT

SPACER, needle (not sold separately - see Ref. 37)

6шт.

26

16-369

GEAR

planetary

6шт.

27

16-502

NUT

STAKE NUT

2шт.

28

16-372

RING GEAR

& CARRIER ASSY.

2шт.

29

16-85

BEARING

CONE, bearing (outer)

2шт.

30

16-86

BEARING, CUP

CUP, bearing (outer)

2шт.

31

16-373

HOUSING, wheel hub

2шт.

32

16-16

BEARING

CUP, bearing (inner)

2шт.

33

16-17

BEARING CONE

CONE, bearing (inner)

2шт.

34

16-599

OIL SEAL

2шт.

35

16-378

SLINGER

SPINDLE & SLINGER ASSEMBLY

2шт.

36

16-381

O-RING

spindle

2шт.

37

35-78

SPACER

NEEDLE BEARING & SPACER KIT

2шт.

38

19-315

BOLT,Hex, 7/8" - 14 x 3 1/2", Gr 5

AXLE BOLT, 7/8 x 3-1/2 UNF

8шт.

231-46114

LOCK NUT,7/8"-14, GB

NUT, 7/8 UNF

8шт.

39

19-584

BOLT

LUG BOLT, 7/8 x 3 UNF

24шт.

40

19-261

NUT,7/8" - 14, Gr 5

LUG NUT, 7/8 UNF

24шт.
