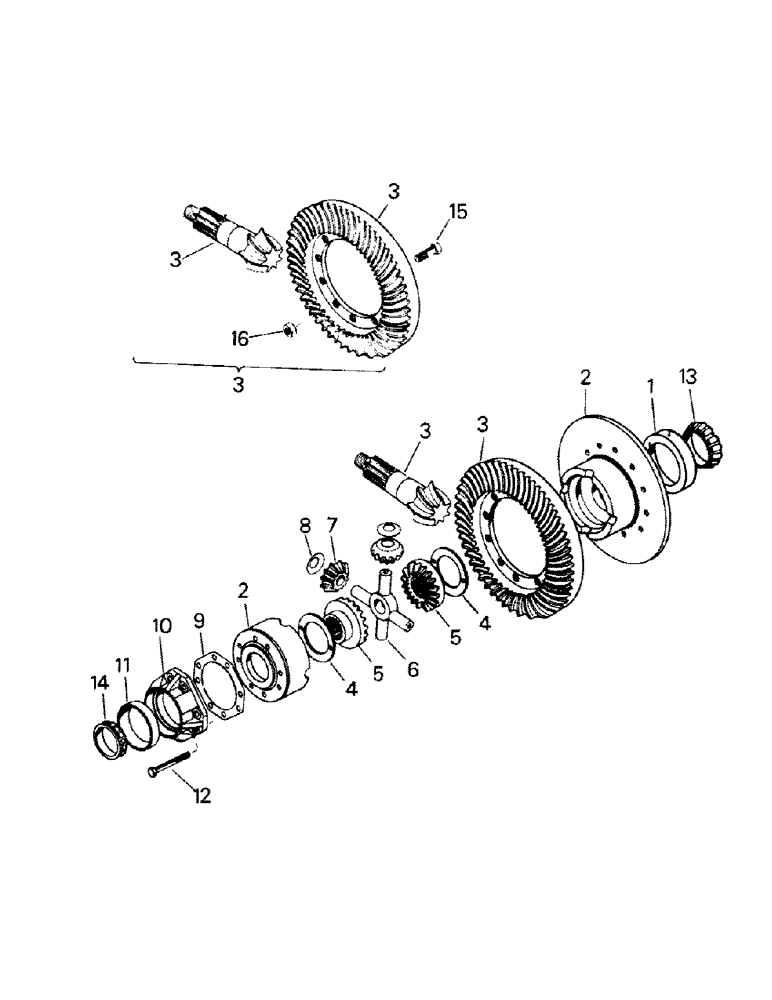

Запчасти Case IH ST210 (04-30) - ADJUSTABLE AXLE DIFFERENTIAL (04) - Drive Train
3
16
4
3
11
5
15
4
2
9
3
7
13
6
3
3
12
8
10
1
5
2
14
№
Артикул
Название
Примечание
Количество
16-639
DIFFERENTIAL & PINION ASSY., front axle, Includes: Ref. 1 - 12
1шт.
16-705
DIFFERENTIAL & PINION ASSY., rear axle, Includes: Ref. 1 - 12
1шт.
1
16-640
BEARING CUP
1шт.
2
16-655
DIFFERENTIAL CASE ASSEMBLY (includes ref. 1)
1шт.
16-706
GEAR & PINION SET, rear
1шт.
4
16-646
SHER
2шт.
5
16-645
GEAR
2шт.
6
16-647
SPIDER
1шт.
7
16-648
PINION
4шт.
8
16-649
WASHER
4шт.
9
16-644
SHIM
1шт.
10
16-642
ADAPTOR, differential gear case (includes ref. 11)
1шт.
11
16-643
BEARING, CUP
BEARING CUP
1шт.
12
16-641
BOLT
16шт.
13
16-621
BEARING, ROLLER
BEARING CONE
1шт.
14
16-622
TAPERED BEARING
BEARING CONE
1шт.
15
16-651
BOLT
12шт.
16
16-652
NUT
12шт.
Выбрано товаров: 19
