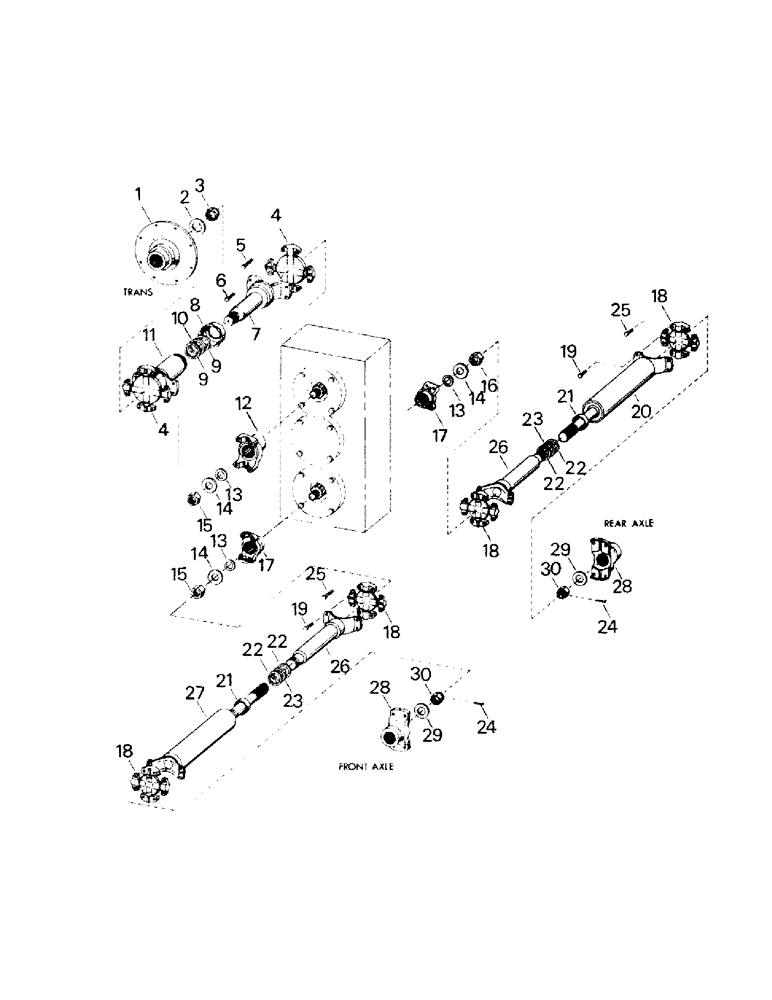

Запчасти Case IH ST210 (04-25) - ST 210 DRIVESHAFT (04) - Drive Train

17-130

SPARE PART DRIVE, top front

1шт.

17-109

SPARE PART Rear

1шт.

2-1312

DRIVE SHAFT

Rear, (S/N 100-00500 & above)

1шт.

17-111

DRIVE SHAFT

Bottom front

1шт.

1

2-1311

DRIVE SHAFT

Bottom front

1шт.

2

(S/N 100-00500 & above)

1шт.

3

12-2056

THIN NUT,3/4"-12, Thin

COMPANION FLANGE (replaces 1-1797)

1шт.

12-2056

THIN NUT,3/4"-12, Thin

WASHER (replaces 12-435)

1шт.

12-2056

THIN NUT,3/4"-12, Thin

FLANGE (only on transmission P/N 12-1989)

1шт.

12-2056

THIN NUT,3/4"-12, Thin

FLANGE (used on all other transmissions)

1шт.

4

17-261

BEARING

& SPIDER KIT

2шт.

5

19-477

BOLT,Hex, 1/2" - 20 x 2", Gr 8

8шт.

6

A12870

BOLT,Hex, 7/16" - 20 x 1 1/16"

CAPSCREW, 7/16 x 1-1/16 UNF

8шт.

7

NSS

NOT SOLD SEPARAT

TUBE ASSEMBLY

1шт.

8

17-170

CAP

STUFFING

1шт.

9

17-171

CAP

WASHER

2шт.

10

17-172

CAP

SEAL

1шт.

11

17-168

SPARE PART

1шт.

12

17-112

SPARE PART Top

1шт.

13

2-39

GASKET

Drive yoke

3шт.

14

2-34

WASHER

Drive yoke

3шт.

15

14-59T1

NUT

(RH)

2шт.

16

65-30

NUT

(LH)

1шт.

17

17-110

NO LONGER SERVICED

BOTTOM YOKE

2шт.

18

17-175

U-JOINT SPIDER

& BEARING KIT

2шт.

19

19-921

BOLT,Hex, 3/8" - 24 x 1", Gr 8

8шт.

20

NSS

NOT SOLD SEPARAT

TUBE ASSEMBLY

1шт.

21

17-178

SEAL

STUFFING CAP

1шт.

22

17-180

SEAL

WASHER

2шт.

23

17-179

SEAL

1шт.

24

16-487

SPARE PART

2шт.

16-1590

COTTER PIN,M6.3 x 63

(S/N 100-00500 & above)

2шт.

25

19-536

BOLT,3/8" - 24 x 1 3/4", Gr 8

CAPSCREW

8шт.

26

17-206

SPARE PART

2шт.

27

NSS

NOT SOLD SEPARAT

REAR TUBE ASSEMBLY

1шт.

28

17-240

SPARE PART Front & rear

2шт.

1-6858

YOKE

UNIVERSAL JOINT YOKE (Used on S/N 100-00500 & above)

2шт.

29

16-485

WASHER

2шт.

30

19-877

LOCK NUT

1-1/8 UNF

2шт.

16-1589

NUT

(S/N 100-00500 & above)

2шт.
