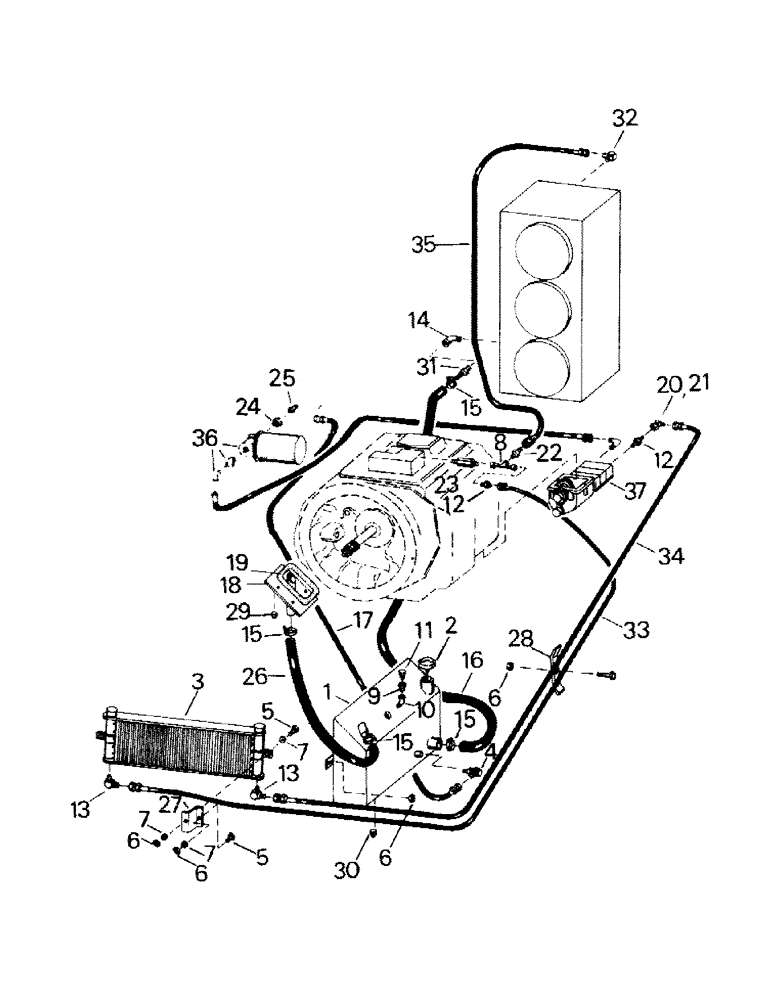

Запчасти Case IH ST210 (04-24) - DRIVE TRAIN LUBE (04) - Drive Train

1

1-371

OIL TANK

1шт.

2

6-1506

DIPSTICK

1шт.

3

10-39

COOLER

oil

1шт.

4

18-587

ELBOW,90 Degree, 7/8"-14, 37 Degree x 3/4"-14, NPTF

FITTING

1шт.

5

19-17

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

CAPSCREW, 3/8 x 1 UNC

4шт.

6

232-4136

LOCK NUT,3/8"-16, GC

3/8 UNC

9шт.

7

19-107

WASHER

3/8

7шт.

8

31-31

TEE,3/8"-18 Female

PIPE TEE, 3/8

1шт.

9

31-31

TEE,3/8"-18 Female

BUSHING, reducer

1шт.

10

31-76

STREET ELBOW

1шт.

11

31-303

BREATHER

1шт.

12

31-319

HYD CONNECTOR,7/8"-14, 37 Degree x 3/8"-18, NPTF

FITTING

2шт.

13

31-340

ELBOW,90 Degree, 7/8"-14, 37 Degree x 1/2"-14, NPTF

FITTING, elbow

1шт.

14

31-475

ELBOW

STREET ELBOW

1шт.

15

1-1348

CLAMP,#32, 1.87"-2.18", T-Bolt

HOSE CLAMP

4шт.

16

32-158

HOSE

SUCTION HOSE

1шт.

17

32-202

HOSE

ASSEMBLY

1шт.

18

12-1990

LARGE PLATE

COVER (used only on transmission P/N 12-1989)

1шт.

12-2074

PLUG, DRAIN

COVER, (used only on transmission P/N 12-2043 & 01-2214)

1шт.

19

2-2769

GASKET

1шт.

Old part number is not used any longer; the new part number is to be used in all cases.

1шт.

20

31-1001

FITTING

1шт.

21

31-515

ELBOW

ADAPTOR

1шт.

22

18-1084

ADAPTER,3/4"-16, 37 Degree x 3/8"-18, NPTF

ADAPTOR

1шт.

23

18-1039

NIPPLE, LUBE

NIPPLE

1шт.

24

31-12

REDUCER

1шт.

25

31-411

HYD CONNECTOR,7/8"-14, 37 Degree x 3/4"-14, NPTF

ADAPTOR

1шт.

26

32-249

SUCTION HOSE

1шт.

27

5-421

BRACKET

2шт.

28

51-243

HOLDER

CLAMP

2шт.

29

31-36

PLUG

1шт.

30

31-34

PLUG

3/4 sq. hd.

1шт.

31

31-373

PIPE

KING NIPPLE

1шт.

32

31-490

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/8"-18, NPTF

FITTING, elbow

1шт.

33

32-173

HOSE ASSY.

1шт.

34

32-172

HOSE ASSY.

1шт.

35

32-216

HOSE ASSY.

1шт.

36

SEE TRANSMISSION, Case, bearing caps and related parts

1шт.

37

12-2055

PUMP

PTO

1шт.
