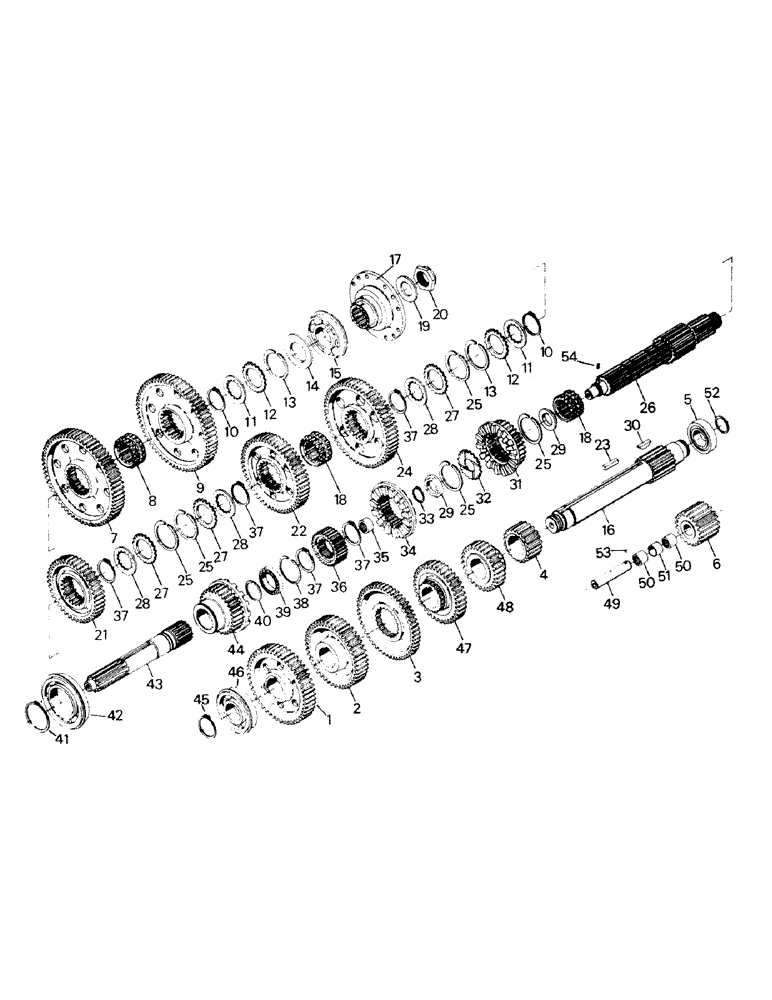

Запчасти Case IH ST210 (04-22) - GEARS AND RELATED PARTS, TRANSMISSION 12-2043 AND 01-2214 (04) - Drive Train
№
Артикул
Название
Примечание
Количество
1
12-1438
GEAR
C/S lo splitter (54T) (used on transmissions P/N 12-2043 and 01-2214)
2шт.
2
12-1440
GEAR
C/S hi splitter (49T) (used on transmission P/N 12-2043 and 01-2214)
2шт.
12-2052
KIT
GEAR KIT, L.H. countershaft, consists of ref. nos. 3 and 47
1шт.
3
12-1441
GEAR
P.T.O drive (51T)
1шт.
4
12-1445
GEAR
C/S (3rd & 4th) (20T)
2шт.
5
12-1447
SPHERICAL BEARING,44.99mm ID x 85mm OD x 23mm W
BEARING, C/S rear
2шт.
6
12-1451
GEAR
reverse idler (21T)
2шт.
7
12-2067
GEAR
M/S (1st & 2nd)
1шт.
8
12-2070
GEAR
COLLAR, M/S (1st, 2nd & reverse)
1шт.
9
12-2068
GEAR
M/S (reverse)
1шт.
10
12-2062
RING, SNAP
SNAP RING
2шт.
11
12-2059
THRUST WASHER
THRUST WASHER
2шт.
12
12-2060
THRUST WASHER
THRUST WASHER
2шт.
13
12-2061
RING, SNAP
SNAP RING
2шт.
15
12-1430
BALL BEARING,59.98mm ID x 130mm OD x 31mm W
BEARING, M/S rear
1шт.
16
12-2069
SHAFT
COUNTERSHAFT
1шт.
17
1-1798
FORK
COMPANION FLANGE
1шт.
18
12-1418
CLAMP
COLLAR, M/S
2шт.
19
12-1434
WASHER
1шт.
20
12-2056
THIN NUT,3/4"-12, Thin
NUT
1шт.
21
12-1419
GEAR
M/S (7th & 8th) (40T)
1шт.
22
12-1423
GEAR
M/S (5th & 6th) (50T)
1шт.
23
12-2065
KEY
2шт.
24
12-1425
GEAR
M/S (3rd & 4th) (52T)
1шт.
25
12-1417
RING
SNAP RING
5шт.
26
12-2064
SHAFT
MAINSHAFT
1шт.
27
12-2058
THRUST WASHER
THRUST WASHER
3шт.
28
12-1421
THRUST WASHER
THRUST WASHER
3шт.
29
12-1414
THRUST WASHER
THRUST WASHER
2шт.
30
12-1446
KEY
2шт.
31
12-1412
GEAR
M/S (9th & 10th) (30T)
1шт.
32
12-1416
THRUST WASHER
THRUST WASHER
1шт.
33
12-1413
RING, SNAP
SNAP RING
1шт.
34
12-1408
COLLAR
(splitter)
1шт.
35
12-1407
ROLLER BEARING
BEARING, input shaft pocket
1шт.
36
12-1409
GEAR
clutch (splitter) (30T)
1шт.
37
12-1420
SNAP RING
5шт.
38
12-1406
SNAP RING
1шт.
39
12-1405
BEARING,54.99mm ID x 80mm OD x 13mm W
input shaft (rear)
1шт.
40
12-1404
OIL SEAL
SNAP RING
1шт.
41
12-1402
RING, SNAP
SNAP RING
1шт.
42
12-1403
BEARING,84.98mm ID x 150mm OD x 28mm W
input shaft (front)
1шт.
43
12-1400
SHAFT
INPUT SHAFT, 1-3/4"
1шт.
44
12-1401
GEAR
DRIVE GEAR COMPOSITE (26T) (used on transmission P/N 12-2043 and 01-2214)
1шт.
45
12-2063
RING, SNAP
SNAP RING
2шт.
46
12-1437
BALL BEARING,2.1654" ID x 5.097" OD x 1.1417"
BEARING, C/S (front)
2шт.
47
12-1442
GEAR
L.H. C/S (7th & 8th)
1шт.
12-2066
GEAR
R.H. C/S (7th & 8th)
1шт.
48
12-1443
GEAR
C/S (5th & 6th) (31T)
2шт.
49
12-1449
SHAFT
reverse idler
2шт.
50
12-1452
BEARING
reverse idler shaft
4шт.
51
12-1453
SPACER
reverse idler shaft bearing
2шт.
52
12-1448
OIL SEAL
SNAP RING
2шт.
53
12-1450
BALL
reverse idler shaft
2шт.
54
12-1415
PIN
M/S thrust washer
2шт.
Выбрано товаров: 56
