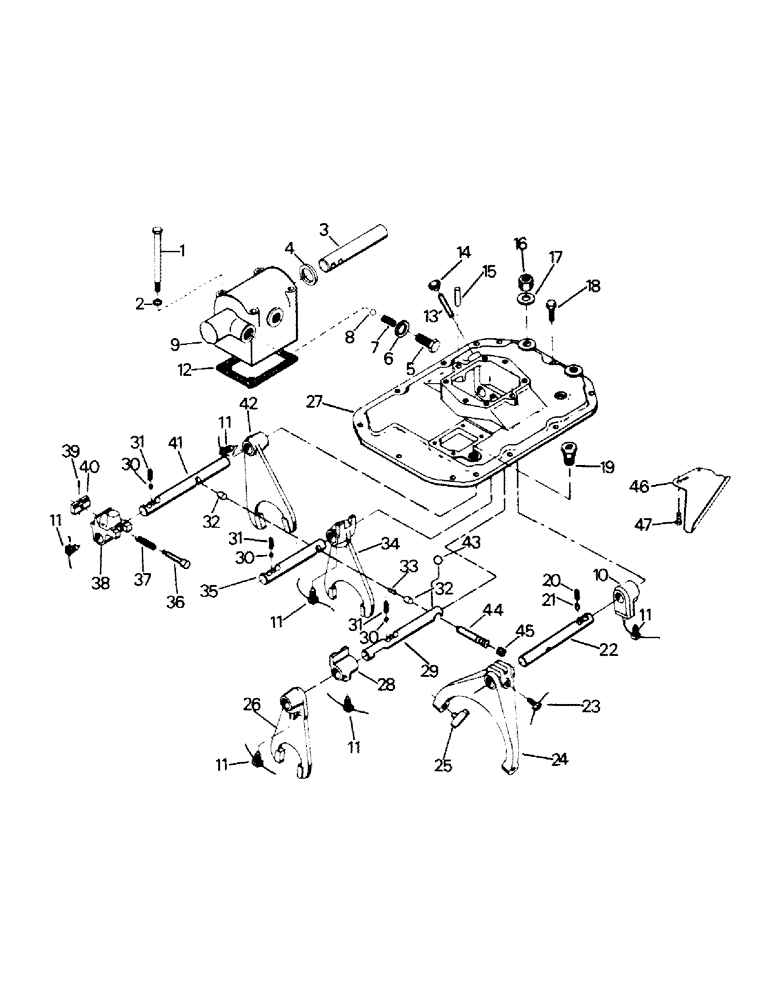

Запчасти Case IH ST210 (04-14) - SHIFTER HOUSING, TRANSMISSION 01-22140 (04) - Drive Train

1-4204

HOUSING

SHIFTER HOUSING SUB-ASSEMBLY, consists of ref. nos. 1-47

1шт.

12-1717

DIVIDER

CONTROL HOUSING SUB-ASSEMBLY, consists of ref. nos. 1-11

1шт.

1

12-1720

BOLT

SCREW, splitter housing

4шт.

2

12-1544

LOCK WASHER

4шт.

3

12-1723

SHAFT

ROD, splitter control

1шт.

4

12-1724

OIL SEAL

ROD, splitter control

1шт.

5

12-1728

CAPSCREW

SCREW, control rod poppet ball

1шт.

6

12-1616

LOCK WASHER

WASHER, control rod poppet spring lock

1шт.

7

12-1727

SPRING

control rod poppet

1шт.

8

12-1726

BALL

poppet splitter control rod

1шт.

9

12-1725

HOUSING

splitter

1шт.

10

12-1721

FINGER

splitter shift

1шт.

11

12-1550

SCREW

shift fork & bracket

6шт.

12

12-1625

GASKET

splitter housing piston

1шт.

13

12-1602

PIN

back-up light

1шт.

14

12-1603

PLUG

back-up light switch hole

1шт.

15

12-1601

PIN

blocker

1шт.

16

408

NUT,5/8" - 18, Gr 5

Shifter housing mounting stud 5/8"-18, G5

2шт.

17

12-1516

WASHER, shifter housing mounting stud nut

2шт.

18

12-1484

BOLT

SCREW, shifter housing

14шт.

19

12-1719

PLUG

breather hole

1шт.

20

12-1582

SPRING

shift rod stop pin

1шт.

22

12-1579

ROD

shift splitter

1шт.

23

12-1596

SET SCREW,7/16" - 20 x 13/16"

shift splitter fork

1шт.

24

12-1580

FORK

shift splitter

1шт.

25

12-1581

SHOE

splitter fork

2шт.

26

12-1587

FORK

shift (7th, 8th, 9th, & 10th)

2шт.

27

1-4206

HOUSING

shifter

1шт.

28

12-1588

BRACKET

shift (7th, 8th, 9th & 10th)

1шт.

29

1-4207

ROD

SHIFT (7th, 8th, 9th, & 10th)

1шт.

30

12-1584

BALL

shift rod poppet

3шт.

31

12-1585

SPRING

shift rod poppet ball

3шт.

32

12-1589

LOCK

2шт.

33

12-1590

PIN

lock

1шт.

34

12-1592

FORK

shift (3rd, 4th, 5th, & 6th)

1шт.

35

12-1591

ROD

shift (3rd, 4th, 5th & 6th)

1шт.

36

12-1597

PLUNGER

PIN, shift plunger (1st, 2nd & reverse)

2шт.

37

12-1598

SPRING

shift finger plunger

1шт.

38

12-1594

BRACKET

shift (1st, 2nd, & reverse)

1шт.

39

12-1600

PIN

shift plunger pin

1шт.

40

12-1599

SPRING

BLOCK, shift bracket

1шт.

41

12-1593

ROD

shift (1st, 2nd & reverse)

1шт.

42

12-2046

FORK

shift (1st, 2nd, & reverse)

43шт.

43

1-4208

BALL

neutral start switch

1шт.

44

1-4200

PLUNGER

interlock

1шт.

45

1-4203

SPRING

1шт.

46

12-2049

TROUGH

1шт.

47

12-2048

SCREW, trough

1шт.
