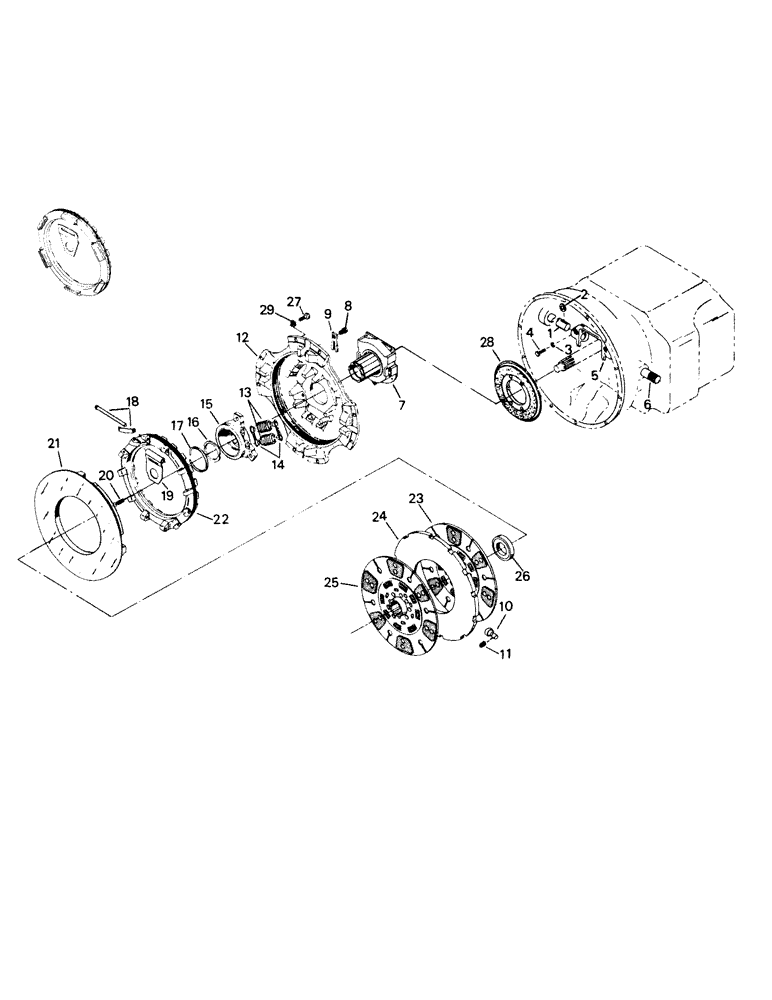

Запчасти Case IH ST210 (04-09) - CLUTCH GROUP (04) - Drive Train

65-154

CLUTCH KIT, Includes: Ref. 1 - 6

1шт.

1

13-130

SHAFT

SHORT SHAFT

1шт.

2

13-129

WASHER

2шт.

3

19-118

LOCK WASHER,7/16"

7/16"

2шт.

4

19-348

SCREW

CAPSCREW

2шт.

5

13-79

YOKE

RELEASE YOKE

1шт.

6

13-204

SHAFT

LONG SHAFT

1шт.

13-139

PLATE

PRESSURE PLATE ASSEMBLY, consists of ref nos. 7-22

1шт.

1-4631

CLUTCH

ASSEMBLY, consists of ref. nos. 7-25

1шт.

Old Part Number can be used for all models

1шт.

1997780C2R

REMAN-CLUTCH PLATE

Remanufactured 14" Clutch Assembly

1шт.

1997780C2C

CORE-CLUTCH PLATE

Return Part Number Clutch Assembly

1шт.

13-149

CLUTCH

DISC KIT, consists of ref. nos. 23-25

1шт.

7

13-179

KIT

BEARING & SLEEVE ASSEMBLY

1шт.

Replaced by 1-4631T92

1шт.

8

13-160

BOLT & LOCK WASHER

1шт.

Replaced by 1-4631T92

1шт.

9

13-159

STRIP

LOCK

1шт.

Replaced by 1-4631T92

1шт.

10

13-167

PIN

DRIVE PIN

6шт.

Replaced by 1-4631T92

1шт.

11

19-27

SET SCREW,Hex Skt, 3/8" - 16 x 1/2"

12шт.

Replaced by 1-4631T92

1шт.

12

13-155

OIL SEAL

RING, flywheel

1шт.

Replaced by 1-4631T92

1шт.

13

13-165

SPRING

pressure

1шт.

Replaced by 1-4631T92

1шт.

14

13-166

PIVOT

pressure spring

6шт.

Replaced by 1-4631T92

1шт.

15

13-164

BOLT

RETAINER, release sleeve

1шт.

Replaced by 1-4631T92

1шт.

16

13-46T1

RING, SNAP

1шт.

Replaced by 1-4631T92

1шт.

17

13-181

KIT, pin & clip

6шт.

Replaced by 1-4631T92

1шт.

19

13-161

LEVER

(B)

6шт.

Replaced by 1-4631T92

1шт.

Old Part Number can be used for all models

1шт.

1-4629

LEVER

1шт.

Replaced by 1-4631T92

1шт.

Old Part Number can be used for all models

1шт.

20

13-154

SPRING

return

4шт.

Replaced by 1-4631T92

1шт.

21

13-153

LARGE PLATE

PRESSURE PLATE

1шт.

Replaced by 1-4631T92

1шт.

22

13-158

OIL SEAL

RING, adjusting

1шт.

Replaced by 1-4631T92

1шт.

Old Part Number can be used for all models

1шт.

1-4630

GASKET

RING, adjusting

1шт.

Replaced by 1-4631T92

1шт.

Old Part Number can be used for all models

1шт.

23

13-147

DISC

rear

1шт.

Replaced by 1-4631T92

1шт.

24

13-148

CLUTCH DISC

PLATE, intermediate

1шт.

Replaced by 1-4631T92

1шт.

25

13-146T2

DISC

front (Replaces 13-146)

1шт.

Replaced by 1-4631T92

1шт.

26

66-39

BALL BEARING,1.1811" ID x 2.8346" OD x 0.7486"

pilot

1шт.

27

19-679

BOLT,Hex, 3/8" - 16 x 1", Gr 8

CAPSCREW, 3/8 x 1 UNC

8шт.

28

13-178

BRAKE

CLUTCH BRAKE

1шт.

29

19-117

LOCK WASHER,3/8"

3/8"

8шт.
