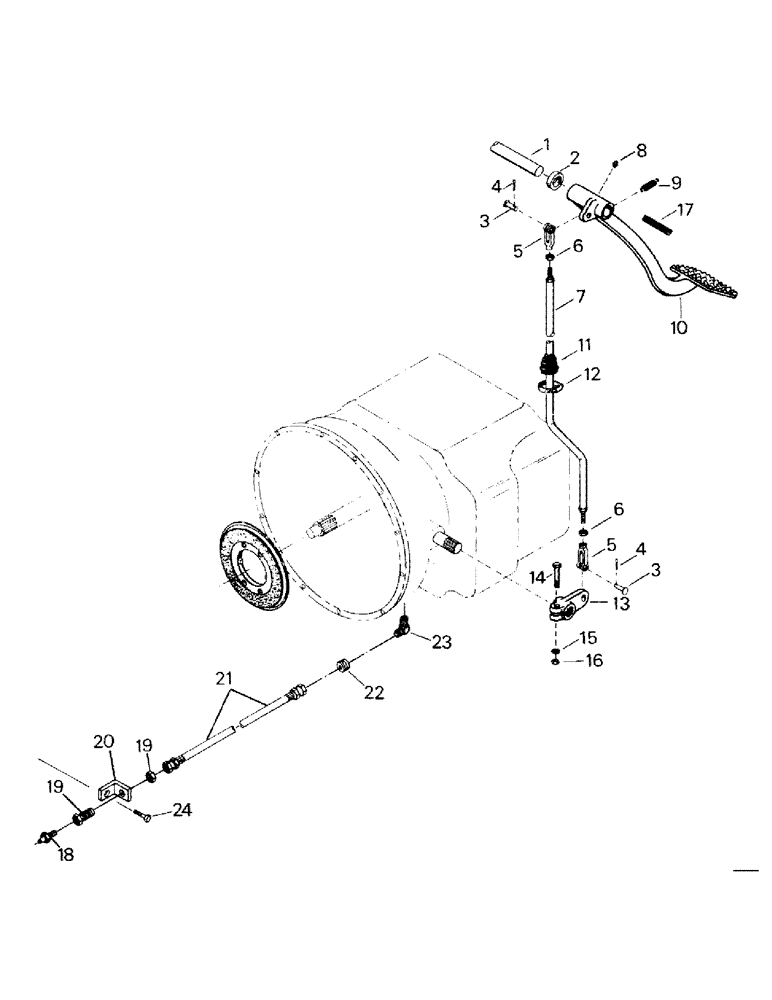

Запчасти Case IH ST210 (04-08) - CLUTCH CONTROLS (04) - Drive Train

1

4-326

ROD

SUPPORT

1шт.

2

19-161

COLLAR, set

1шт.

3

19-142

CLEVIS PIN,1/2" x 1.36"

PIN

2шт.

4

19-170

COTTER PIN,1/16" x 3/4"

Pin, Split (Cotter), 1/16" x 3/4"

2шт.

5

19-137

CLEVIS

YOKE

2шт.

6

19-93

NUT,1/2"-20, G5

1/2 UNF

2шт.

7

4-438

ROD

CLUTCH ROD WELDMENT

1шт.

8

31-93

FITTING

ZERK

1шт.

9

11-16

SPRING

1шт.

10

54-201

PEDAL

cast

1шт.

11

33-64

BOOT

rubber

1шт.

12

32-25

HOSE CLAMP,#36, 1.81/2.75 Type F Worm

CLAMP

1шт.

13

13-185

LEVER

clutch

1шт.

14

19-20

BOLT,Hex, 3/8" - 16 x 1 3/4", Gr 5

CAPSCREW, 3/8 x 1-3/4 UNC

1шт.

15

19-117

LOCK WASHER,3/8"

3/8"

1шт.

16

19-78

SPECIAL NUT,3/8"-16, G5

3/8 UNC

1шт.

17

24-174

MOULDING

1шт.

18

31-93

FITTING

ADAPTER

1шт.

19

31-660

ADAPTER

1шт.

20

4-550

BRACKET

1шт.

21

32-309

HOSE

1шт.

22

1-3031

GROMMET

1шт.

Old part number can be used for all models, but order new part number when stock is depleted.

1шт.

23

31-661

ELBOW,90 Degree, 7/16"-20, 37 Degree x 1/8"-27, NPTF

ADAPTER

1шт.

24

19-16

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

CAPSCREW, 3/8 x 3/4 UNC

1шт.
