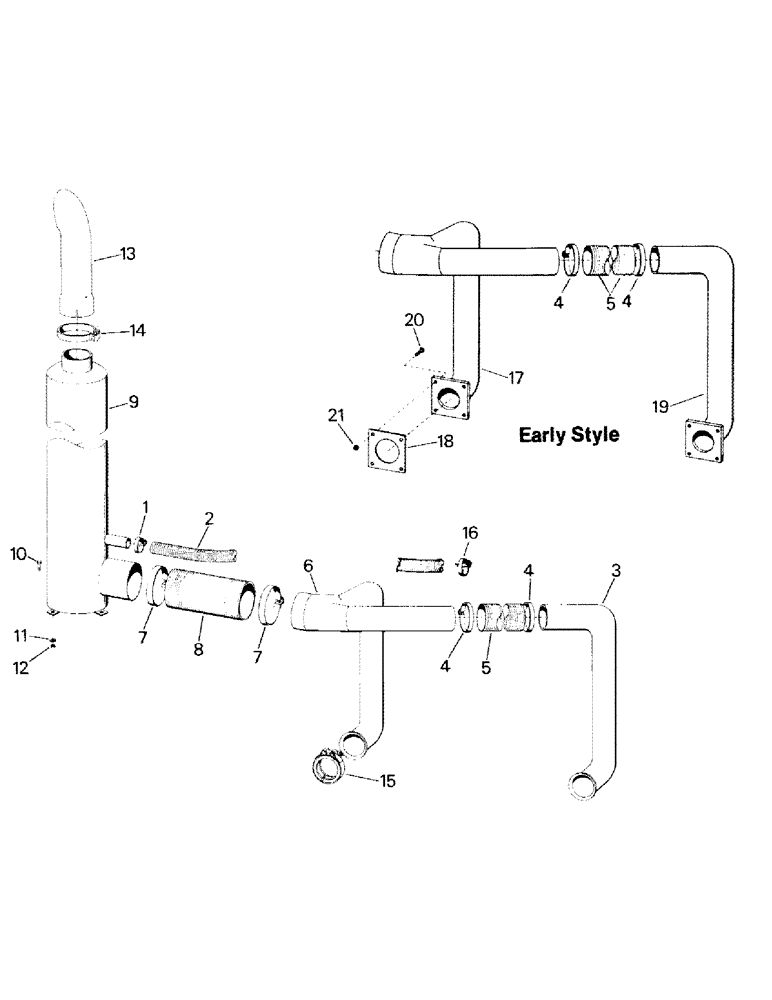

Запчасти Case IH ST210 (04-06) - EXHAUST SYSTEM (04) - Drive Train

1

32-1004

CLAMP,1.56"-1.81", T-Bolt

2шт.

2

45-176

TUBE

FLEX TUBE

1шт.

3

1-9408

HEAT-EXCHANGER

HEADER, exhaust L.H.

1шт.

Old part number is not used any longer; the new part number is to be used in all cases.

1шт.

1-9407

HEAD

ER, exhaust L.H. (for high fenders)

1шт.

4

31-1432

SEAL

U-BOLT (3" ID)

2шт.

7-38

CLAMP

(4" used w/45-249 flex tube)

1шт.

5

45-174

TUBE

FLEX TUBE (3" ID)

1шт.

45-249

TUBE

FLEX TUBE (3-1/2" ID, used on high fenders w/older style headers)

1шт.

6

1-9410

HEADER, exhaust R.H.

1шт.

Old part number is not used any longer; the new part number is to be used in all cases.

1шт.

1-9409

HEAD

ER, exhaust R.H (for high fenders)

1шт.

7

31-1537

MOUNTING CLIP

CLAMP

2шт.

8

45-177

TUBE

FLEX TUBE

1шт.

9

45-181

NO LONGER SERVICED

MUFFLER (S/N 100-00532 and below)

1шт.

The 45-181 muffler is not available. Order kit P/N 35-1219, which includes: the 02-1544 muffler, the 45-254 stack, which includes: the 02-1544 muffler, the 45-254 stack and the 31-1537 clamp.

1шт.

2-1544

MUFFLER

(S/N 100-00533 and above)

1шт.

10

19-43

BOLT,1/2" - 13 x 1", Gr 5

1/2 x 1 UNC

3шт.

11

19-109

WASHER,1/2"

1/2

3шт.

12

19-82

LOCK NUT

1/2 UNC

3шт.

13

45-263

TUBE

STACK, Serial Range: -100-00532

1шт.

45-254

MUFFLER

STACK, Start Serial: 100-00533

1шт.

14

32-340

CLAMP

, Serial Range: -100-00532

1шт.

31-1537

MOUNTING CLIP

CLAMP, Start Serial: 100-00533

1шт.

15

31-1038

CLAMP

2шт.

16

31-1427

MOUNTING CLIP

CLAMP, mounting

1шт.

17

45-182

HEAT-EXCHANGER

HEADER, exhaust R.H.

1шт.

7-1022

HEAD

ER, exhaust R.H. (for high fenders)

1шт.

18

7-21

GASKET

2шт.

19

45-183

HEAT-EXCHANGER

HEADER, exhaust L.H.

1шт.

7-1021

HEAD

ER, exhaust L.H. (for high fenders)

1шт.

20

19-20

BOLT,Hex, 3/8" - 16 x 1 3/4", Gr 5

3/8 x 1-3/4 UNC

8шт.

21

232-4136

LOCK NUT,3/8"-16, GC

NUT, 3/8 UNC

8шт.
