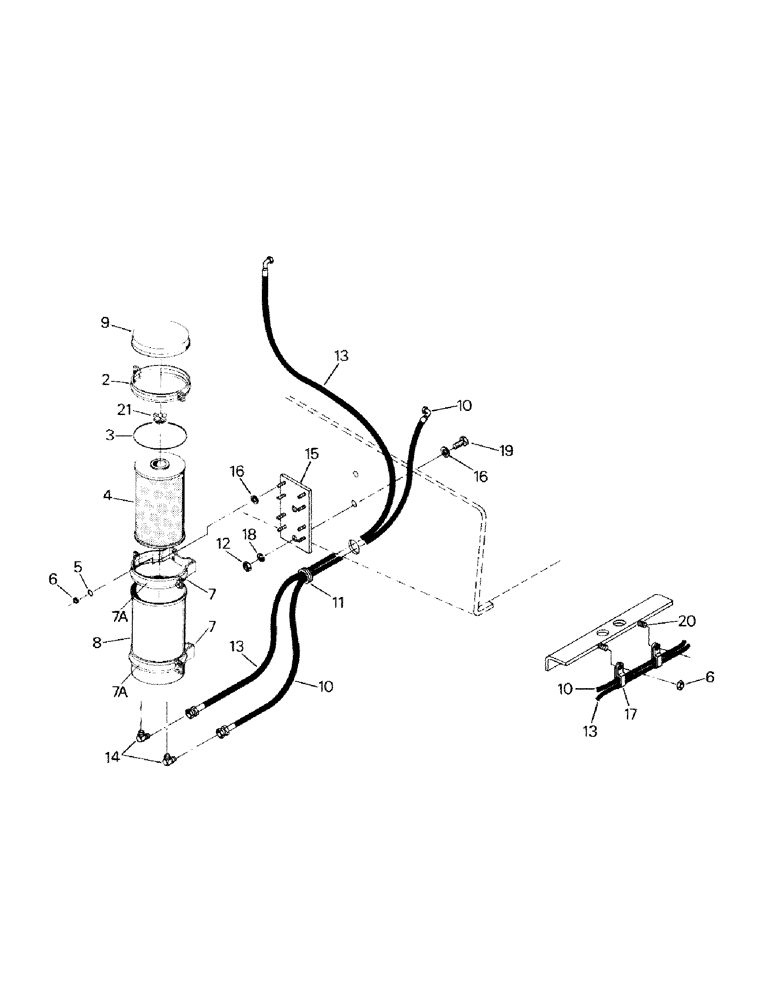

Запчасти Case IH ST210 (04-04) - LUBE FILTER ASSY. AND MOUNTING (04) - Drive Train

1

1-5568

FILTER

assembly (includes Refs. 2-9 & 21)

1шт.

2

1-5574

STRAP

1шт.

3

6-98

SEAL

O-RING

1шт.

4

28-28

FILTER, ENGINE OIL

ELEMENT, luberfiner

1шт.

5

19-107

WASHER

3/8

8шт.

6

19-78

SPECIAL NUT,3/8"-16, G5

3/8 UNC

10шт.

7

1-5572

BRACKET, mounting

2шт.

8

1-5570

FILTER

SHELL ASSEMBLY

1шт.

9

1-5573

COVER

1шт.

10

31-1073

GROMMET

1шт.

12

19-81

NUT,1/2"-13, G5

1/2 UNC

2шт.

13

31-1405

HOSE ASSY.

HOSE ASSEMBLY

1шт.

14

31-528

ELBOW,90 Degree, 9/16"-18, 37 Degree x 1/2"-14, NPTF

ADAPTER

2шт.

15

1-4998

BRACKET

LUBE BRACKET (weld.)

1шт.

16

19-109

WASHER,1/2"

1/2

10шт.

17

31-1070

CLAMP,5/8", 3/8" Bolt, Double

2шт.

18

19-119

LOCK WASHER,1/2"

1/2"

2шт.

19

19-269

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 5

CAPSCREW

2шт.

20

19-410

STUD

weld on (for field install: only models 100 & 101)

2шт.

21

2-1557

SUPPORT

ASSEMBLY

1шт.

35-1178

KIT

by pass filter field

1шт.
