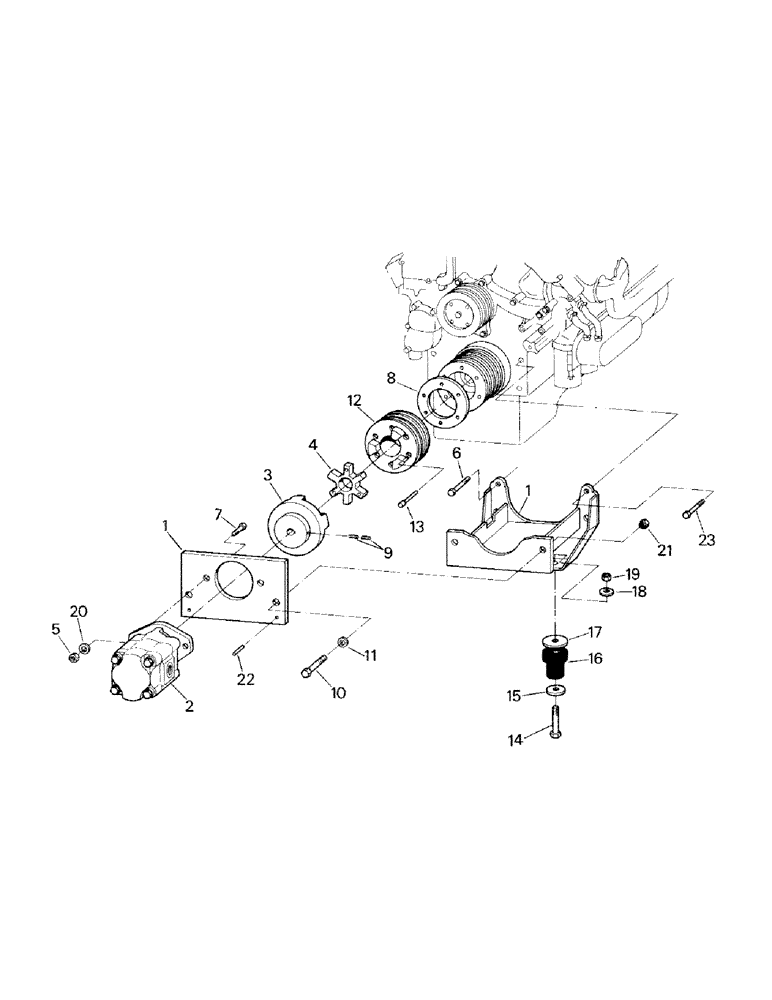

Запчасти Case IH ST210 (04-03) - HYDRAULIC PUMP MOUNTING AND DRIVE (04) - Drive Train

1

50-1015T91

PUMP MOUNT

1шт.

2

18-1508

PUMP, HYDRAULIC

PUMP

1шт.

19-899 is key used with 18-1508 pump 10/3/94 DB

1шт.

3

5-384

COUPLING

PUMP COUPLER

1шт.

4

18-58

DIFF. SPIDER

SPIDER

2шт.

5

19-456

NUT

2шт.

6

19-793

CAPSCREW (right side)

2шт.

7

19-54

CAPSCREW

1шт.

8

5-430

SPACER, pulley

2шт.

9

19-27

SET SCREW,Hex Skt, 3/8" - 16 x 1/2"

BOLT

2шт.

11

19-5523

WASHER

1шт.

12

5-14

PULLEY

FRONT PULLEY

1шт.

13

19-668

SCREW,12 Pt Flg, 3/8" - 16 x 2 1/2", Gr 8

BOLT

6шт.

14

19-278

BOLT,Hex, 5/8" - 11 x 3 1/2", Gr 5

2шт.

15

19-408

WASHER

2шт.

16

6-1414

ANCHOR

MOUNT, rubber

2шт.

17

51-128

WASHER

2шт.

18

19-111

WASHER,5/8"

2шт.

19

19-222

LOCK NUT,5/8" - 11, GB

NUT

2шт.

20

19-710

WASHER

2шт.

21

19-85

LOCK NUT

2шт.

22

19-151

LOCK PIN,1/4" x 1", Slotted

Pin, 1/4" x 1", Slotted

2шт.

23

19-827

BOLT,Hex, 1/2" - 13 x 3", Gr 8

(left side)

2шт.
