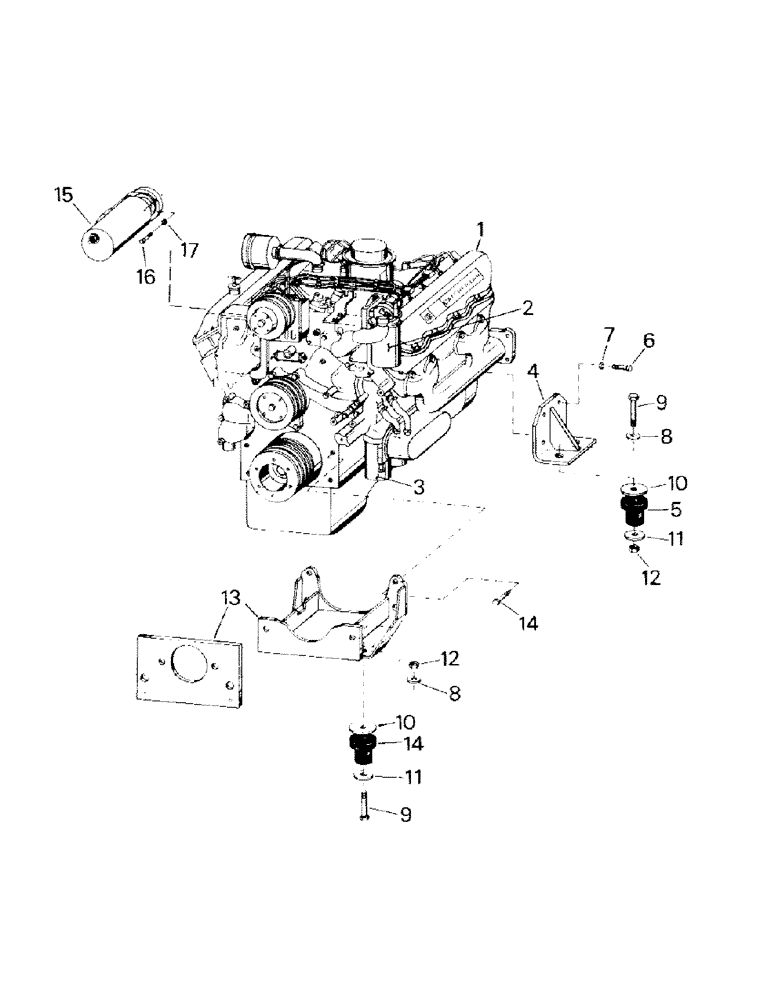

Запчасти Case IH ST210 (04-01) - ENGINE MOUNTING (04) - Drive Train

1

6-123

ENGINE ASSEMBLY (3208)

1шт.

2

28-25

ELEMENT

FUEL FILTER ELEMENT, Serial Range: -100-00579

1шт.

2-3509T1

FILTER

FUEL FILTER ELEMENT, Start Serial: 100-00580

1шт.

3

28-6

FILTER, ENGINE OIL

OIL FILTER ELEMENT

2шт.

4

5-413

MOUNT, motor

2шт.

5

24-231

RUBBER MOUNTING

MOUNT, rubber

4шт.

6

19-59

BOLT,Hex, 5/8" - 11 x 1 1/2", Gr 5

CAPSCREW, 5/8 x 1-1/2 UNC

8шт.

7

19-120

LOCK WASHER,5/8"

5/8"

8шт.

8

19-111

WASHER,5/8"

4шт.

9

19-278

BOLT,Hex, 5/8" - 11 x 3 1/2", Gr 5

CAPSCREW, 5/8 x 3-1/2 UNC

6шт.

10

51-128

WASHER

21/32

6шт.

11

19-408

WASHER

21/32

6шт.

12

19-222

LOCK NUT,5/8" - 11, GB

NUT, 5/8 UNC

6шт.

13

50-1015T91

PUMP MOUNT (05-422)

1шт.

New part number is correct for all uses

1шт.

14

6-1414

ANCHOR

MOUNT, rubber

2шт.

15

22-1147

STARTER MOTOR

STARTER

1шт.

16

19-925

SCREW,12 pt Flg Hd, 5/8"-11 x 1 3/4", G8

CAPSCREW

3шт.

17

19-912

WASHER

3шт.
