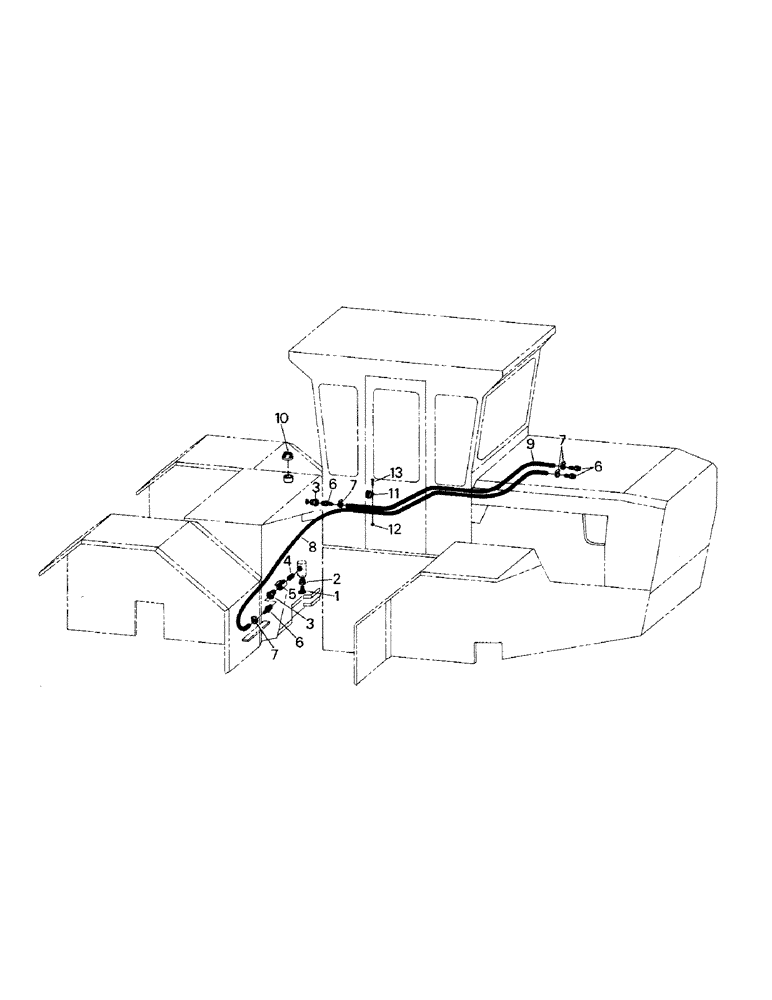

Запчасти Case IH ST210 (07-02) - FUEL GROUP (02) - FUEL SYSTEM

1

31-157

COCK, DRAIN

DRAIN COCK

1шт.

2

31-181

REDUCER

BUSHING

1шт.

3

31-292

REDUCER BUSHING

2шт.

4

31-199

NIPPLE

1шт.

5

31-1267

SHUT-OFF VALVE

VALVE, ball

1шт.

6

31-137

FITTING

CONNECTOR

4шт.

7

32-59

HOSE CLAMP,#4, 0.25/0.62 Type M Worm

CLAMP

4шт.

8

3-63

FUEL HOSE

HOSE, suction

1шт.

9

3-61

HOSE

return

1шт.

10

1-4853

CAP

vented

1шт.

11

60-33

CLAMP

1шт.

12

19-567

NUT,#10-24

#10

1шт.

13

19-11

SCREW, #10 x 1-1/4

1шт.
