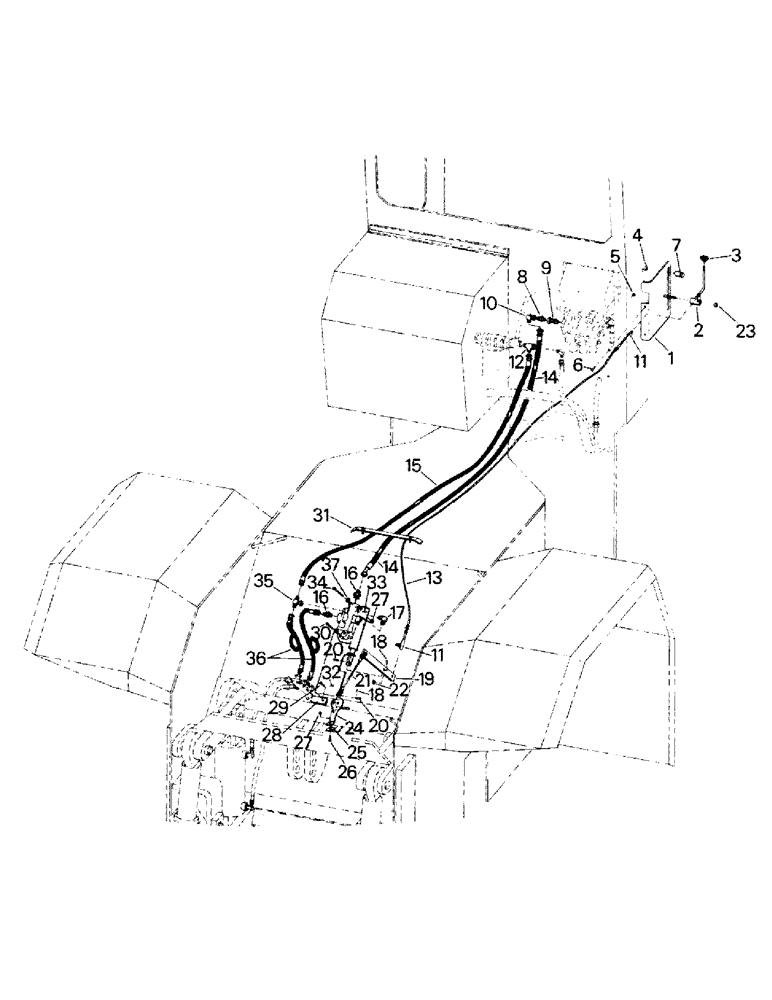

Запчасти Case IH ST210 (10-19) - DEPTH CONTROL HYDRAULICS Options & Miscellaneous

1

40-468

LEVER BRACKET

1шт.

2

40-465

LEVER WELDMENT

1шт.

3

12-8

KNOB

1шт.

4

19-340

NUT

WING NUT

2шт.

5

19-78

SPECIAL NUT,3/8"-16, G5

HEX NUT

2шт.

6

19-18

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

HEX HD. SCREW

2шт.

7

40-470

LEVER STOP WELDMENT

2шт.

8

18-608

HYD CONNECTOR,1 1/16"-12, 37 Degree x 7/8"-14, O-Ring

FITTING

1шт.

9

18-1134

FITTING

CONVERSION FITTING

1шт.

10

31-503

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree Fem Sw

FITTING

1шт.

11

6-1431

BALL JOINT

2шт.

12

31-627

PIPE

TEE

1шт.

13

18-1746

CABLE

1шт.

14

32-225

HOSE ASSEMBLY

1шт.

15

32-224

HOSE ASSEMBLY

1шт.

16

18-624

HYD CONNECTOR,1 1/16"-12, 37 Degree x1 3/16"-12, O-Ring

FITTING

2шт.

17

31-394

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 5/16"-12, O-Ring

FITTING

1шт.

18

19-238

COTTER PIN,3/32" x 3/4"

Pin, Split (Cotter), 3/32" x 3/4"

3шт.

19

40-458

LEVER, VALVE

1шт.

20

19-143

CLEVIS PIN,5/16" x 0.94"

PIN

3шт.

21

40-457

ADJUSTING ROD. ASSY.

1шт.

22

19-351

NUT,#10 - 24, GA

2шт.

23

19-82

LOCK NUT

LOCK NUT

1шт.

24

40-461

CLAMP, top

1шт.

25

40-459

CLAMP, bottom

1шт.

26

19-234

BOLT,Hex, 5/16" - 18 x 1 1/4", Gr 5

HEX HD. SCREW

2шт.

27

19-508

LOCK NUT

HEX NUT

5шт.

28

40-475

MOUNTING TAP1

1шт.

29

19-43

BOLT,1/2" - 13 x 1", Gr 5

HEX HD. SCREW

2шт.

30

19-725

BOLT,Hex, 5/16" - 18 x 3 1/4", Gr 5

HEX HD. SCREW

2шт.

31

40-455

HANDLE

BRACKET, hose

1шт.

32

40-454

BRACKET

1шт.

33

18-1102

VALVE

DEPTH CONTRL VALVE

1шт.

34

19-333

BOLT,Hex, 5/16" - 18 x 4", Gr 5

HEX HD. SCREW

1шт.

35

18-609

TEE,37 Degree, 1 1/16"-12 x 1 1/16"-12, Fem Sw Br

FITTING TEE

1шт.

36

18-1743

HOSE ASSY.

2шт.

37

19-700

WASHER,5/16"

3шт.

38

18-1611

SLEEVE

S, plastic coil

2шт.
