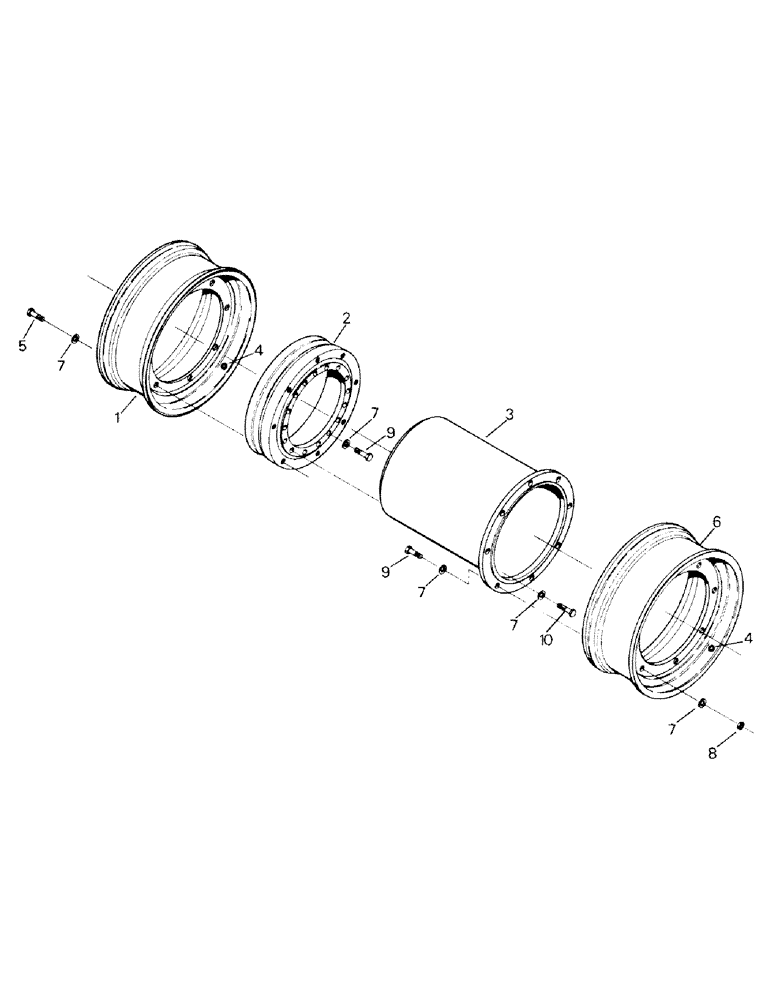

Запчасти Case IH ST210 (10-15) - ADJUSTABLE WHEELS, DUALS Options & Miscellaneous

1

2-1246

18.4 x 34 WHEEL (inner on 62" setting)

4шт.

2-1441

18.4 x 34 WHEEL (inner on 70 or 75.5 setting)

4шт.

2-1245

20.8 x 34 WHEEL (inner on 70 or 75.5 setting)

4шт.

1-6281

18.4 x 38 WHEEL (inner on 62, 70 & 75.5 setting)

4шт.

2

1-6745

SPACER

4шт.

3

1-6283

SPACER (20"wide)

4шт.

1-6287

SPACER (30" wide)

4шт.

4

22-521

PLUG

8шт.

5

19-2974

BOLT,Hex, 7/8" - 9 x 2 1/4", Gr 8

CAPSCREW, 7/8 x 2-1/2 UNC

40шт.

6

2-1441

18.4 x 34 WHEEL (outer on 120, 141 &151" setting)

4шт.

2-1245

20.8 x 34 WHEEL (outer on 140 & 151" setting)

4шт.

2-1440

18.4 x 38 WHEEL (outer on 120 setting)

4шт.

1-6281

18.4 x 38 WHEEL (outer on 140 & 151 setting)

4шт.

7

19-2975

WASHER

192шт.

8

19-457

NUT,7/8"-9, G5

M 7/8 UNC

40шт.

9

19-420

BOLT,7/8" - 9 x 3", Gr 8

CAPSCREW, 7/8 x 3 UNC

88шт.

10

223478

CAPSCREW,Hex, 7/8" - 9 x 4 1/2", Gr 8

7/8 x 4-1/2 UNC

32шт.
