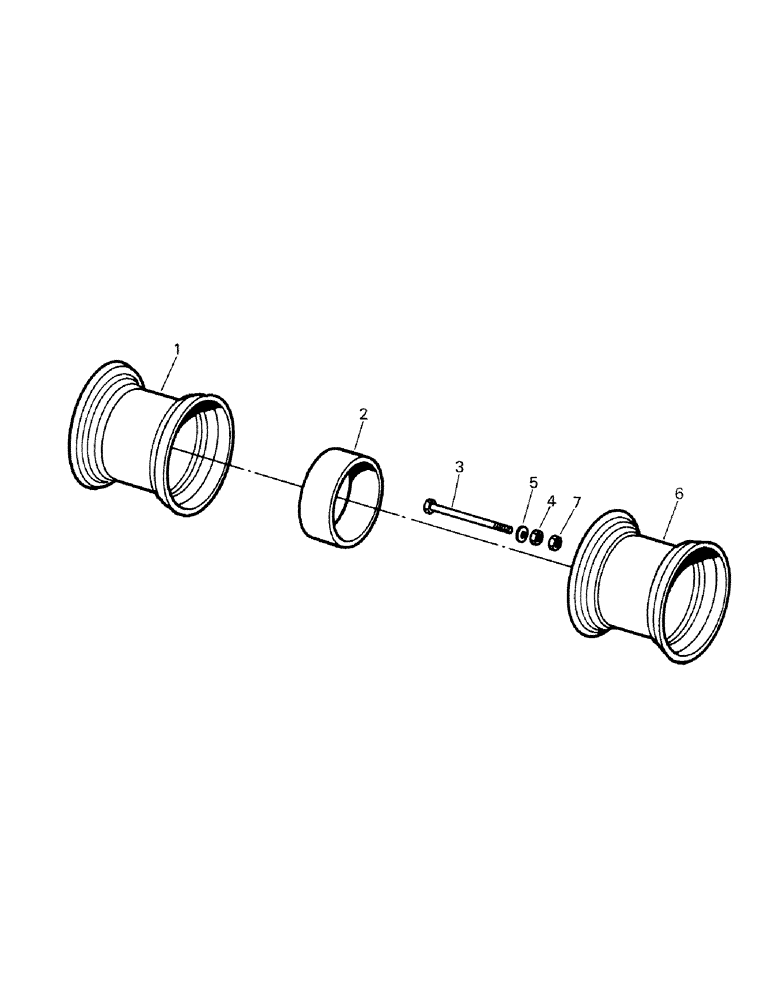

Запчасти Case IH ST210 (10-13) - STANDARD WHEELS, SINGLES AND DUALS Options & Miscellaneous

1

20-46

RIM

18.4 x 34 WHEEL

4шт.

20-53

RIM

20.8 x 34 WHEEL

4шт.

20-293

RIM

24.5 x 32 WHEEL

4шт.

20-294

RIM

30.5 x 32 WHEEL

4шт.

2

20-162

HARNESS

34" SPACER BAND (13" wide)

4шт.

3

20-64

BOLT

TIE BOLTS (32" x 7/8 UNF)

24шт.

4

19-261

NUT,7/8" - 14, Gr 5

7/8 UNF

24шт.

5

20-62

WASHER

24шт.

6

20-47

RIM

18.4 x 34 DUAL WHEEL

4шт.

20-54

RIM

20.8 x 34 DUAL WHEEL

4шт.

7

19-5501

NUT

JAM NUT, 7/8 UNF

24шт.

8

22-521

PLUG

(not shown)

4шт.
