Запчасти Case IH ST210 (10-11) - NO SPIN DIFFERENTIAL Options & Miscellaneous

16-873

DIFFERENTIAL

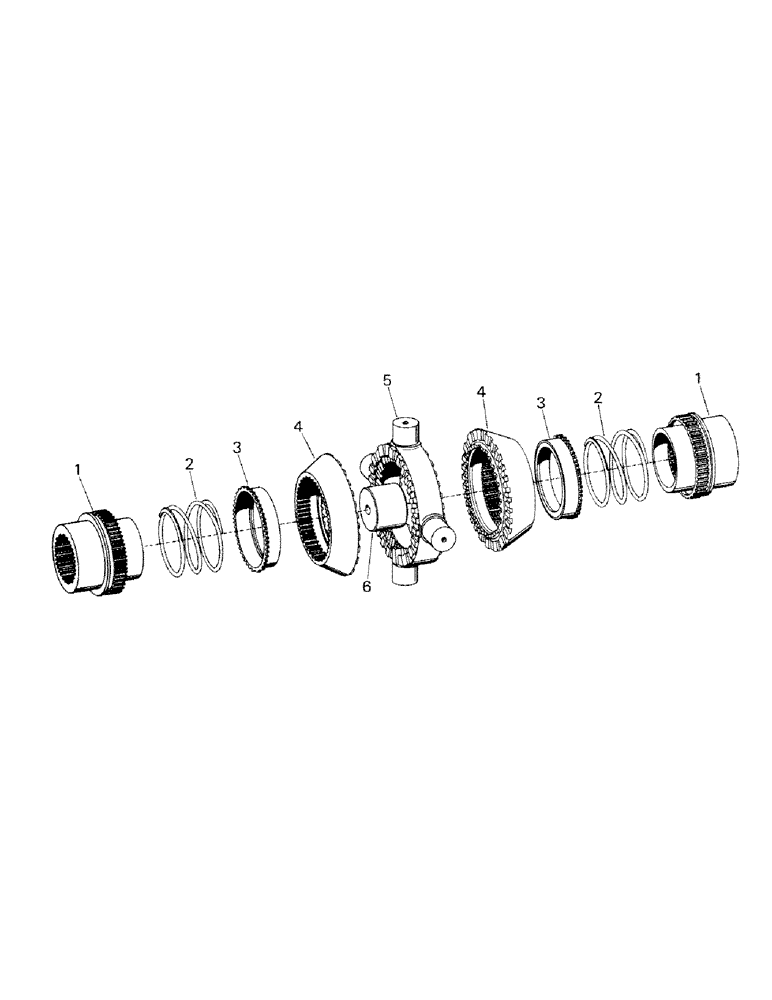

NO-SPIN ASSY. (raba K598 axle) (S/N 100-00500 & above), consists of ref. nos. 1-6

1шт.

When installing a no-spin, it is necessary to use the larger steering cylinders, P/N 18-1458 as shown on figure 8-14.

1шт.

1

16-1461

GEAR

SIDE GEAR

2шт.

2

16-996

SPRING

2шт.

3

16-993

COLLAR

RETAINER

2шт.

4

16-1460

CLUTCH, H.O. ring

2шт.

5

16-998

DIFF. SPIDER

SPIDER, cam assy.

1шт.

6

11-1187

SLUG

1шт.

16-865

NO-SPIN ASSY. (adj. axle), consists of ref. nos. 1-5

1шт.

1

16-1468

SIDE GEAR

2шт.

2

16-997

SPRING

2шт.

3

16-992

RETAINER

2шт.

4

16-988

CLUTCH

2шт.

5

16-1455

SPIDER, cam assy.

1шт.

16-868

DIFFERENTIAL

NO-SPIN ASSY. (dana A-235 axle), consists of ref. nos. 1-5

1шт.

1

16-1469

SIDE GEAR

2шт.

2

16-997

SPRING

2шт.

3

16-992

RETAINER

2шт.

4

16-988

CLUTCH

2шт.

5

16-999

SPIDER, can assy.

1шт.
