Запчасти Case IH ST210 (10-10) - DUAL HYDRAULIC BRAKE AND MOUNTING, ST 210 AND RC 210 Options & Miscellaneous

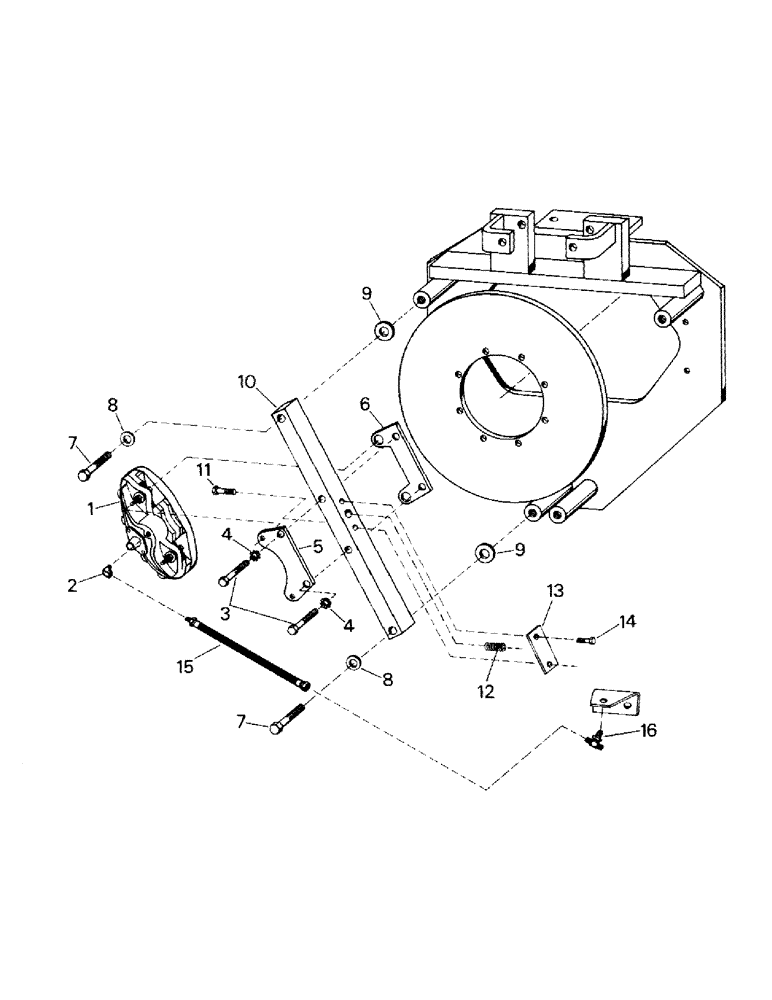

Схема запчастей Case IH ST210 - (10-10) - DUAL HYDRAULIC BRAKE AND MOUNTING, ST 210 AND RC 210 Options & Miscellaneous
8
11
2
12
7
7
9
13
4
5
9
10
15
14
3
16
4
1
6
8

Артикул

Название

Примечание

Количество

1

1-6046

BRAKE

ASSEMBLY

1шт.

2

31-237

ELBOW

1шт.

3

19-48

BOLT,Hex, 1/2" - 13 x 3", Gr 5

CAPSCREW, 1/2 x 3 UNC

2шт.

4

19-194

LOCK WASHER,Ext Tooth, 1/2"

WASHER, 1/2 external tooth

2шт.

5

1-2945

HANGER

1шт.

6

1-2946

HANGER

1шт.

7

19-275

BOLT,Hex, 5/8" - 11 x 3 1/4", Gr 5

CAPSCREW, 5/8 x 3-1/4 UNC

2шт.

8

19-120

LOCK WASHER,5/8"

5/8"

2шт.

9

19-711

WASHER,5/8", SAE

21/32

2шт.

10

33-247

BAR

brake mount

1шт.

11

33-237

BOLT,Hex, 1/2" - 13 x 3/4"

1шт.

12

66-93

SPRING

1шт.

13

33-236

PLATE

retainer

1шт.

14

19-18

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

CAPSCREW, 3/8 x 1-1/4 UNC

2шт.

15

18-1631

HOSE

1шт.

16

31-671

TEE,7/16"-20, 37 Degree, Blkhd

flare

1шт.

Выбрано товаров: 16
