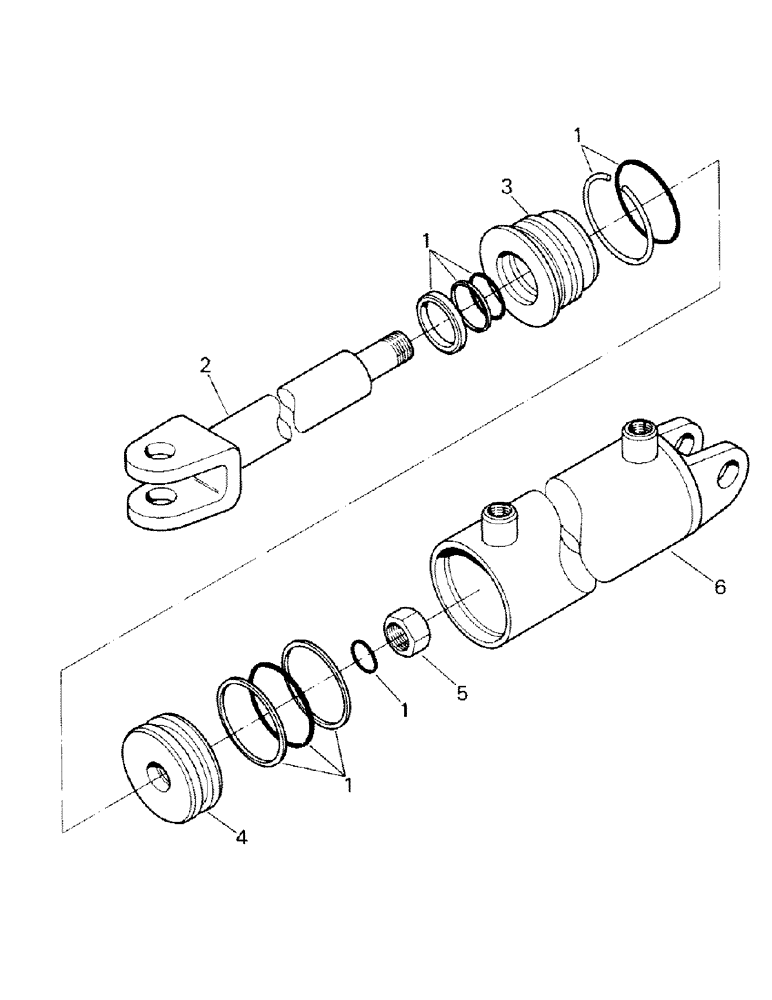

Запчасти Case IH ST210 (10-09) - DOZER CYLINDER ASSEMBLIES Options & Miscellaneous

1-5926

CYLINDER

ASSEMBLY, consists of ref. nos. 1-6

2шт.

1

50-1100T91

SEAL KIT

SEAL KIT

1шт.

2

50-1098T1

SHAFT ASSY.

1шт.

3

50-1095T1

GLAND

1шт.

4

50-1096T1

PISTON

1шт.

5

50-1099T1

NUT

1шт.

6

50-1097T1

BARREL ASSY.

1шт.

38-852

CYLINDER

CYLINER ASSY. (old style), consists of ref. nos. 1-6

2шт.

The cylinder illustrated here is the "new" style. The "older" style is somewhat different in that the port on the gland end was not a weld-on type. The adaptor actually screwed through the tube and into the gland. It was used on the "Dakota dozer, " and in some cases may be identified by that name on it or the Dozer.

1шт.

1

38-865

SEAL KIT

1шт.

2

38-866

SHAFT ASSY.

1шт.

3

38-868

GLAND

1шт.

4

38-869

PISTON

1шт.

5

38-870

NUT

1шт.

6

38-867

BARREL ASSY.

1шт.
