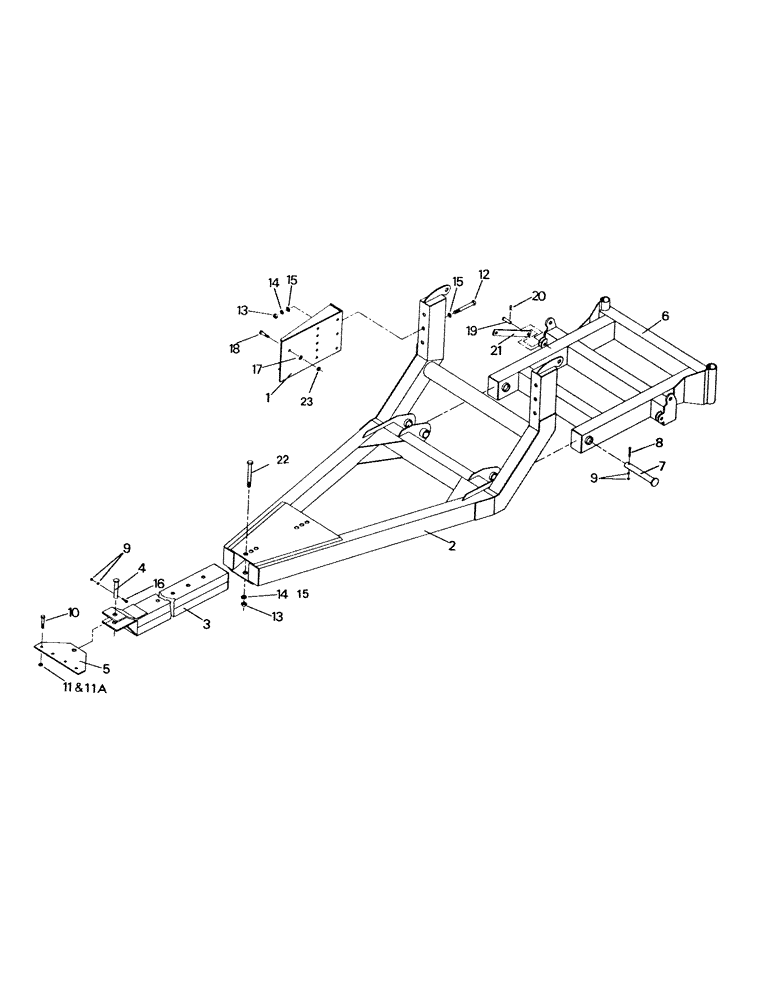

Запчасти Case IH ST210 (10-06) - MODEL 602 & 605 DOZER FRAME Options & Miscellaneous

*1

1-5911

X

SIDE ATTACHMENT, RH (early)

1шт.

The side attachments, items 1, have an early & a later versions. The later style, 02-2556, can be used as a replacement for the early; however, the mount hardware, items 17, 18 & 23, are 7/8" instead of 3/4" & the number required is 18 rather than 8, which means that extra holes must be drilled.

1шт.

2-2556

MOUNTING PARTS

SIDE ATTACHMENT, RH (late)

1шт.

1-5916

X

SIDE ATTACHMENT, LH (early)

1шт.

2-2556

MOUNTING PARTS

SIDE ATTACHMENT, LH (late)

1шт.

2

38-845

A-FRAME

1шт.

The A-frame, item 2, has been modified, although the part number has remained the same. The early style had a single ear for the top mount for the lift cyls. while the later has 2. This requires a different bolt & nut to replace the pin & hairpin used with the single ear in case a new A-frame should be needed. It also has a different mount ear for the transport lock. See the hyd. page for the different pins or bolts.

1шт.

*3

2-2013

DRAWBAR

(replaces 38-846)

1шт.

Old part number is not used any longer; the new part number is to be used in all cases.

1шт.

4

38-859

PIN

drawbar

1шт.

*5

38-847

HINGE PLATE

1шт.

6

38-848T1

FRAME

A-FRAME EXTENSION (replaces 38-848)

1шт.

The A-frame extension has been modified with a different mount for the newer style transport lock. As it is the only one available for service, the new style transport lock & mount pins wold also be needed. It would also require that the new ears, Part # 02-1830, be welded to the A-frame so that the new lock could be attached at the end.

1шт.

7

38-851

PIN, pivot (2-1/6" x 14")

1шт.

8

19-279

BOLT,Hex, 3/8" - 16 x 3", Gr 5

CAPSCREW, 3/8" x 3" NC

2шт.

9

232-4136

LOCK NUT,3/8"-16, GC

3/8" NC

6шт.

10

19-1087

BOLT,Hex, 3/4" - 10 x 3", Gr 8

CAPSCREW, 3/4 x 3 NC

4шт.

11

19-832

BOLT

NUT, 3/4" NC

4шт.

11a

19-121

LOCK WASHER,3/4"

3/4"

4шт.

12

19-1120

BOLT,1" - 8 x 8", Gr 8

CAPSCREW, 1" x 8" NC, GR 8

6шт.

13

19-610

NUT,1"-8, G5

1" NC

8шт.

14

19-122

LOCK WASHER,1"

(omitted on later models) 1"

8шт.

15

19-714

WASHER,1", SAE

FLAT WASHER

16шт.

16

19-21

BOLT,Hex, 3/8" - 16 x 2", Gr 5

CAPSCREW, 3/8" x 2" UNC

1шт.

17

19-121

LOCK WASHER,3/4"

3/4"

8шт.

The side attachments, items 1, have an early & a later versions. The later style, 02-2556, can be used as a replacement for the early; however, the mount hardware, items 17, 18 & 23, are 7/8" instead of 3/4" & the number required is 18 rather than 8, which means that extra holes must be drilled.

1шт.

19-2975

WASHER

FLAT WASHER, 7/8"

36шт.

The side attachments, items 1, have an early & a later versions. The later style, 02-2556, can be used as a replacement for the early; however, the mount hardware, items 17, 18 & 23, are 7/8" instead of 3/4" & the number required is 18 rather than 8, which means that extra holes must be drilled.

1шт.

18

19-63

BOLT,Hex, 3/4" - 10 x 2 1/2", Gr 5

CAPSCREW, 3/4" x 2-1/2" UNC

8шт.

19-420

BOLT,7/8" - 9 x 3", Gr 8

CAPSCREW, 7/8" x 3" UNC

18шт.

19

19-2692

PIN, 1/2" x 1-3/4" (use w/01-2571)

2шт.

1-7803

PIN

1-1/2" x 3-1/2" (use w/01-7800)

2шт.

20

19-5400

PIN

HAIRPIN, 1/8 (use w/01-2571)

2шт.

19-345

PIN

KILK PIN, 7/16" (use w/01-7800)

2шт.

21

1-2571

LINK, transport (single strap type w/1/2" holes used on earliest style dozers)

2шт.

1-7800

LINK

transport (double strap type w/ 1-1/2" holes used on later style dozers)

2шт.

22

19-841

BOLT,Hex, 1" - 8 x 9", Gr 8

CAPSCREW, 1" x 9" UNC

2шт.

19-1120

BOLT,1" - 8 x 8", Gr 8

CAPSCREW, 1" x 8" UNC

2шт.

23

19-832

BOLT

NUT, 3/4" NC

8шт.

The side attachments, items 1, have an early & a later versions. The later style, 02-2556, can be used as a replacement for the early; however, the mount hardware, items 17, 18 & 23, are 7/8" instead of 3/4" & the number required is 18 rather than 8, which means that extra holes must be drilled.

1шт.

19-457

NUT,7/8"-9, G5

7/8" NC

18шт.

The side attachments, items 1, have an early & a later versions. The later style, 02-2556, can be used as a replacement for the early; however, the mount hardware, items 17, 18 & 23, are 7/8" instead of 3/4" & the number required is 18 rather than 8, which means that extra holes must be drilled.

1шт.
