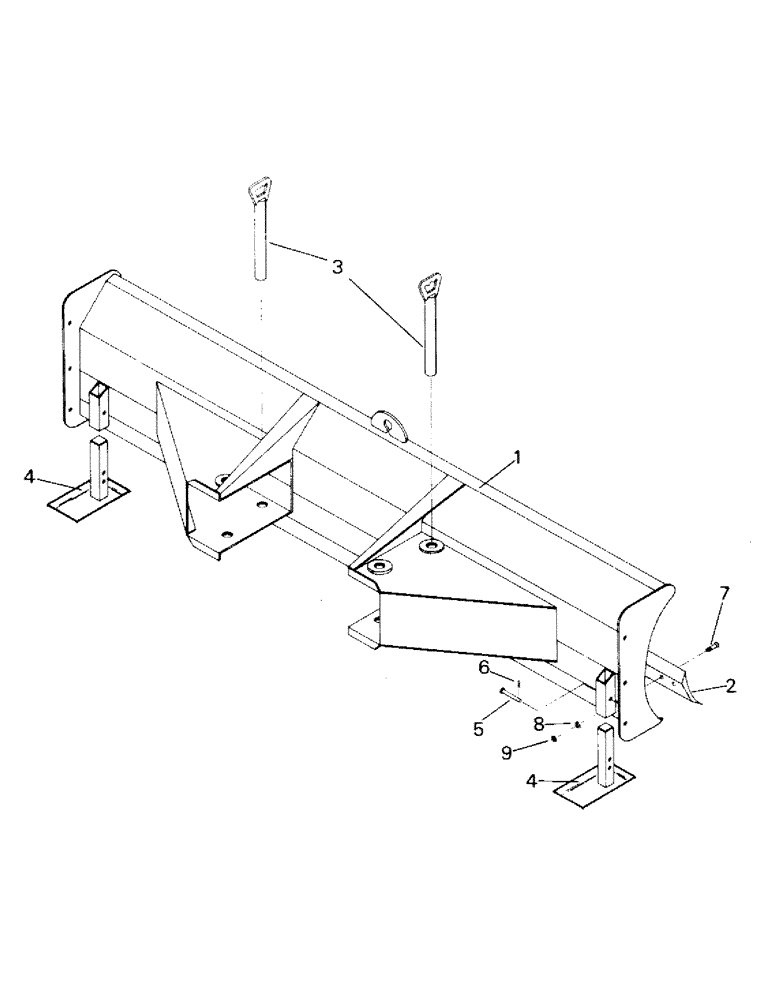

Запчасти Case IH ST210 (10-05) - DOZER BLADE ASSEMBLY, MODELS 602 AND 605 Options & Miscellaneous

1-6819T1

BLADE ASSY., 12'

1шт.

1-9156T1

BLADE ASSY., 14'

1шт.

1

38-842T1

BLADE, 12'

1шт.

1-8771T1

BLADE, 14'

1шт.

2

38-841

EDGE

CUTTING EDGE, 12'

2шт.

1-9198

EDGE

CUTTING EDGE, 14'

2шт.

3

38-850

BLADE PIN

2шт.

4

38-849

SHOE (3" sq. tube)

2шт.

The blade weldment used with the 3" shoe (38-849) is no longer available. If you have the early style 3" shoe and you wish to order a new blade weldment, you must order the new 4" shoe (01-9414) to assure proper operation.

1шт.

1-9414

SHOE (4" sq. tube)

2шт.

5

19-934

PIN

CLEVIS PIN (use w/38-849)

2шт.

19-414

BOLT,Hex, 1" - 14 x 6", Gr 5

CAPSCREW (use w/01-9414) (replaces 19-5567)

2шт.

Old part number can be used for all models, but order new part number when stock is depleted.

1шт.

6

19-5399

PIN

HAIR PIN (use w/19-934 & 19-5567)

2шт.

19-98

NUT,1"-14, G5

(use w/ 19-414)

2шт.

7

19-5397

BOLT

PLOW BOLT, 5/8 x 1-3/4 NC

1шт.

8

19-120

LOCK WASHER,5/8"

5/8"

1шт.

9

451411

NUT, 5/8 NC

1шт.
