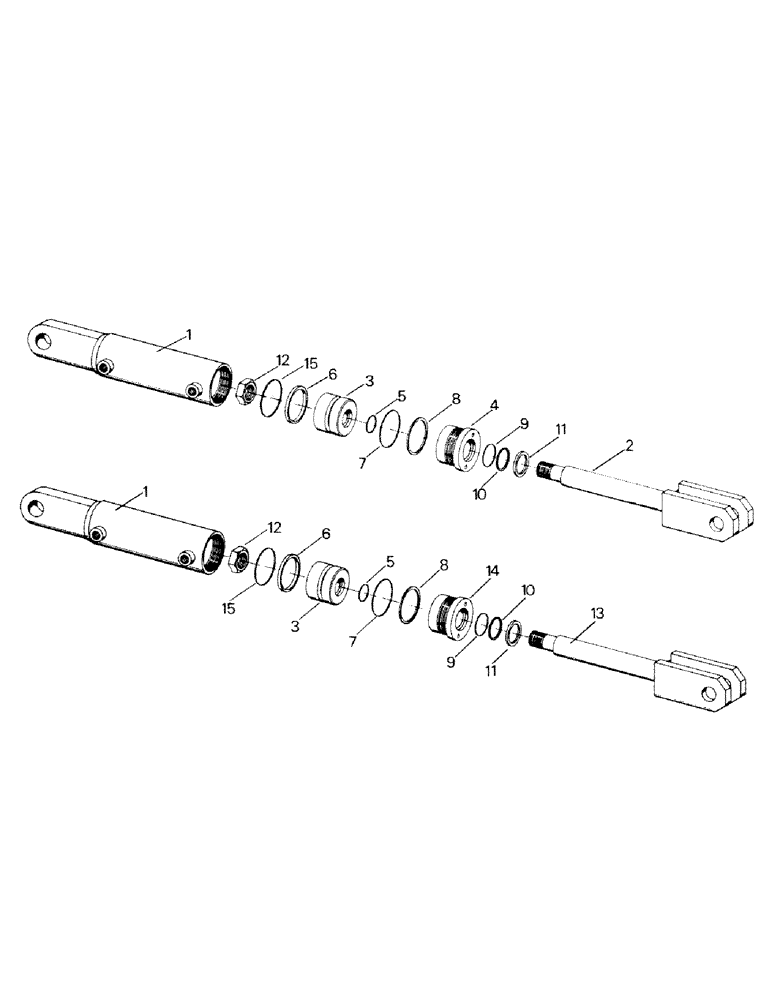

Запчасти Case IH ST210 (10-03) - 3-PT. HITCH COMPONENTS Options & Miscellaneous

18-1152

CYLINDER

ASSEMBLY, consists of ref. nos. 1-12

1шт.

Old part number can be used for all models, but order new part number when stock is depleted.

1шт.

Seal Kit for both 01-4194 and 18-1152 cylinders is P/N 18-1186. Kit includes ref. 5-11 & 15. This figure contains a complete service breakdown of both the 01-4194 and 18-1152 cylinder assemblies. Be sure to check the cylinder for the correct P/N before ordering specific parts.

1шт.

1

18-1159

CYLINDER

SHELL ASSEMBLY

1шт.

2

18-1162

ROD

ASSEMBLY

1шт.

3

18-1160

PISTON

1шт.

4

18-1161

GUIDE, rod

1шт.

5

NSS

NOT SOLD SEPARAT

O-RING

1шт.

6

NSS

NOT SOLD SEPARAT

SEAL, piston

1шт.

7

NSS

NOT SOLD SEPARAT

O-RING

1шт.

8

NSS

NOT SOLD SEPARAT

WASHER, backup

1шт.

9

NSS

NOT SOLD SEPARAT

O-RING

1шт.

10

NSS

NOT SOLD SEPARAT

WASHER, backup

1шт.

11

NSS

NOT SOLD SEPARAT

WIPER

1шт.

12

19-98

NUT,1"-14, G5

1шт.

1-4194

CYLINDER

ASSEMBLY (includes ref. 13-16, 1, 3, 5, 6, 7, 8, 9, 10, 11)

1шт.

Old part number can be used for all models, but order new part number when stock is depleted.

1шт.

13

1-4245

ROD

ASSEMBLY

1шт.

14

1-4244

GUIDE

rod

1шт.

15

18-1171

SEAL

O-RING

1шт.

18-1186

SEAL

KIT, ref. 5-11 & 15

1шт.
